10-Core Control Cable (BKCPJ) & Connectors

To help engineers and procurement professionals with equipment wiring and maintenance, we have compiled the specifications, models, and maintenance purchasing guide for the OTC Daihen extension connection cables between the welding machine and the wire feeder—the 10-core control cable (BKCPJ series).

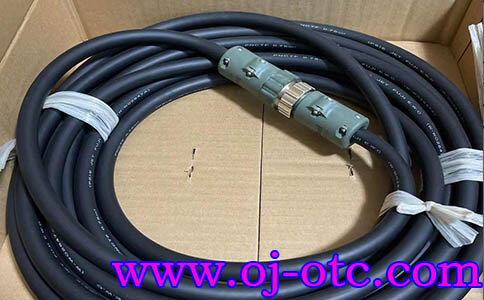

1. Visual Guide to the 10-Core Control Cable (BKCPJ Series)

This series of cables offers four different length options with identical connector specifications at both ends, allowing flexible configuration based on your actual workstation distance.

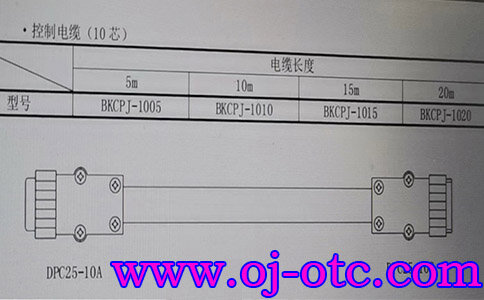

2. Cable Specifications & Connector Models Quick Reference

3. Maintenance & Individual Replacement Guide

In actual use, if the main wiring harness of the cable remains intact but only the connectors (plug or socket) at the ends are damaged, have broken pins, or suffer from poor contact, you can purchase the connector components separately for replacement. This helps save on the cost of replacing the entire cable:

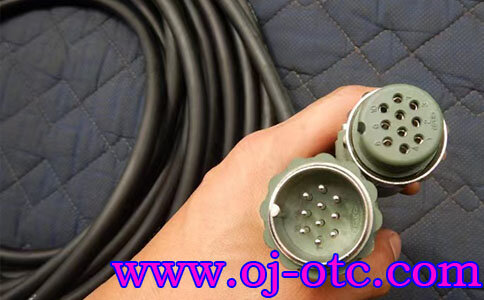

• 10-Pin Plug (Male): Model DPC25-10A, OTC order part number 100-1381
• 10-Pin Socket (Female): Model DPC25-10C, OTC order part number 100-1685

4. Purchasing Original Parts & Technical Support

As an authorized distributor, we promise to provide 100% genuine original parts. Whether you need the entire cable or individual aviation plugs, we have them in stock, supported by professional maintenance engineers offering technical guidance for wiring.
