To help engineers and procurement professionals quickly locate and verify items, we have compiled a detailed exploded view diagram and specification list for the core section of the OTC Daihen AVP360 TIG Welding Machine — the Frame. This list includes 11 essential components such as the inverter transformer, fan, solenoid valve, and printed circuit board (PCB).

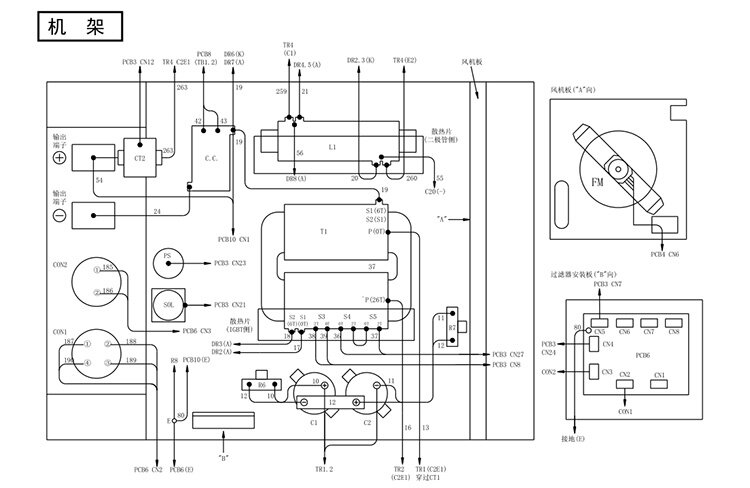

1. Exploded View Diagram of AVP360 Frame
2. Real-Time Quick Search Table for Part Details
This list is highly concise. You can directly cross-reference the Part Symbol from the exploded diagram above and find the corresponding name and order number in the search box or table below:
| Part No. / Order No. | Symbol | Part Name | Specification |
|---|---|---|---|
| C0111B00 | T1 | Inverter Transformer | C0111B00 |
| C0111D00 | L1 | DC Reactor | C0111D00 |
| 4511-251 | C1,2 | Aluminum Electrolytic Capacitor | W-W02212 |
| 100-0104 | FM | Fan / Blower | SF-200-10-4D |
| W-W05048 | FM | Fan Blade | W-W05048 (Φ250) |
| 300-0030 | FM | Starting Capacitor | CPMS45B205JWF |
| C0111C00 | C.C. | Coupling Coil | C0111C00 |
| 4255-016 | PS | Pressure Switch | W-W00032B |
| 300-0108 | SOL | Solenoid Valve | DF2-B(DC24V) |
| 4509-825 | R6,7 | Cement Resistor | 20SH 15kΩKA |
| P10307T | PCB6 | Printed Circuit Board (PCB) | P10307T00 |
