To help engineers and procurement personnel quickly search and verify, we have meticulously compiled all core part models, names, and specifications for the OTC Daihen Plasma Cutting Torch CT-75 and CT-80. (Note: The CT-80 model is commonly used in the Chinese market, while the CT-75 model is mostly used overseas; the core parts of both are essentially fully interchangeable.)
This list has highly integrated the “torch head” and “torch tail” components from the original manual to provide you with a one-stop parts quick search experience.
I. CT-75 / CT-80 Parts Exploded View Diagram
If you are unsure of the exact name of the required accessory, you can first refer to the full and partial configuration diagrams below to find the specific location and corresponding serial number of the part, and then search for the Part No. in the table:

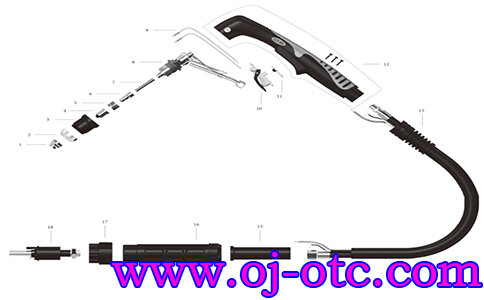

CT-75/CT-80 Full Torch Exploded View Diagram

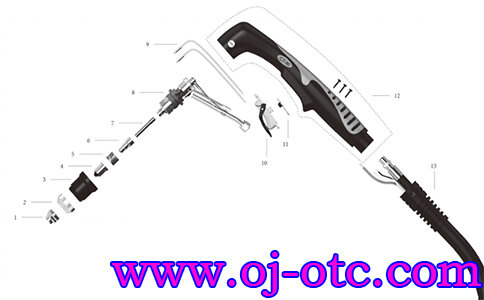

Torch Head Details

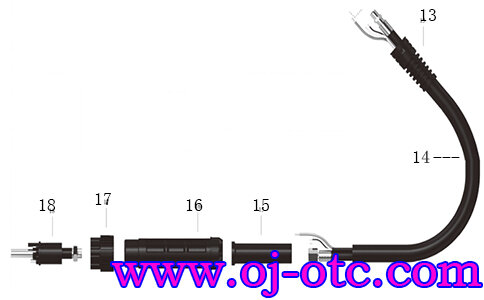

Torch Tail Details
II. Spare Parts Real-Time Search Table (Head + Tail)
You can directly enter the Part No., No., or Name in the search box below, and the table will automatically filter the required parts for you:
| Part No. (Order No.) | Drawing No. | Name & Specifications |
|---|---|---|
| NCV2055 | 1 | Shield Cup |
| NCV2054 | 2 | Shield Cup Body (Retaining Cap) |
| NPC0108 | 3 | Outer Nozzle |
| NPD0113-10 | 4 | Electrode Nozzle (Tip) (50A) |
| NPD0113-12 | 4 | Electrode Nozzle (Tip) (70A) |
| NPD0113-14 | 4 | Electrode Nozzle (Tip) (80A) |
| NPE0112 | 5 | Swirl Ring |
| NPR0113 | 6 | Electrode |
| NFH0647 | 7 | Gas Diffuser |
| NPF0135 | 8 | Torch Head Body |
| NBX0496A | 9 | Spring Pin |
| NBX5833CH | 10 | Trigger (Orange-Black) |
| NBX0628 | 11 | Trigger Button |
| NBW0345OTC | 12 | Two-Color Handle |
| NBW0081 | 13 | Handle Locking Sleeve |
| NPH0130 | 14 | Cable Assembly (6m) |
| NCY0002 | 15 | Rear Tail Sleeve (Rubber Boot) |
| NBW0195 | 16 | Rear Torch Housing |
| NBW0174 | 17 | Central Plug Lock Nut |
| NFY0018G | 18 | Central Plug |
| NTP0046 | 19 | Handle Assembly (Includes No. 9+10+11+12+13) |
*Purchasing Tip: The Electrode (NPR0113) and Nozzle (NPD0113 series) are high-frequency consumables. It is recommended to purchase them in sets to ensure optimal cutting performance.
III. Genuine Parts Procurement & Technical Support
The high-temperature arc of plasma cutting causes extreme wear and tear on front-end consumables. Using genuine original electrodes, nozzles, and swirl rings can significantly improve the arc ignition success rate, extend consumable life, and ensure the smoothness of the cut. We guarantee to provide 100% genuine original parts and keep ample stock to support your production needs.
