To help engineers and procurement personnel quickly search and verify, we have meticulously compiled all core part models, names, and specifications for the OTC Daihen Genuine AW18 Water-Cooled TIG Welding Torch. This list has highly flattened and integrated the universal parts, 4m dedicated parts, and 8m dedicated parts from the original manual. We have also professionally corrected scan typos (such as standardizing “Inner Diameter 11” to “ID Φ11”) to ensure the rigor and accuracy of the data.

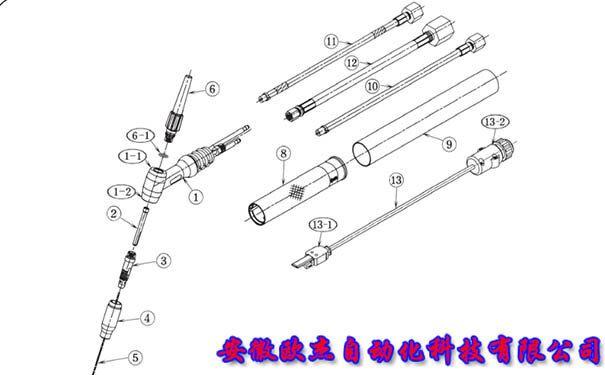

I. AW18 Parts Exploded View Diagram
If you are unsure of the exact name of the required accessory, you can first refer to the configuration diagram below to find the specific location and corresponding symbol of the part, and then search for the Order No. in the table:
II. AW18 Spare Parts Real-Time Search Table (Including 4m/8m)
You can directly enter the Part No. (Order No.), No., or Specification (e.g., 4m or Universal) in the search box below, and the table will automatically filter the required parts for you:
| Part No. (Order No.) | Drawing No. | Name | Applicable Spec & Remarks |
|---|---|---|---|
| H950J00 | 1 | Torch Body | Universal (Includes 1-1, 1-2) |
| H500B04 | 1-1 | Insulator | Universal |
| H500B05 | 1-2 | Shield Cap | Universal |
| H950C07 | 2 | Collet (3.2) | Universal (Copper tube, 2-split) |
| H950C17 | 3 | Collet Body (3.2) | Universal (Copper tube) |
| H21B22 | 4 | Nozzle (No.7) | Universal (ID Φ11) |
| 0870-032 | 5 | Ceriated Tungsten Electrode | Universal (3.2 × 150mm) |
| H83C00 | 6 | Long Back Cap | Universal (Includes 6-1) |
| 3570-007 | 6-1 | O-Ring | Universal |
| H950E01 | 8 | Torch Handle | Universal |
| H950E02 | 9 | Cable Cover / Boot (4m) | 4m Dedicated |
| H951E02 | 9 | Cable Cover / Boot (8m) | 8m Dedicated |
| H950F00 | 10 | Gas Hose (4m) | 4m Dedicated |
| H951F00 | 10 | Gas Hose (8m) | 8m Dedicated |
| H950G00 | 11 | Cooling Water Hose (4m) | 4m Dedicated |
| H951G00 | 11 | Cooling Water Hose (8m) | 8m Dedicated |
| H21E00 | 12 | Torch Power Cable (4m) | 4m Dedicated |
| H223E00 | 12 | Torch Power Cable (8m) | 8m Dedicated |
| K1108A00 | 13 | Torch Switch Assembly (4m) | 4m Dedicated (Includes 13-1, 13-2) |
| K1109A00 | 13 | Torch Switch Assembly (8m) | 8m Dedicated (Includes 13-1, 13-2) |
| K1108C00 | 13-1 | Switch Body Assembly | Universal (4m/8m) |
| 4730-001 | 13-2 | Connector Plug | Universal (4m/8m) |
*Note: The rows highlighted in yellow are universal electrical connectors applicable to different cable lengths.
III. Genuine Parts Procurement & Technical Support
The high-frequency usage characteristics of the AW18 water-cooled TIG welding torch determine that collets, nozzles, tungsten electrodes, and cooling water hoses are core consumables prone to wear. Regularly replacing them with genuine original consumables can significantly reduce the risk of water and gas leaks and improve TIG welding quality. We guarantee to provide 100% genuine original parts and keep ample stock to ensure your operations run smoothly.
