To help engineers and procurement personnel quickly search and verify, we have meticulously compiled all core part models, names, and specifications for the OTC Daihen WT3510SBD Manual Welding Torch. This list has been professionally proofread to correct scan errors from the original manual (such as mistaking the “O-ring” for a “0-ring”) to ensure rigorous and accurate data.

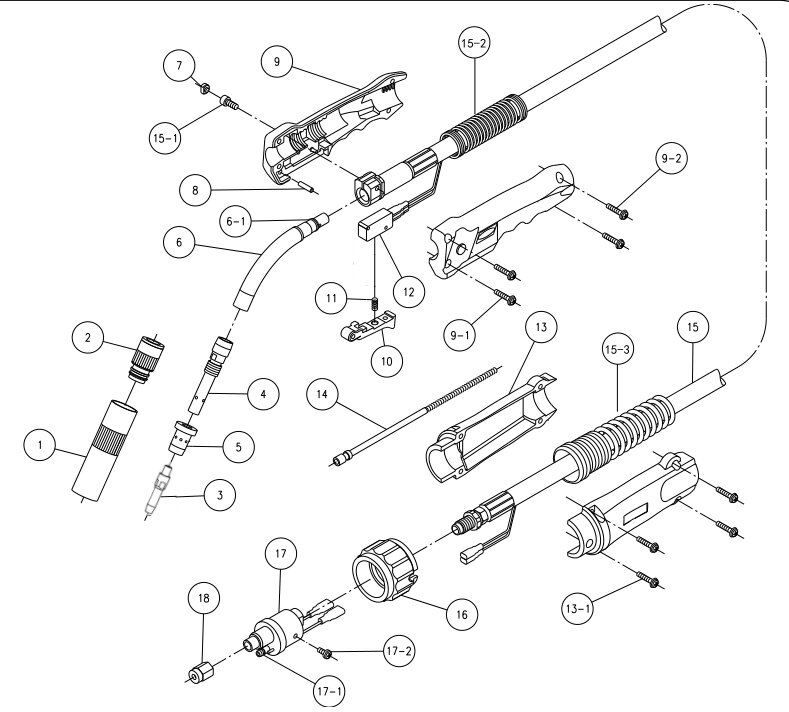

I. WT3510SBD Parts Exploded View Diagram
If you are unsure of the exact name of the required accessory, you can first refer to the configuration diagram below to find the specific location and corresponding symbol of the part, and then search for the Order No. in the table:
II. Spare Parts Real-Time Search Table
You can directly enter the Part No. (Order No.), Symbol, or Name in the search box below, and the table will automatically filter the required parts for you:
| Part No. (Order No.) | Symbol | Name | Specifications |
|---|---|---|---|
| KA3116 | ① | Nozzle | ID 16mm |
| KE3001 | ② | Insulator | — |
| K980C26 | ③ | Contact Tip | 1.2mm |
| DF3211 | ④ | Tip Body | — |
| KD3001 | ⑤ | Gas Diffuser | — |
| DF3255 | ⑥ | Torch Body | R70, 55° |
| Q508015S | ⑥-1 | O-Ring | 8 X 1.5 |
| U5341G01 | ⑦ | Insulation Cap | — |
| Q440418 | ⑧ | Parallel Pin | — |
| U10087P00 | ⑨ | Torch Handle (with screws) | — |
| Q210420 | ⑨-1 | Pan Head Screw | M4 X 20 |
| Q210416 | ⑨-2 | Pan Head Screw | M4 X 16 |
| U10087C01 | ⑩ | Trigger | — |
| Q60512 | ⑪ | Spring | — |
| Q711 | ⑫ | Microswitch | — |
| U10087K00 | ⑬ | Cable Clamp (with screws) | — |
| Q210416 | ⑬-1 | Pan Head Screw | M4 X 16 |
| DR3212-3 | ⑭ | Liner | Length 3.0m (For 1.0-1.2mm) |
| DR3212-4.5 | ⑭ | Liner | Length 4.5m (For 1.0-1.2mm) |
| DR3212-6 | ⑭ | Liner | Length 6.0m (For 1.0-1.2mm) |
| DL3030 | ⑮ | Power Cable (incl. ⑮-1) | Length 3.0m |
| DL3045 | ⑮ | Power Cable (incl. ⑮-1) | Length 4.5m |
| DL3060 | ⑮ | Power Cable (incl. ⑮-1) | Length 6.0m |
| Q250516 | ⑮-1 | Hex Socket Bolt | M5 X 16 |
| DS3101 | ⑮-2 | Spring Guard | — |
| DS3201 | ⑮-3 | Spring Guard | — |
| DP3001 | ⑯ | Connection Nut | — |
| DU3001 | ⑰ | Connector Body | — |
| Q531518 | ⑰-1 | O-Ring | 3.15 X 1.8 |
| Q210406 | ⑰-2 | Pan Head Screw | M4 X 6 |
| DU3013 | ⑱ | Liner Nut | — |
*Note: Specifications marked with “—” in the table indicate that the original part is a standard component or requires no specific parameter description. Please purchase directly according to the Part No.
III. Genuine Parts Procurement & Technical Support
For highly frequently used manual welding torches, consumables such as contact tips, nozzles, insulators, and liners are easily worn out. Regularly replacing them with genuine original consumables can significantly reduce wire feeding resistance and improve welding quality. We guarantee to provide 100% genuine original parts and keep ample stock.
