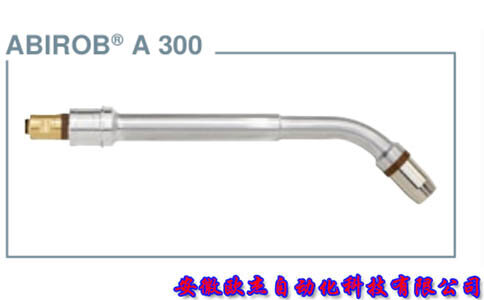

Abicor Binzel ABIROB® A300 Compact Air-Cooled Robotic MIG Torch
The Abicor Binzel ABIROB® A300 is an agile, ultra-lightweight air-cooled robotic MIG/MAG torch designed for cost-effective automation and complex joint accessibility. Rated at 300 Amperes, its compact profile allows robotic arms to effortlessly navigate intricate welding fixtures and tight internal angles that bulky water-cooled torches cannot reach. By shedding liquid cooling circuits, it maximizes robot acceleration and wrist longevity while utilizing precision CuCrZr consumables for consistent, defect-free welds.

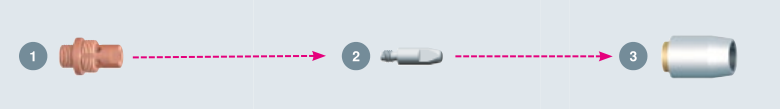

⚙️ Detailed Consumables & Part Number Matrix
| Torch Neck Configuration | Binzel Part Number |
|---|---|
| 45° Standard Original Torch Neck | 980.1146.1 |
| Tip Adapter Material & Thread | Binzel Part Number |
|---|---|
| M6 Thread High-Conductivity Copper Adapter | 142.0171 |
| Wire Ø (mm) | Binzel M6 Contact Tip Part No. |
|---|---|
| Ø 0.8 mm | 147.0054 |
| Ø 0.9 mm | 147.0172 |
| Ø 1.0 mm | 147.0245 |
| Ø 1.2 mm (Standard Heavy-Duty) | 147.0382 |
| Ø 1.4 mm | 147.0519 |
| Nozzle Function / Form | Interface Inner Ø A | Exit Inner Ø B | Total Length C | Binzel Part Number |
|---|---|---|---|---|
| Flush | 22 mm | 14.4 mm | 32 mm | 145.0671.5 |
| Stick-Out (+6.0 mm) | 22 mm | 14.4 mm | 29 mm | 145.0677.5 |
🔧 Engineering & Maintenance Guide
- Payload & Acceleration: The ultra-lightweight construction of the A300 dramatically minimizes wear on the robot wrist joint (Axis 6), enabling rapid point-to-point repositioning in high-volume production.
- Spatter Protection: Regularly apply anti-spatter spray to the bottle-form gas nozzle to prevent spatter buildup from obstructing shielding gas flow and causing weld porosity.
- Coaxial Cable Care: Ensure the coaxial power cable is routed smoothly along the robot arm without sharp bends that could restrict shielding gas delivery.
📞 Contact for Global B2B Pricing & Technical Support
Anhui Oujie Automation Technology Co., Ltd. is your authorized supplier for genuine Abicor Binzel robotic welding torches and consumables. We guarantee 100% authentic equipment for your automated production lines.
⚡ Fast global shipping. Genuine guarantee. Professional automation support included.
