Name: 300-0103 Wire Feeder Assembly (FWT-540-A2-OTC) | OTC Feeder Part
Brand: OTC DAIHEN
SKU: 300-0103

OTC Daihen Genuine Core Wire Feeder Assembly 300-0103 (Model: FWT-540-A2-OTC)

300-0103 (Factory Model: FWT-540-A2-OTC) is the official OEM genuine wire feeding powertrain assembly engineered by OTC Daihen for industrial MIG/MAG wire feeders. Serving as the mechanical heart of the wire feeding system, this assembly integrates a high-torque permanent-magnet DC motor, a precision reduction gearhead, an adjustable pressure arm mechanism, and drive roll shafts onto a rigid die-cast industrial frame. It maintains exceptional mechanical rigidity under heavy shop workloads. Re-equipping your equipment with a genuine 300-0103 assembly eliminates wire stuttering, erratic feeding speeds, arc burnback, and motor burnout, providing continuous, powerful wire traction for demanding automated and manual welding lines.

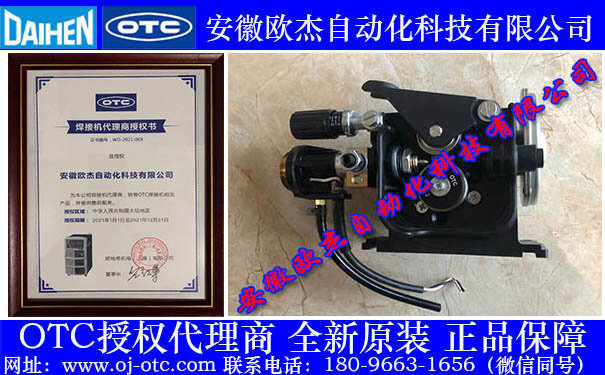

OTC Daihen Genuine Wire Feeder Assembly 300-0103 Front View — Figure 1: Overall Mechanical Structure of Genuine OTC Wire Feeder Assembly 300-0103 (FWT-540-A2-OTC)

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Order Number	300-0103
Assembly Nameplate Model	FWT-540-A2-OTC
Product Type	Wire Feeder Core Powertrain Assembly
Compatible Models	Widely compatible with OTC Industrial MIG/MAG Wire Feeders
Integrated Components	High-torque DC motor, reduction gearhead, pressure arm, guide base
Quality Guarantee	100% genuine OEM assembly; smooth, quiet, high-torque traction

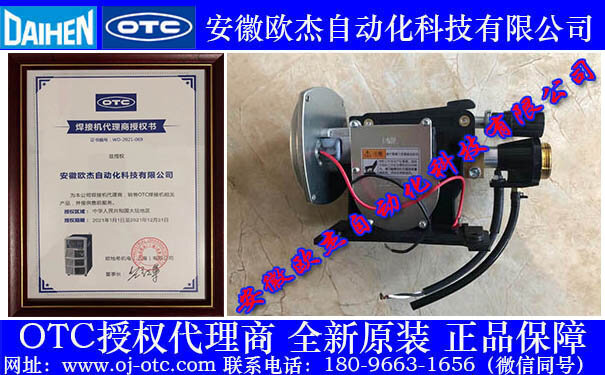

OTC Wire Feeder Assembly 300-0103 Side View — Figure 2: Heavy-Duty Pressure Arm Linkage and Precision Reduction Gearhead on 300-0103

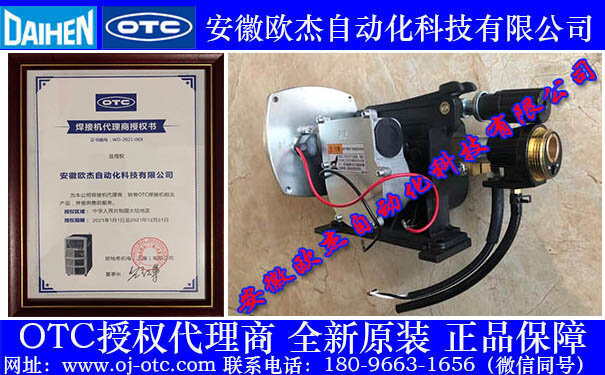

OTC Wire Feeder Assembly 300-0103 Terminals — Figure 3: Secure, Vibration-Proof DC Motor Power Supply Terminals on 300-0103

🔧 On-Site Installation & Powertrain Maintenance Guide (Essential Reading)

Prevent Stalled Motor Burnout: Premature assembly failure is most often caused by clogged torch conduits or over-tightened pressure arm nuts! Extreme radial drag forces the motor to operate stalled, stripping reduction gears and burning out copper windings. Always inspect and clean wire conduit liners when installing a new assembly.
Concentric Alignment: Tighten base mounting screws diagonally and evenly when installing 300-0103. Tilted mounting misaligns feed roll grooves with wire guide tubes, scraping copper plating off wires and clogging torches with copper dust.
No Gearbox Solvent Spraying: OEM reduction gearboxes are factory-lubricated with high-temperature synthetic grease. Never spray penetrating oil, rust inhibitors, or standard motor oil into gearboxes or motors! Oils attract conductive iron dust, shorting commutators and destroying motors.
Polarity Verification: Observe correct positive/negative terminal polarity when wiring the motor; reverse wiring reverses wire feed direction (wire retraction). Tighten terminal nuts securely to prevent high-resistance heating.
