CPVS500 IGBT Inverter Controlled Welder

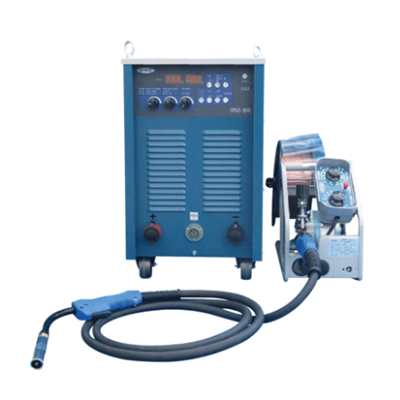

OTC DAIHEN CPVS500 IGBT Inverter Controlled CO₂/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN CPVS500 is a classic IGBT inverter controlled MIG/MAG welding machine highly acclaimed in general mechanical fabrication and heavy steel structure industries. This equipment eliminates tedious parameter trial-and-error by introducing an extremely user-friendly “Synergic Automatic Voltage Matching” system. Its robust 500A output and heavy-industrial 60% duty cycle, paired with the rugged and durable CM-9202 factory wire feeder, grant it exceptional stability and superior cost-effectiveness during continuous carbon steel welding of medium-to-thick plates.

🌟 Core Inverter Advantages & Synergic Operation Selling Points

• Synergic Automatic Voltage Matching System: Parameter adjustment is often the greatest pain point for less-experienced welders. The CPVS500 integrates smart calculation curves; operators only need to adjust the current knob based on plate thickness, and the system automatically calculates and outputs the perfect matching voltage. This achieves optimum arc striking conditions immediately, completely eliminating excessive spatter and lack of fusion caused by voltage mismatch.
• IGBT Inverter Soft-Switching Control: Compared to traditional thyristor equipment, IGBT modules provide higher-frequency current feedback response. This renders the welding arc softer and maintains smooth, stable droplet transfer across the entire output spectrum, from low-current thin-plate tack welding to 500A extreme heavy-duty deep-penetration welding.
• Powerful Arc Ignition & High Load Endurance: A high no-load voltage of up to 64V equips the machine with superior arc striking penetration, enabling smooth ignition even on lightly rusted base metals. The solid 51.2kg chassis houses high-redundancy cooling ducts, ensuring long-term stable operation at a 60% rated duty cycle.

📋 CPVS500 Core Technical Specifications & Standard Configuration Matrix

Below is the rigorously restructured electrical, physical parameter, and consumable kit configuration table (strictly adhering to factory specifications):

🔧 IGBT Inverter Synergic Welding Machine Workshop Calibration & Troubleshooting Guide

• Gas & Wire Diameter Matching Rule for Synergic Mode: The “Synergic Voltage Matching” function operates on an internal database of rigorous curves. Before commencing welding, you must ensure the toggle switches on the control panel (Wire Diameter 1.0/1.2, Gas Type CO2/MAG) match your actual consumables exactly! If using argon-rich mixed gas while the panel switch is set to 100% CO2, the automatically matched voltage will be significantly higher than required, causing violent spatter and abnormally shallow penetration.
• Slippage Prevention for the CM-9202 Wire Feeder: While the CM-9202 is a field-proven, durable wire feeder, prolonged exposure to dusty environments can cause shed copper shavings from the wire surface to accumulate inside the U/V grooves of the feed rolls. Once impacted, this causes wire feeding slippage. Operators often incorrectly respond by “over-tightening the pressure roll knob to the limit,” which fails to solve the issue and scrapes or crushes the wire liner, ruining it completely. When wire feeding becomes erratic, the first step is always to disconnect power and use a wire brush to clean copper scale from the feed roll grooves.
