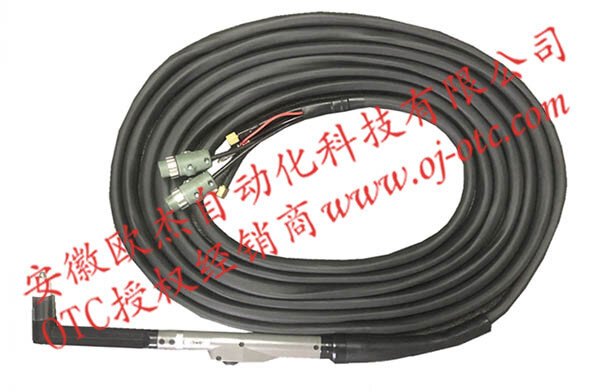

Original OTC DAIHEN 120A Long-Handle Plasma Cutting Torch CTZW-1201 Series
CTZW-1201 / CTZWM-1201 / CTZWL-1201 series is a premium line of genuine Japanese-imported handheld plasma cutting torches custom-engineered by OTC DAIHEN for its heavy-duty 120A plasma cutting machine, the D12000. Capable of carrying up to 120A of cutting current, this torch series effortlessly slices through thick, high-strength structural steel and stainless steel plates. To counteract intense thermal radiation generated by high-current arcs, the CTZW series features an ergonomic extended curved handle design. This keeps operator hands safely away from extreme temperatures, significantly reducing operational fatigue and burn hazards during prolonged cutting shifts. Furthermore, available in 10m, 20m, and 30m cable configurations, it provides cutting operators with an expansive working radius—making it the ultimate heavy-duty cutting tool for shipyards, structural steel fabrication, and scrap metal dismantling.
✨ Core Technical Advantages of CTZW-1201 Series
⚡ 120A Extreme Cutting Power & High Precision
Engineered to harness the massive output of the D12000 power source. Paired with precision-machined OTC DAIHEN OEM electrodes and nozzles, the torch produces a highly concentrated, perpendicular plasma arc column at 120A, achieving rapid severing of thick plates with smooth cut surfaces and minimal dross attachment.
🛡️ Ergonomic Extended Curved Handle for Thermal Protection

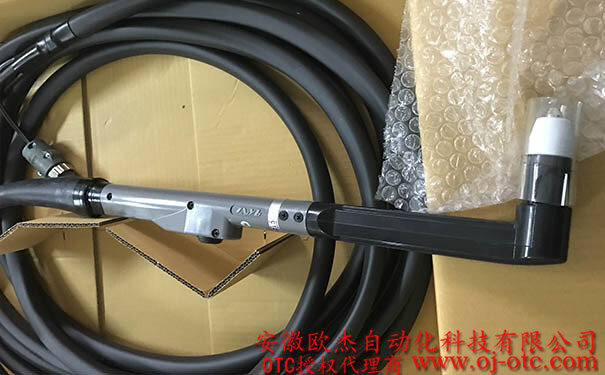

Compared to standard short-handle torches like the CTW series, the CTZW utilizes an extended curved grip. This ergonomic geometry aligns naturally with wrist angles while positioning the operator’s hands further back, thoroughly isolating them from intense thermal radiation and flying molten slag.
📏 30-Meter Working Radius Coverage
To resolve equipment mobility constraints in massive shipyards and heavy steel workshops, the series offers the CTZWL-1201 with an ultra-long 30-meter cable assembly. Protected by a rugged, abrasion- and scorch-resistant outer sheath, the cable withstands continuous dragging across rough steel plates while ensuring stable gas and electrical transmission.
📋 Technical Specifications & Model Matrix
| Specification Attribute | Detailed Parameter / Corresponding Model |
|---|---|
| Rated Cutting Current / Compatible Machine | 120 A / OTC DAIHEN D12000 Plasma Cutting Machine |
| Torch Profile | Curved Type / Extended Thermal Protection Handle |
| 🔹 10 m Standard Model (Approx. 9.5 kg) | CTZW-1201 |
| 🔹 20 m Extended Model (Approx. 9.5 kg) | CTZWM-1201 |
| 🔹 30 m Ultra-Long Model (Approx. 14.0 kg) | CTZWL-1201 |
Note: For detailed part numbers of copper electrodes, nozzles, and swirl rings, please contact our technical support team for the complete exploded diagram manual.
🛠️ Heavy-Duty Plasma Torch Maintenance & Troubleshooting Guide (Essential Reading)
- Voltage Drop Challenges with Ultra-Long Cables: When utilizing 20m or 30m CTZWL-1201 torches, verify that workshop input power supply voltage is stable and sufficient. Ultra-long cables introduce line resistance and voltage drops; low input voltage can impair high-frequency arc initiation (manifesting as weak sparks without forming a main cutting arc). Keep cables as straight as possible during operation and avoid coiling them into tight loops, which increases inductance.
- Devastating Impact of Moisture in Compressed Air: 120A heavy-duty plasma cutting demands ultra-dry compressed air. If air compressor refrigerated dryers fail, moisture and oil enter the high-temperature arc directly. Moisture triggers violent internal arc explosions, carving deep cavities into brand-new electrodes or blowing out nozzles within minutes! Over 90% of rapid consumable failures are caused by wet air supplies.
- Electrode Wear Limit Deadlines: Consumable wear accelerates at 120A. The embedded hafnium (Hf) core erodes with each arc strike, forming a cavity. Replace the electrode immediately once pit depth reaches 1.5mm to 2.0mm! Never force cutting beyond this limit; once the hafnium depletes, the arc melts the copper electrode body, causing high-voltage electricity to puncture and destroy the torch head insulation.
- Shield Cup Interlock System Lockout: If pulling the trigger produces no response and lights a machine fault LED after consumable replacement, inspect whether the outer ceramic shield cup is securely tightened. The internal safety micro-switch requires full mechanical depression by the shield cup before enabling high-voltage arc initiation; never bypass this safety circuit.
📞 Genuine OEM Parts · Global Shipping
Anhui Oujie Automation Technology Co., Ltd. is an authorized OTC DAIHEN distributor. We guarantee 100% brand-new, genuine OTC DAIHEN CTZW-1201 long-handle torch assemblies and durable OEM consumables, firmly rejecting inferior aftermarket parts prone to arc explosions!
✅ Fast global delivery with free expert technical guidance on compressed air moisture inspection and long-cable voltage drop troubleshooting.
