DA350P AC/DC Pulse TIG Welder

OTC DAIHEN DA350P Full-Digital Inverter AC/DC Pulse TIG Welding Power Source In-Depth Technical Analysis

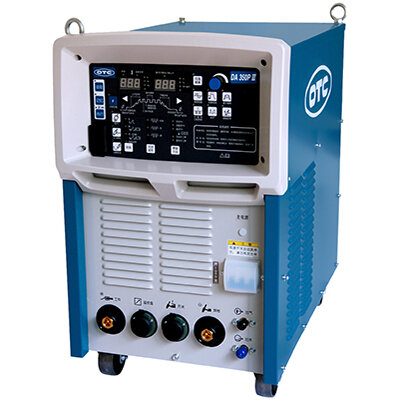

The OTC DAIHEN DA350P (Power Source Model: DA-350P / S-3) is a flagship full-digital inverter AC/DC pulse TIG welding machine engineered by OTC DAIHEN. Utilizing advanced full-digital inverter control technology, this equipment integrates multiple operating modes into a single host: DC TIG, AC TIG, AC/DC Hybrid TIG (MIX TIG), and Manual Metal Arc (MMA) stick welding. Whether joining precision 0.5mm ultra-thin metal sheets or executing heavy root passes on 10mm medium plates, the DA350P delivers rock-solid penetration, exceptional arc stability, and aesthetic fish-scale weld appearance across diverse industrial applications.

🌟 Core Technical Advantages & Process Selling Points

• Full-Digital Inverter Control: Delivers lightning-fast arc response and pinpoint thermal input regulation, adapting perfectly to specialized metals including alloy steel, aluminum, magnesium, titanium, and copper.
• Ultra-Wide Frequency Modulation: AC frequency is steplessly adjustable from 30 to 200Hz, while DC pulse frequency spans 0.1 to 500Hz. This constricts arc cone density, ensuring controllable weld pool penetration and dramatically reducing burn-through risks on thin sheets.
• Deeper Penetration at Identical Amperage: Advanced waveform modulation accelerates wire melting rates during filler welding, boosting deposition efficiency while saving shielding argon gas and welding consumables.
• 100% Duty Cycle at 220A: Engineered for continuous industrial workloads, the machine maintains rock-solid output without overheating during prolonged long-seam welding on medium and thick assemblies (rated 40% at the 350A peak limit).
• Automatic Tungsten Electrode Shaping: Upon high-frequency or contact arc ignition, internal algorithms automatically condition and optimize the tungsten electrode tip profile, stabilizing arc ignition and minimizing electrode consumption.
• On-the-Fly Current Fine-Tuning: Operators adjust welding current in real time while the arc is actively burning without stopping the machine, mastering variable-thickness joints and uneven assembly gaps effortlessly.
• 100-Group Parameter Memory: Saves up to 100 customized sets of welding conditions for instant one-touch recall, enabling rapid changeovers during multi-variety, small-batch production runs.

🏭 Typical High-End Manufacturing Applications

Delivering versatile AC/DC output and superior arc quality, the DA350P serves across demanding fabrication sectors: aerospace structural assemblies, rail transit aluminum alloy car bodies, automotive lightweight components, precision instrumentation, chemical storage vessels, and high-end mold repair.

📋 DA350P Official Core Technical Specifications Table

Below is the detailed physical and electrical parameter matrix covering the machine’s multi-process output capabilities, rigorously unit-decoupled (strictly adhering to factory calibrations):

🔧 DA350P Digital AC/DC TIG Welder Field Maintenance & Calibration Guide

• Water-Cooling Interlock Discipline for AWD-18 Torches: Shipping standard with the AWD-18 high-capacity water-cooled TIG torch, the DA350P relies entirely on circulating coolant to dissipate extreme thermal loads during 350A welding. You must connect an independent OTC recirculating water cooler and wire the coolant flow sensor into the welder interlock loop! Never strike an arc without verified water circulation; operating dry at high amperage melts internal copper power conductors within minutes and ruins the torch assembly.
• Harnessing Automatic Tungsten Shaping in AC Welding: In AC TIG mode, internal algorithms automatically shape the tungsten tip upon ignition. To optimize this feature, use high-quality rare-earth tungsten electrodes (such as ceriated or lanthanated electrodes) ground with a slight flat truncated end rather than a sharp needle point. The machine naturally conditions the tip into a smooth, rounded profile, stabilizing the arc cone and preventing tungsten inclusions in clean aluminum weld seams.
• On-the-Fly Current Fine-Tuning Ergonomics: When executing complex out-of-position welds (vertical or overhead) on variable-section assemblies, take full advantage of the “on-the-fly current adjustment” feature. Operators can micro-tune welding amperage upward or downward directly via the torch trigger switch while the arc is active, ensuring uniform penetration and preventing sag without breaking arc rhythm or returning to the power source host.
