P10265P00 Circuit Board

In-Depth Technical Analysis: Genuine OTC DAIHEN P10265P Main Logic Control PCB for DP400 & DP500 Digital Pulse Welding Machines

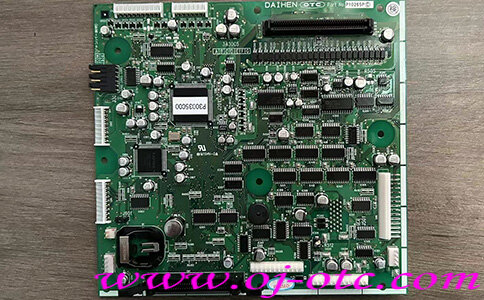

OTC DAIHEN P10265P00 Digital Pulse Main Control PCB (precision silkscreen part number: P10265P) is the central processing brain for classic OTC all-digital pulse MIG/MAG welding machines, specifically the DP400 and DP500. As the core control engine of these high-performance inverter power sources, this mainboard manages high-precision pulse waveform modulation, wire feeding closed-loop feedback, and full-dimensional system fault monitoring. When welding power sources suffer unexpected freezes, zero weld output, parameter regulation failures, or severe control panel communication alarms, replacing this OEM mainboard is the ultimate engineering solution to eliminate electrical system faults and restore factory-grade arc control.

🔍 Digital Pulse Control Architecture & Heavy-Industrial Protection Advantages

• OEM Traceability (Part No. P10265P = P10265P00): The silkscreen marking P10265P on the PCB front surface corresponds directly to ordering assembly code P10265P00 in OTC’s global spare parts catalog. Equipped with specialized high-speed DSP processing chips and multi-layer immersion gold traces, the board executes microsecond-level waveform adjustments during rapid droplet transfer welding to suppress spatter and ensure smooth arc ignition.
• Heavy-Industrial Conformal Coating Protection: Heavy manufacturing workshops frequently contain airborne metallic dust, grinding iron debris, and high humidity. Genuine P10265P00 boards undergo deep flame-retardant conformal coating treatment at the factory, forming a protective barrier across SMD pin terminals. This prevents static adsorption and creepage arcing, eliminating localized short circuits caused by conductive shop dust.
• Optoelectronic Isolation & Surge Protection Matrix: Because industrial welding lines operate alongside high-power crane drives and stamping equipment, the power grid experiences frequent transient voltage surges. P10265P00 incorporates high-density optoelectronic isolation matrices that separate 380V main power inputs and inverter switching noise from sensitive 5V/24V microprocessor circuits, preventing logic lockups and board failure.

🛠 On-Site Replacement Guide & Preventing Capacitor Surge Damage and Repeat Solder Burnout

• 🚨 Critical Safety Rule: Power Off and Fully Discharge Filter Capacitors! When opening the welder chassis cover to replace P10265P00, **technicians must disconnect main workshop power and wait 10 to 15 minutes, or discharge the main filter capacitor bank using a professional discharge resistor!** Residual DC high voltage remaining in filter capacitors can trigger reverse arcing when ribbon cables are disconnected, destroying the microprocessors on the new board instantly.
• Pre-Replacement Peripheral Inspection: If the original mainboard failed due to blown IGBT power modules or main transformer short circuits, **never install the new board and power on immediately!** Technicians must inspect peripheral IGBT modules, fast-recovery diodes, and the main cooling fan for short circuits using a multimeter. Powering up with shorted peripheral components will overload the new PCB’s drive circuit and cause immediate secondary board failure.
• Strict Electrostatic Discharge (ESD) Protection: The PCB incorporates sensitive CMOS integrated circuits. Maintenance personnel must wear a grounded anti-static wrist strap or discharge static electricity against an earthed metal enclosure before removing the board from its anti-static shielding bag. Handle the PCB by its edges and never touch processor pins directly.

• Global Industrial Emergency Dispatch Network: For automated manufacturing facilities experiencing welder system freezes or board failures, we provide fast worldwide express dispatch of genuine replacement PCBs and remote technical guidance to restore production rapidly.
