RTW5000H Welding Torch

OTC DAIHEN Genuine High Duty Cycle Heavy-Duty Robotic Water-Cooled Welding Torch RTW5000H In-Depth Analysis

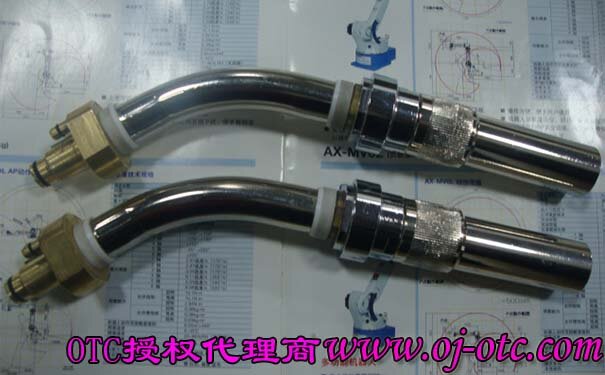

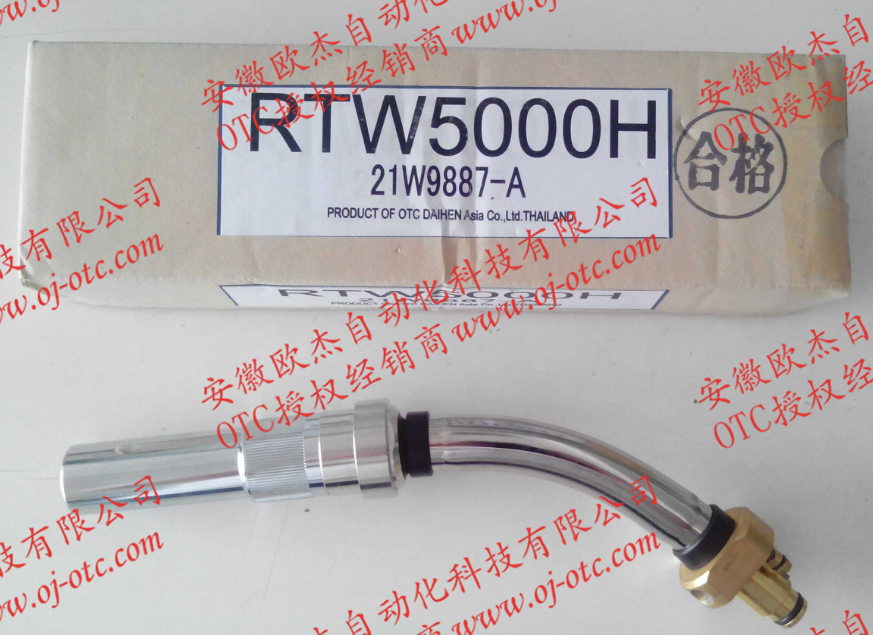

OTC DAIHEN RTW5000H Robotic 500A Water-Cooled Welding Torch is an industrial automated arc welding torch assembly custom-engineered for heavy industrial manufacturing sectors (such as thick-plate structural steel fabrication, heavy construction machinery, shipbuilding, and high-pressure vessel manufacturing) characterized by continuous heavy-current and 100% high duty cycle (Duty Cycle) demands. Operating under 500A continuous welding currents, conventional air-cooled torches suffer from severe thermal softening, rapid contact tip wear, and tube structural warping. The authentic Japanese imported RTW5000H integrates an advanced internal water-cooling circulation system that delivers high-efficiency cooling directly to the front-end nozzle and contact tip base. This suppresses extreme arc thermal radiation, eliminating wire feeding hesitation, preventing tip burn-back, and maintaining rigid tool center point (TCP) trajectory repeatability across 24/7 automated production operations.

🌟 Direct Front-End Cooling Architecture & 100% Duty Cycle Advantages

• Exclusive Micro-Circulation Front-End Cooling Technology: The RTW5000H incorporates a proprietary internal water cooling loop that extends directly to the front-end nozzle seat and contact tip adapter. High-pressure cooling water circulates continuously through the copper alloy torch body, rapidly extracting heat generated by 500A arc radiation and heavy-current resistance heating. This keeps operating temperatures at the contact tip well below thermal softening thresholds, multiplying consumable service life several-fold and preventing wire jamming caused by thermal expansion.
• 100% Full Duty Cycle Continuous Welding: Engineered specifically for automated robotic cells executing long-pass, deep-penetration welding on thick steel plates, the torch maintains structural rigidity and mechanical hardness under continuous 24-hour full-load operation. The high-dissipation copper alloy swan neck resists thermal deflection, locking the Tool Center Point (TCP) into absolute alignment to prevent weld seam drift across expansive workpieces.
• Modular High-Precision Anti-Oxidation Construction: The outer swan neck is protected by heavy-duty, explosion-proof insulating armor (such as insulating cover L6571C01) that resists hot weld spatter and prevents high-voltage electrical tracking to the robot wrist. Front-end consumables (nozzles, contact tips, and gas diffusers) feature micron-level thread tolerances for rapid, tool-free replacement while achieving airtight sealing to prevent shielding gas turbulence and porosity defects.

🔧 Field Installation, Cooling Water Management & Maintenance Guide

• Strict Cooling Water Quality & Flow Rate Standards: Water-cooled torches depend entirely on uninterrupted cooling water circulation. **Workshops must utilize dedicated industrial cooling water or deionized water with anti-corrosion additives; never use untreated tap water or well water!** Mineral deposits and algae build up rapidly inside micro-cooling channels, restricting flow and causing instant thermal explosion (torch popping) or complete melting of the swan neck under 500A loads. Verify water chiller pressure and return flow rate daily.
• Inspect Insulating Sheaths & Seal O-Rings Periodically: When servicing front-end consumables, check the waterproof insulating cover (L6571C01) and internal rubber O-rings for thermal degradation or cracking. Even hairline cracks in insulating components allow pressurized cooling water to atomize into the arc zone, triggering violent steam expansion explosions that shatter the torch head.
• Utilize Automated Reamer Stations & Anti-Spatter Fluid: Integrate RTW5000H torches with automated cleaning stations (Reamer). High-frequency mechanical reamer clearing combined with scheduled anti-spatter oil spraying prevents spatter accumulation from bridging electrical insulation or obstructing laminar gas flow.

• Expedited Worldwide Dispatch & Maintenance Support: For automated manufacturing plants experiencing welding line halts due to torch damage or water leakage, Anhui Oujie Automation provides rapid international courier dispatch directly from stock to ensure uninterrupted production.
• Complimentary Torch Alignment & Cooling Diagnostics: Procurement clients receive online engineering diagnosis from welding specialists to assist with TCP alignment diagnostics, water chiller parameter setup, and automated reamer station alignment.
