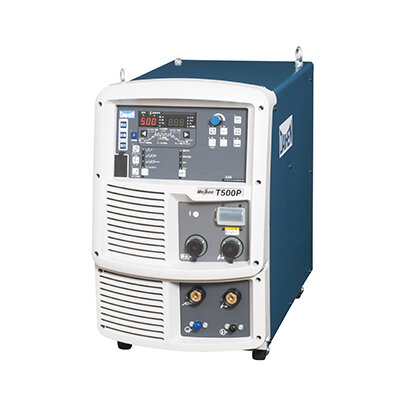

T500P Full-Digital DC Pulse TIG Welder

OTC DAIHEN T500P (Welbee Series) Smart Full-Digital DC Pulse TIG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN T500P (Official Model: WB-T500P) represents the pinnacle of Welbee architecture full-digital smart DC pulse TIG welding machines. Relying on OTC’s proprietary high-speed LSI welding processor (Welbee ASIC), this equipment achieves nanosecond-level arc feedback and precision control. Its most extraordinary capability lies in covering an ultra-wide output spectrum from 2A ultra-low current cold arc tacking up to 500A extreme heavy-duty deep penetration from a single host. This flawlessly masters applications ranging from medical-grade ultra-thin stainless steel tubing to heavy thick-wall pressure vessels. Built-in [Weld Navigation] and [Welding Quality Control] systems drastically reduce reliance on veteran welder intuition, establishing a benchmark power source for aerospace, nuclear piping, and precision instrumentation.

🌟 Core Digital Advantages & Process Selling Points

• 2A Micro-Current Extreme Arc Stability: Leveraging Welbee high-frequency digital inverter calculations, the T500P sustains a rock-solid, drift-free micro-arc at just 2A. This eliminates burn-through and edge undercutting when butt-welding ultra-thin sheets (such as stainless steel or titanium below 0.3mm).
• Smart Weld Navigation System: The control panel houses an expert empirical database. Operators simply input plate thickness, joint geometry, and material type; the processor automatically calculates and recommends optimal current, pulse frequency, and duty cycle parameters for foolproof, top-tier weld formation.
• Full-Lifecycle Welding Quality Management: Network interfaces enable real-time capturing, logging, and transmission of operational current and voltage curves. Whenever arc interruptions or gas shielding anomalies occur, the system triggers immediate warnings, forming the core foundation for traceable digital manufacturing.
• 61kg Lightweight Host with 500A Output: Shatters the heavy, bulky stereotype of legacy 500A TIG welders. Innovative air cooling ducts and digital topology condense host weight to just 61kg while sustaining a 60% heavy industrial duty cycle.

🏭 Typical High-End Manufacturing & Precision Welding Applications

Offering an expansive current adaptability range and premier arc quality, the T500P serves across high-value production lines:

• Aerospace & Defense Manufacturing: Precision pulsed TIG welding of titanium alloy engine casings and specialized alloy pressure vessels demanding stringent thermal input control.
• Pharmaceutical & Semiconductor Clean Piping: All-position single-sided welding with double-sided bead formation on 316L ultra-clean tubing, utilizing 2A ignition to prevent inner wall oxidation.
• Heavy Pressure Vessels & Nuclear Power: Deep-penetration root passes on thick-wall cylinders, followed immediately by high-efficiency capping passes using the machine’s robust 400A MMA stick function.

📋 Welbee T500P Core Technical Specifications & Dual-Mode Matrix

This equipment flawlessly integrates TIG and MMA dual processes. Below is the detailed dual-mode parameter matrix, rigorously unit-decoupled (adhering to historical factory archives):

🔧 Welbee Digital Welder Dust Control & 2A Micro-Arc Guide

• Rigorous Grounding Requirements for 2A Micro-Arcs: Outputting micro-arcs down to 2A demands flawless electrical loop conductivity. Rusted grounding clamps, oily workpiece surfaces, or frayed welding cables prevent 2A currents from penetrating surface oxides, resulting in arc drift or ignition failure. When tack-welding ultra-thin sheets, you must grind workpiece grounding clamp contact points to bright bare metal and keep ground cables as short as possible.
• Dust Protection Mechanisms for Welbee Motherboards: Despite isolated cooling duct designs separating control boards from airflow, suspended metallic dust in grinding bays can infiltrate the control chamber via air turbulence. Enforce a mandatory bimonthly inspection schedule, blowing out circuit boards with clean, low-pressure compressed air (≤0.2MPa) to prevent high-frequency ignition short circuits.
• Water-Cooling Interlock Loop at 500A Full Load: Operating above 300A on thick plates requires an independent OTC recirculating water cooler and heavy-duty water-cooled TIG torch. Connect the water cooler flow alarm line to the rear host interface; if coolant hoses kink or leak, the mainboard cuts 500A output instantly—the final line of defense to prevent melting expensive water-cooled torches.
