Original OTC DAIHEN AW Series TIG Welding Torch Technical Selection Guide
OTC DAIHEN AW Series TIG welding torches are globally renowned precision welding execution instruments. This comprehensive lineup spans from 120A micro-torch specifications for thin-sheet welding up to 500A heavy-duty continuous melting specifications for thick plate fabrication. Designed with OEM hallmarks including exceptionally flexible cables, superior ergonomic body balance, and highly reliable high-frequency arc ignition, the AW series delivers perfect arc stiffness and weld pool protection whether paired with manual inverter TIG power sources (such as MINI200P, DA300P, or universal AC/DC TIG machines) or integrated within automated welding systems.
✨ Universal AW Series Technical Features
- Industry-Leading Cable Flexibility: Unique coaxial integrated gas-electric and water-electric cable harnesses maintain exceptional suppleness even during sub-zero winter temperatures or long-distance dragging, significantly reducing operator wrist fatigue during extended welding shifts.
- Ultra-Low Abnormal Electrode Loss: Internal fluid channels within OEM torch heads undergo rigorous aerodynamic laminar flow calibration. Shielding gas is discharged with exceptional uniformity, effectively preventing tungsten electrode oxidation at elevated temperatures and drastically extending the service life of tungsten needles and ceramic nozzles.
- Versatile Geometric Torch Profiles: Available in Standard Angle (AW series), Flexible Adjustable Angle (AWF series), and Automated Straight-Pencil (AWP series) configurations, comprehensively adapting to challenging, confined, or mechanized clamping workstation requirements.
📋 Core Selection Guide: Air-Cooled vs. Water-Cooled Systems
The AW Series TIG welding torches are categorized into two thermal cooling modes based on operating current and heat input intensity. Select according to your core welding procedure:
- Air-Cooled Torches (e.g., AW-9, AW-17, AW-26, AW-2081): Rely on shielding gas flow and ambient air for natural thermal dissipation. Advantages include an ultra-lightweight structure with no requirement for external water circulation tanks鈥攐ffering true plug-and-play operation ideal for on-site installation, elevated construction, and intermittent medium-to-thin plate welding tasks.
- Water-Cooled Torches (e.g., AW-18, AW-12, AW-33): Must be paired with a recirculating cooling water tank system. High thermal energy is efficiently extracted via an internal high-efficiency water circuit within the torch head, achieving a 100% rated duty cycle. Engineered specifically for high-current, continuous heavy-duty industrial production involving long weld seams on thick stainless steel and aluminum alloy plates.

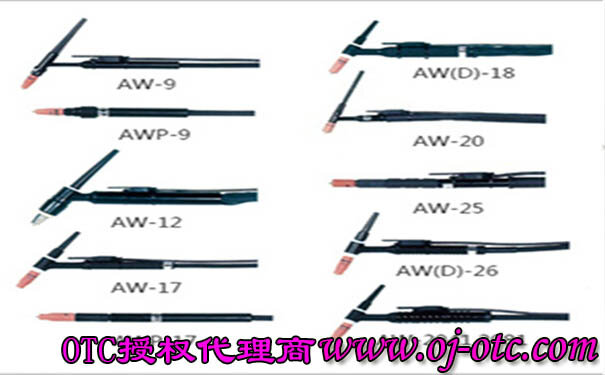

📋 Complete AW Series Standard Technical Specifications Matrix
Below is the official OTC DAIHEN standard selection matrix. Parenthesized electrode diameters indicate compatibility achievable via optional collet assembly configurations:
| Torch Model | Rated Welding Current (A) | Duty Cycle (%) | Cooling Method | Applicable Tungsten Diameter (mm) | Standard Cable Length (m) | |
|---|---|---|---|---|---|---|
| Direct Current (DC) | Alternating Current (AC) | |||||
| AW-9 Standard Type | 120 A | 95 A | 50% | Air-Cooled | (0.5), 1.0, 1.6 mm | 4 m or 8 m |
| AWF-9 Flexible Adjustable Type | 120 A | 95 A | 50% | Air-Cooled | (0.5), 1.0, 1.6 mm | 4 m or 8 m |
| AWP-9 Automated Straight-Pencil Type | 120 A | 95 A | 50% | Air-Cooled | (0.5), 1.0, 1.6 mm | 4 m or 8 m |
| AW-17 Standard Type | 150 A | 130 A | 50% | Air-Cooled | (0.5), (1.0), 1.6, (2.0), (2.4) mm | 4 m or 8 m |
| AWF-17 Flexible Adjustable Type | 150 A | 130 A | 50% | Air-Cooled | (0.5), (1.0), 1.6, (2.0), 2.4 mm | 4 m or 8 m |
| AWP-17 Automated Straight-Pencil Type | 150 A | 130 A | 50% | Air-Cooled | (0.5), (1.0), 1.6, (2.0), 2.4 mm | 4 m or 8 m |
| AW-2041 Heavy-Duty Air-Cooled Type | 200 A | 160 A | 35% | Air-Cooled | (0.5)-(2.0), 2.4, (3.0)-(4.0) mm | 4 m |
| AW-2081 Heavy-Duty Long-Cable Air-Cooled Type | 200 A | 160 A | 35% | Air-Cooled | (0.5)-(2.0), 2.4, (3.0)-(4.0) mm | 8 m |
| AW(D)-26 Universal Medium Air-Cooled Type | 200 A | 160 A | 50% | Air-Cooled | (0.5)-(2.0), 2.4, (3.0)-(4.0) mm | 4 m or 8 m |
| AWF-26 Flexible Medium Air-Cooled Type | 200 A | 160 A | 50% | Air-Cooled | (0.5)-(2.0), 2.4, (3.0)-(4.0) mm | 4 m or 8 m |
| AW-20 High-Duty Light Water-Cooled Type | 200 A | 160 A | 100% | Water-Cooled | (0.5), (1.0), 1.6, (2.0), 2.4, (3.0), (3.2) mm | 4 m or 8 m |
| AW-25 Flexible High-Duty Water-Cooled Type | 200 A | 160 A | 100% | Water-Cooled | (0.5), (1.0), 1.6, (2.0), 2.4, (3.0), (3.2) mm | 4 m or 8 m |
| AW(D)-18 Heavy-Duty Industrial Water-Cooled Type | 300 A | 260 A | 100% | Water-Cooled | (0.5)-(2.0), 2.4, (3.0), 3.2, (4.0) mm | 4 m or 8 m |
| AWG-8 High-Load High-Duty Water-Cooled Type | 250 A | 200 A | 100% | Water-Cooled | (1.6), (2.0), (2.4), (3.0), 3.2, (4.0) mm | 4 m or 8 m |
| AW-12 Extreme Heavy-Duty Water-Cooled Type | 500 A | 400 A | 100% | Water-Cooled | (1.0), (1.6), (2.4), 3.2, 4.0, (4.8), (6.4) mm | 4 m or 8 m |
| AW-33 Extreme Industrial Heavy-Duty Water-Cooled Type | 500 A | 400 A | 100% | Water-Cooled | (1.0), (1.6), 2.4, 3.2, (4.0), (6.4) mm | 4 m or 8 m |
🛠️ AW Series Operational Safety & Maintenance Tips
- Water-Cooled Models Strictly Prohibit Dry Running: Whenever operating water-cooled models (such as AW-18/12/33), ensure the recirculating water cooling unit is operating at normal pressure before striking an arc. Dry running without coolant circulation will cause fatal thermal overload and melt internal water-electric cables within seconds.
- Periodically Check Back-Cap & Gas Path Sealing: TIG welding requires exceptional shielding gas purity. Periodically inspect the O-ring seals on long and short torch back caps for aging. Even minor air leaks can cause arc deflection and induce honeycomb porosity defects due to atmospheric oxygen infiltration into the weld pool.
- Avoid Cable Crushing & Sharp Bends During Storage: Whether utilizing 4m or 8m cable harnesses, maintain a coiling radius of at least 40 cm during daily storage or hanging. Never allow carts, trucks, or heavy machinery to crush cables, which can flatten internal braided copper conductors or flexible gas tubes.
📞 Request Technical Support & Global Quotes
If you have any technical inquiries regarding the above products or need to obtain the latest bulk purchasing quotes, please feel free to contact us. We provide one-stop technical consulting and genuine OEM after-sales support.
