U30022L00 Wire Feed Motor

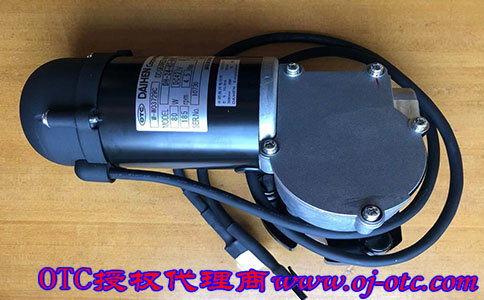

In-Depth Technical Analysis: Genuine OTC DAIHEN U30022L00 Servo Drive Wire Feed Motor for CM7402 / CMV7402 Wire Feeders

OTC DAIHEN U30022L00 Servo Wire Feed Motor is the primary electro-mechanical drive unit custom-engineered for classic OTC manual and automated MIG/MAG wire feeder systems, specifically the CM7402 and CMV7402 series. In industrial gas-shielded welding, consistent wire feeding speed directly dictates arc stability, spatter levels, and weld bead penetration. When feeding thick solid or flux-cored wire through long torch cable assemblies, standard commercial DC motors suffer from torque decay, motor stalling, and erratic wire speed. Utilizing high-purity copper windings and an integrated optical encoder, the U30022L00 delivers powerful, constant-torque wire propulsion and millisecond-level closed-loop speed feedback, eliminating wire chatter and arc drift.

🔍 High-Torque Pure Copper Windings & Integrated Optical Encoder Advantages

• High-Torque Pure Copper Armature Windings: Engineered to overcome high frictional resistance inside long wire liners, the U30022L00 armature is wound with OEM high-purity copper wire. This provides exceptional torque density and thermal dissipation, maintaining stable RPM even under heavy clamping loads without motor overheating or burnout.
• Integrated Millisecond-Level Optical Encoder: The rear motor housing incorporates a high-sensitivity optical encoder that transmits real-time rotational speed signals back to the wire feeder control PCB. This enables closed-loop voltage regulation, compensating instantaneously for wire drag fluctuations to lock in uniform linear wire feeding speed.
• Precision OEM Mechanical Traceability (U30022L00 vs. W-W03729): Stamped with official Part No. U30022L00 on the motor casing, this unit features specific mounting flange dimensions and gear shaft projections that distinguish it from visually similar models like W-W03729. Exact OEM mechanical tolerances ensure seamless installation into CM7402 / CMV7402 reduction gearboxes without gear mesh binding.

🛠 On-Site Replacement Guide & Avoiding Carbon Brush Dust and Motor Stalling

• 🚨 Critical Maintenance Rule: Regularly Blow Out Carbon Brush Dust! Over extended industrial operation, carbon brushes wear down and shed conductive carbon dust inside the motor end cap. **If carbon dust accumulates across brush holders and commutator bars, it can cause micro-short circuits that trigger error codes (such as E-XXX) or blow the feeder control PCB!** Electricians should periodically remove the brush inspection covers and purge the commutator cavity using dry, low-pressure compressed air.
• Inspect Gearbox Lubrication and Feed Roll Alignment: Never install a new U30022L00 motor into a dry or contaminated reduction gearbox. Clean all gears and apply fresh lithium grease. Verify that wire feed rolls align concentrically with inlet guide tubes to prevent excessive wire drag that could overload the motor armature.
• Verify Encoder Shielded Cable Connections: Ensure that the multi-pin encoder signal connector is locked securely and free from oil mist contamination. Unshielded or loose encoder wiring allows workshop EMI noise to interfere with speed feedback, causing erratic motor surging.

• Complete CM7402 / CMV7402 Wire Feeder Spare Parts BOM: Reliable wire feeding requires matching mechanical drive components. To procure compatible wire feed gears (such as K1822C11), drive rolls, and pressure arms, check our technical catalog for full BOM diagrams to ensure accurate part selection.
