XD600G Gouging Welder

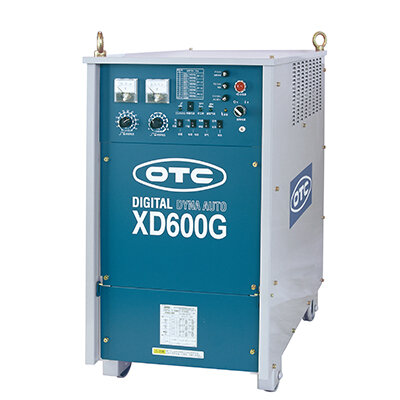

OTC DAIHEN XD600G Microcomputer-Controlled Thyristor Multi-Function CO₂/MAG & Carbon Arc Gouging Power Source In-Depth Technical Analysis

The OTC DAIHEN XD600G (Official Model: CPXDG-600) is a true “heavy industrial behemoth.” As a 600A-class microcomputer-controlled thyristor power source, it transcends the limitations of single-function MIG/MAG welders by seamlessly uniting CO₂/MAG welding, Manual Metal Arc (MMA) welding, and heavy-duty carbon arc gouging into one rugged machine. Boasting an absolute 100% extreme duty cycle paired with a 252kg high-surge-resistance pure copper main transformer architecture, it asserts unrivaled dominance and operational reliability during thick-plate back-gouging, defect repair, and long seam deep-penetration welding across shipyards, heavy bridge construction, and mining equipment manufacturing facilities.

🌟 Core Heavy-Industrial Advantages & Multi-Function Process Selling Points

• 3-in-1 Heavy Fabrication Mother Machine (MIG/MMA/Gouging): A single machine executes the complete workflow for heavy structural components. In particular, its powerful 600A carbon arc gouging capability utilizes the intense heat of a carbon arc combined with high-pressure compressed air to rapidly melt and blow away back-side metal from welds. This represents the most efficient industrial method for double-sided weld root clearing and eliminating internal defects such as porosity and slag inclusion.
• 100% Extreme Duty Cycle: Operating at a full load of 600A, the XD600G supports 24/7 continuous, round-the-clock operation without interruption! This completely eliminates the industry bottleneck of conventional equipment triggering thermal overload shutdowns during extended high-current gouging, perfectly matching the grueling continuous shift schedules of construction machinery and shipbuilding sectors.
• Microcomputer Dynamic Smart Control & Synergic Operation: While built upon an ultra-rugged thyristor power platform, its control brain is upgraded to a sophisticated microcomputer processor. Operators only need to set the current, and welding voltage automatically matches in a synergic curve; during deep-penetration MIG/MAG welding, even if operator hand fatigue causes arc length fluctuations, the microcomputer executes millisecond-level dynamic compensation to maintain arc stability.
• High-Agility Thyristor Overcurrent Protection: Carbon arc gouging operations are inherently prone to instantaneous high-voltage short circuits. The XD600G incorporates a formidable overcurrent protection circuit; whenever current exceeds safe operating thresholds, the thyristor array instantaneously locks output, offering maximum protection to the motherboard and main transformer against destructive power spikes.

📋 XD600G (CPXDG-600) Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and heavy-duty configuration table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 600A Heavy Gouging Power Source Electrical Installation & Maintenance Guide

• Electrical Supply & Breaker Requirements for 47.7kVA Extreme Input: The XD600G is an industrial powerhouse with a rated input capacity of 47.7kVA (drawing nearly 72A input current). Workshop electrical installation must utilize national standard pure copper main cables with a cross-sectional area of at least 25mm² (35mm² is strongly recommended), paired with an independent circuit breaker rated at 100A or higher! Attempting to run this machine on undersized wiring or lower-rated circuit breakers will cause immediate line tripping during arc ignition in carbon arc gouging, or even risk severe cable melting and electrical fire.
• Mandatory Monthly Dust Cleaning Rule for Severe Gouging Environments: During carbon arc gouging, high-pressure air violently scatters molten iron slag and carbon combustion dust, filling the surrounding workshop atmosphere with highly conductive metallic dust. The cooling fan inside this 252kg machine acts like an industrial vacuum, pulling these particulates into the chassis. For fabrication shops conducting frequent gouging, you must enforce a mandatory “monthly internal cleaning” maintenance routine! Focus on blowing out the aluminum cooling fins of the thyristor rectifier bridge using dry compressed air; once conductive iron powder bridges the fin gaps, the high-value thyristor modules will instantly short-circuit and fail.
• Matching Carbon Arc Gouging Torches & Air Compressors: Please note that although this power source supports carbon arc gouging, the standard supplied WT5000-SCD is a conventional MIG/MAG welding torch. To perform gouging operations, you must procure a dedicated carbon arc gouging clamping torch (gouging gun) and connect it to a high-pressure industrial air compressor (providing a stable air pressure of 0.5~0.7MPa). Insufficient air pressure prevents molten iron from being blown clear, leaving hard, stubborn carbon slag adhering to the workpiece that is extremely difficult to grind away.
