To help engineers and procurement professionals quickly locate and compare items, we have compiled a detailed exploded view diagram and part number list for the OTC Daihen CM6201, CM6202, and CM6402 wire feeder assemblies. The structures and components of the wire feeder assemblies for these three models are completely interchangeable.

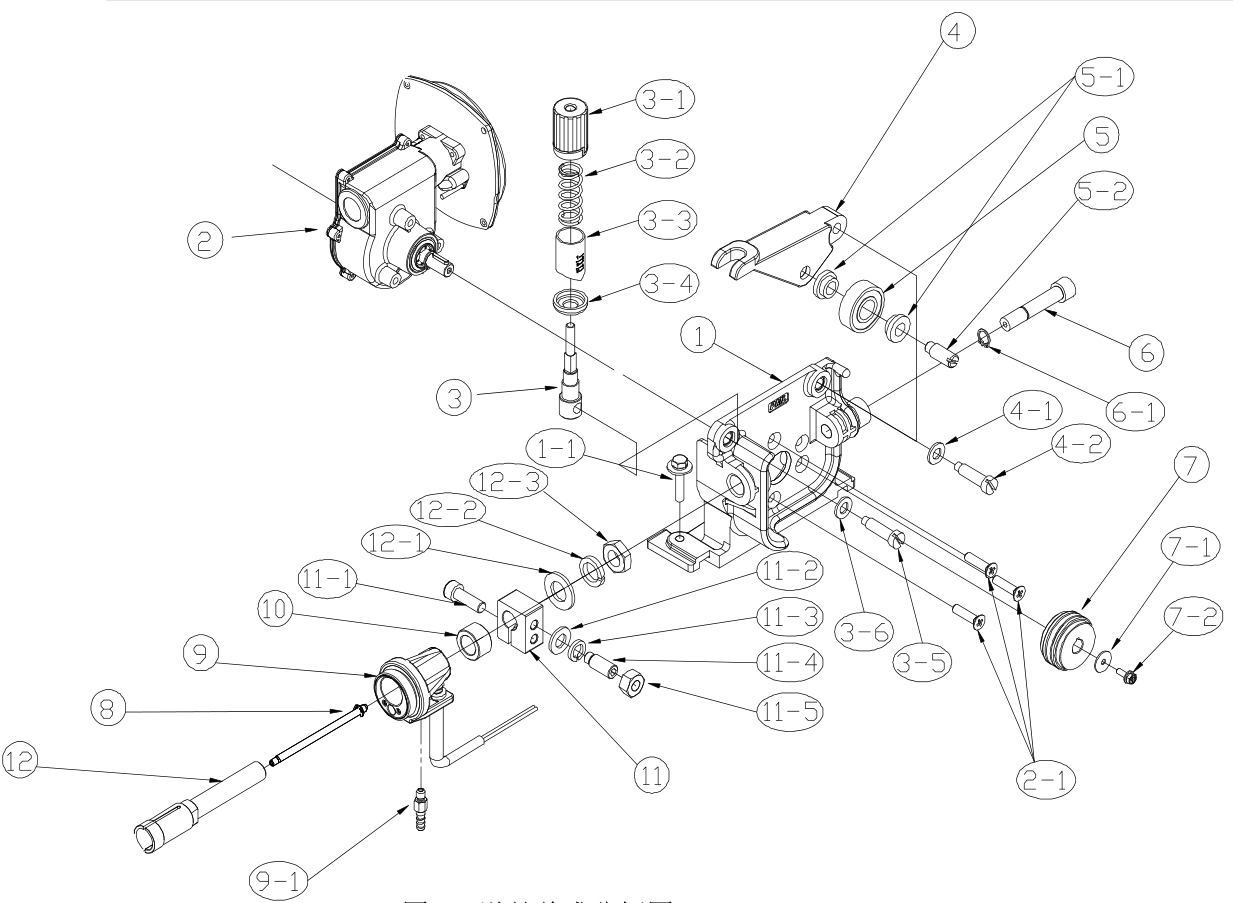

1. Exploded View Diagram of CM6201 / CM6202 / CM6402 Wire Feeder Assembly
2. Real-Time Quick Search Table for Part Details
You can directly cross-reference the Item No. from the exploded view diagram above and find the corresponding models and names in the search box or table below:
| Item No. | Part No. / Spec | Part Name |
|---|---|---|
| 1 | U30055B01 | Bracket |
| 1-1 | U30055B11 | Bolt Assembly |
| 2 | U30055L01 | Worm Gear Wire Feed Motor |
| 2-1 | GB/T 819. 1-2000 M6X25 | Phillips Countersunk Head Screw |
| 3 | U30055H01 | Pressure Arm Screw |
| 3-1 | U30055H02 | Handle Outer Sleeve |
| 3-2 | U30055H03 | Spring |
| 3-3 | U30055H04 | Handle Inner Sleeve |
| 3-4 | U30055H05 | Retaining Ring |
| 3-5 | U30055B03 | Shaft Screw (5) |
| 3-6 | GB 97.1-2002 8 | Flat Washer |
| 4 | U30055B02 | Pressure Arm |
| 4-1 | GB 97. 1-2002 8 | Flat Washer |
| 4-2 | U30055B03 | Shaft Screw (5) |
| 5 | U30055B04 | Pressure Roll (Bearing) |
| 5-1 | U30055B05 | Pressure Roll Insulation Sleeve |
| 5-2 | U30055B06 | Shaft Screw (2) |
| 6 | U30055B09 | Wire Guide Pole / Rod |
| 6-1 | GB 894. 1-86 10 | Retaining Ring for Shaft |
| 7 | U30055M01 | Wire Feed Roll (For 0.8 & 1.0mm Wire) |
| 7 | U30055M02 | Wire Feed Roll (For 1.0 & 1.2mm Wire) |
| 7 | U30055B07 | Wire Feed Roll (For 1.2 & 1.6mm Wire) |
| 7 | U30055M03 | Wire Feed Roll (For 1.2 & 1.2mm Wire) |
| 7 | U30055M04 | Wire Feed Roll (For 1.4 & 1.4mm Wire) |
| 7 | U30055M05 | Wire Feed Roll (For 1.2 & 1.4mm Wire) |
| 7-1 | U30055B08 | Washer / Spacer |
| 7-2 | GB 9074.13-88 M4X12 | Bolt Assembly |
| 8 | U30056N01 | Wire Guide Tube (For 0.8-1.2mm Wire) |
| 8 | U30056B01 | Wire Guide Tube (For 1.2-1.6mm Wire) |
| 9 | U30056P00 | Adaptor Base Assembly |
| 9-1 | K3985E04 | Gas Hose Connector |
| 10 | U30056D02 | Spacer Block / Pad |
| 11 | U30056D03 | Power Supply Module |
| 11-1 | GB 70-2000 M8X25 | Hex Socket Head Cap Screw |
| 11-2 | GB 97. 1-2002 10 | Flat Washer |
| 11-3 | GB 93-87 10 | Washer |
| 11-4 | U30055D02 | Double-End Stud / Stud Bolt |
| 11-5 | GB 6170-2000 M10 | Hexagon Nut |
| 12 | U30056D01 | Torch Guide Nozzle |
| 12-1 | GB 97. 1-2002 14 | Flat Washer |
| 12-2 | GB 93-87 14 | Washer |
| 12-3 | GB 6172. 1-2000 M14 | Hexagon Thin Nut |
3. Purchasing Original Parts & Technical Support
The items listed above are standard spare parts for OTC wire feeders. If you need to purchase any components shown in the diagram, please directly provide us with the equipment nameplate or the corresponding part number. As an authorized distributor, we promise to provide 100% genuine original parts with professional technical guidance from our maintenance engineers to ensure perfect compatibility.
