The main body and wiring components of the OTC Daihen CM6201, CM6202, and CM6402 wire feeders share the exact same specifications and OTC order numbers. To help engineers and procurement professionals quickly locate items, we have compiled a detailed exploded view diagram and part number list.

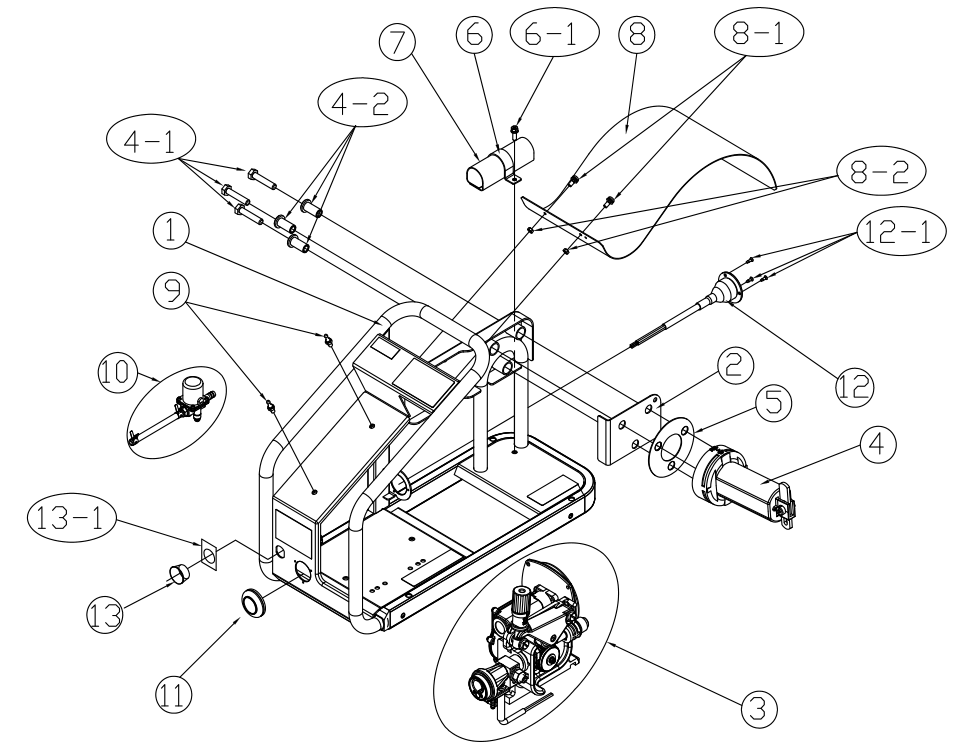

1. Exploded View Diagram of CM6201 / CM6202 / CM6402 Main Body & Wiring
2. Real-Time Quick Search Table for Part Details
You can directly cross-reference the Item No. from the diagram above and find the corresponding part numbers and names in the search box or table below:
| Item No. | Part No. / OTC Order No. | Part Name | Remarks |
|---|---|---|---|
| 1 | U30055C01 | Frame Assembly | Assembly, includes 2 |
| 2 | U30055C02 | Cover Plate | — |
| 3 | FWT-540-A2-0TC | Wire Feeder Assembly | Refer to 9.2 for assembly |
| 4 | U30055F01 | Wire Spool Hub Assembly | Assembly, includes 4-1, 4-2 |
| 4-1 | GB 9074.17-88 M8X45 | Bolt Assembly | — |
| 4-2 | U30055F02 | Insulation Sleeve | — |
| 5 | U30055F03 | Insulation Pad | — |
| 6 | U30055C04 | Fixing Clamp | Excludes 6-1 |
| 6-1 | GB 9074.13-88 M5X16 | Bolt Assembly | — |
| 7 | U30055J01 | Protective Sheath | — |
| 8 | U30055C03 | Dust Cover | Excludes 8-1, 8-2 |
| 8-1 | GB 9074.8-88 M4X10 | Screw Assembly | — |
| 8-2 | GB 6170-2000 M4 | Hexagon Nut | — |
| 9 | U30022C04 | Suspension Post | — |
| 10 | U30056G00 | Gas Piping / Hose Assembly | Refer to 9.3 for assembly |
| 11 | QW-W00016 | Rubber Protective Cap | — |
| 12 | U30055E01 | Control Cable Assembly | Assembly, includes 12-1 |
| 12-1 | GB 846-85 ST2.9X9.5-F | Phillips Countersunk Tapping Screw | — |
| 13 | HP-16 | Snap-in Hole Plug | — |
| 13-1 | U30056C01 | Baffle / Stopping Plate | — |
