To help engineers and procurement professionals quickly locate and compare items, we have compiled a detailed exploded view diagram and part number list for the OTC Daihen CM7402 and CMW-742-C wire feeder assemblies.

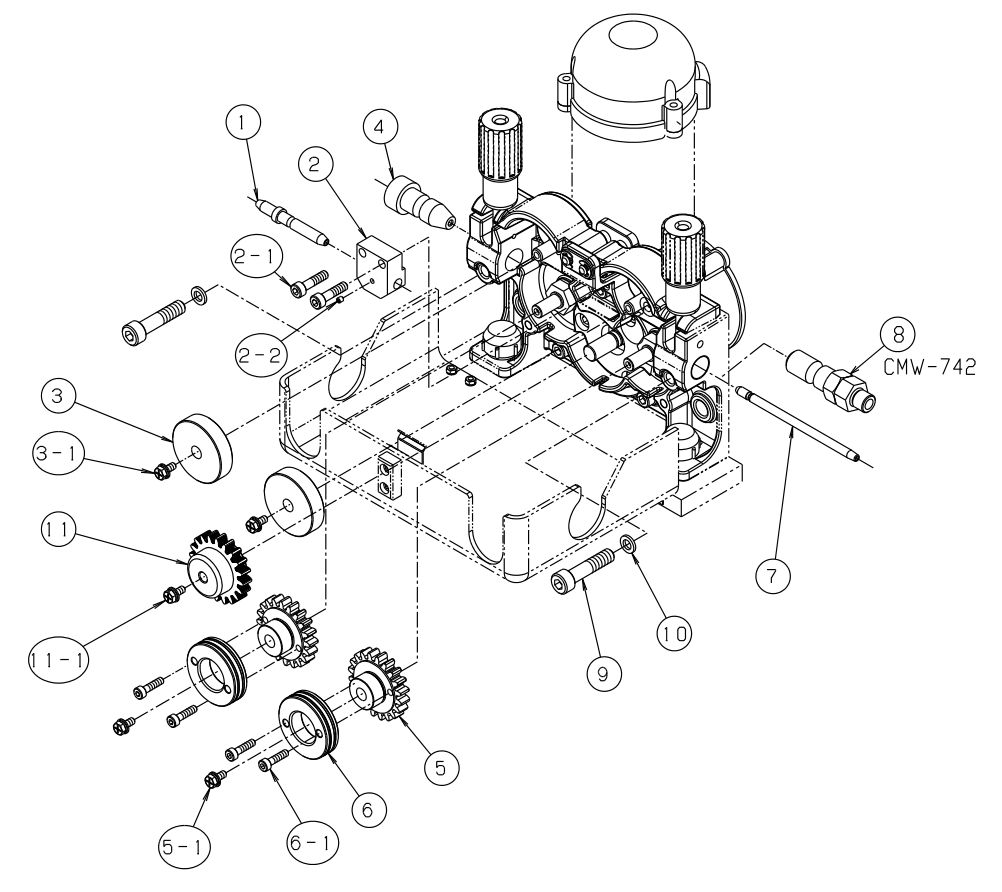

1. Exploded View Diagram of CM7402 / CMW-742-C Wire Feeder Assembly
2. Real-Time Quick Search Table for Part Details
You can directly input the Item No. or Part Name from the diagram into the search box below, and the table will automatically filter the corresponding part numbers for you:
| Item No. | Part No. / OTC Order No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| CM-7402 | CMW-742-C | ||||
| 1 | L10595C01 | Center Wire Guide Tube | 1 | ||
| 2 | L10595C02 | Guide Module | 1 | Excludes 2-1, 2-2 | |
| 2-1 | — | Hex Socket Head Cap Screw | 2 | M5X20 | |
| 2-2 | — | Set Screw | 1 | M3X4 | |
| 3 | K5439C00 | Pressure Roll | 2 | Excludes 3-1 | |
| 3-1 | — | Phillips Hex Head Screw | 2 | M4X10 | |
| 4 | U30022.T01 | Wire Guide Tube | 1 | ||
| 5 | L10595P00 | Intermediate Gear | 2 | Assembly, excludes 5-1 | |
| 5-1 | — | Phillips Hex Head Screw | 2 | M4X10 | |
| 6 | K5439B12 | — | Wire Feed Roll (0.9-1.0/1.2) | 2 | Excludes 6-1 |
| — | K5439B01 | Wire Feed Roll (1.4/1.6) | 2 | Excludes 6-1 | |
| 6-1 | — | Hex Socket Head Cap Screw | 4 | M4X16 | |
| 7 | U30022J02 | Outlet Wire Guide Tube (0.9-1.2) | 1 | ||
| 8 | U5209J01 | Wire Guide Adaptor | 1 | ||
| 9 | — | Hex Socket Head Cap Screw | 2 | M6X35 | |
| 10 | — | Washer | 2 | M6 | |
| 11 | L10595Q00 | Drive Gear | 1 | Excludes 11-1 | |
| 11-1 | — | Phillips Hex Head Screw | 1 | M4X15 | |
3. Purchasing Original Parts & Technical Support
The items listed above are standard spare parts for OTC wire feeders. If you need to purchase any components shown in the diagram, please directly provide us with the equipment nameplate or the corresponding part number. As an authorized distributor, we promise to provide 100% genuine original parts with professional technical guidance from our maintenance engineers to ensure perfect compatibility.
