To help engineers and procurement professionals quickly locate and compare items, we have compiled a detailed exploded view diagram and part number list for the OTC Daihen CM7402 and CMW-742-C wire feeder protective covers.

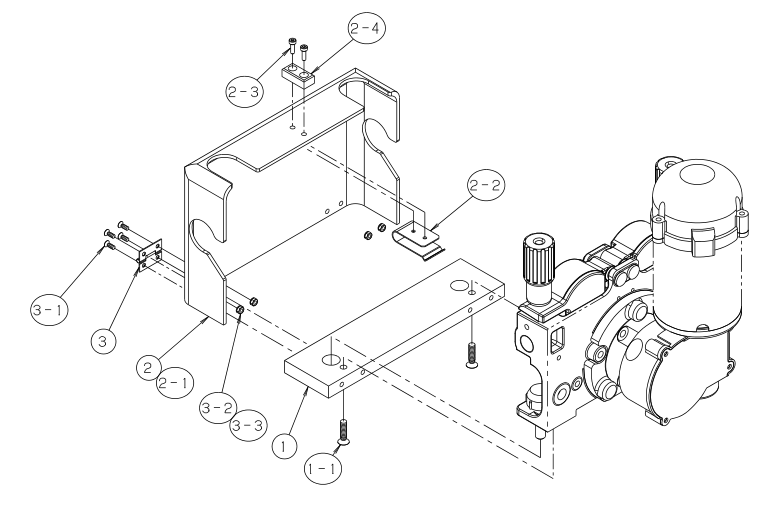

1. Exploded View Diagram of CM7402 / CMW-742-C Wire Feeder Cover
2. Real-Time Quick Search Table for Part Details
You can directly input the Item No. or Part Name from the diagram into the search box below, and the table will automatically filter the corresponding part numbers for you:
| Item No. | Part No. / OTC Order No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| CM-7402 | CMW-742-C | ||||
| 1 | L10595D02 | Base Plate | 1 | Excludes 1-1 | |
| 1-1 | — | Phillips Truss Head Screw | 2 | M5X20 | |
| 2 | U30022V00 | Protective Cover | 1 | Assembly (includes 2-1, 2-2, 2-3, 2-4) | |
| 2-1 | K5737D01 | Protective Cover | (1) | Excludes Display Board | |
| 2-2 | U30022V02 | Latch | (1) | ||
| 2-3 | — | Hex Socket Head Cap Screw | (2) | M3X10 | |
| 2-4 | U30022V03 | Latch Bracket | (1) | ||
| 3 | 4739-540 | Flat Hinge | 2 | Excludes B-1100-1 (3-1, 3-2, 3-3) | |
| 3-1 | — | Phillips Pan Head Screw | 8 | M3X8 (w/ Small Flat Washer) | |
| 3-2 | — | Nut | 4 | M3 | |
