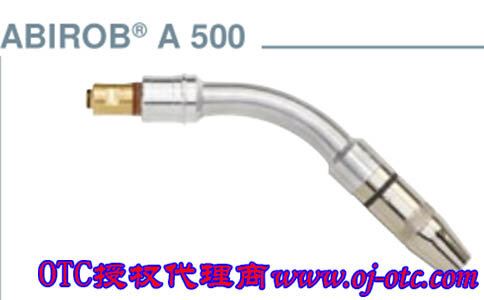

Abicor Binzel ABIROB® A500 Heavy-Duty Air-Cooled Robotic MIG Torch
The Abicor Binzel ABIROB® A500 redefines the performance boundaries of air-cooled robotic welding. Rated at an extraordinary 500 Amperes (Gas-Cooled), this rugged torch is engineered for high-intensity automated lines that demand maximum firepower without the mechanical complexity and maintenance costs of water-cooling chillers. By integrating an oversized thermodynamic copper core and high-efficiency gas channeling, the A500 sustains heavy welding loads while offering modular neck geometries (0° to 45°) and absolute Tool Center Point (TCP) precision.
⚙️ Detailed Consumables & Part Number Matrix
| Torch Neck Configuration | 0° Straight Neck | 22° Bent Neck | 35° Bent Neck | 45° Bent Neck |
|---|---|---|---|---|
| Standard Torch Neck | 980.1012 | 980.1013 | 980.1014 | 980.1015 |
| Tip Adapter Type & Material | Binzel Part Number |
|---|---|
| M6 Thread Brass Tip Adapter | 142.0159.5 |
| M8 Thread Brass Tip Adapter | 142.0158.5 |
| M8 Thread Pure Copper Tip Adapter (Heavy Duty) | 142.0169.5 |
| Wire Ø (mm) | M6 Contact Tip Part No. | M8 Contact Tip Part No. |
|---|---|---|
| Ø 0.8 mm | 147.0054 | 147.0117 |
| Ø 0.9 mm | 147.0172 | 147.0217 |
| Ø 1.0 mm | 147.0245 | 147.0316 |
| Ø 1.2 mm | 147.0382 | 147.0445 |
| Ø 1.4 mm | 147.0519 | 147.0536 |
| Ø 1.6 mm | —- | 147.0590 |
| Recess / Stick-Out Type | Interface Outer Ø A | Exit Inner Ø B | Total Length C | Binzel Part Number |
|---|---|---|---|---|
| Flush | 28 mm | 14 mm | 75 mm | 145.0586 |
| Recess (-2.0 mm) | 28 mm | 14 mm | 77 mm | 145.0587 |
| Stick-Out (+3.0 mm) | 28 mm | 14 mm | 72 mm | 145.0588 |
| Flush | 28 mm | 16 mm | 75 mm | 145.0583 |
| Recess (-2.0 mm) | 28 mm | 16 mm | 77 mm | 145.0584 |
| Stick-Out (+3.0 mm) | 28 mm | 16 mm | 62 mm | 145.0585 |
| Recess / Stick-Out Type | Interface Outer Ø A | Exit Inner Ø B | Total Length C | Binzel Part Number |
|---|---|---|---|---|
| Flush | 28 mm | 13 mm | 75 mm | 145.0589 |
| Recess (-2.0 mm) | 28 mm | 13 mm | 77 mm | 145.0590 |
| Stick-Out (+3.0 mm) | 28 mm | 13 mm | 72 mm | 145.0591 |
| Flush | 28 mm | 16 mm | 75 mm | 145.0580 |
| Recess (-2.0 mm) | 28 mm | 16 mm | 77 mm | 145.0581 |
| Stick-Out (+3.0 mm) | 28 mm | 16 mm | 72 mm | 145.0582 |
🔧 Engineering & Maintenance Guide
- High-Amperage Air Cooling: To sustain 500A in an air-cooled configuration, maintain shielding gas flow rates strictly according to specifications. Gas acts as the primary cooling medium for the front-end consumables.
- Reamer Spatter Removal: Configure the mechanical nozzle cleaning station with automatic anti-spatter fluid spray. Clean nozzles maintain unobstructed gas flow, which is vital for thermal dissipation.
- TCP Repeatability: The ABIROB A500 modular neck connection is designed for rapid exchange. Always secure the locking nut to the specified torque to guarantee zero Tool Center Point deviation.
