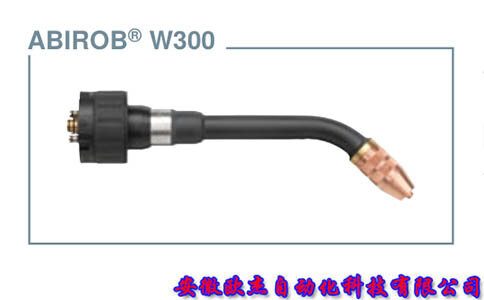

Abicor Binzel ABIROB® W300 Lightweight Water-Cooled Robotic MIG Torch
The Abicor Binzel ABIROB® W300 represents the perfect synthesis of spatial dexterity and liquid-cooled thermal endurance. Rated at 330 Amperes, this compact robotic MIG/MAG torch features a slim neck profile designed to penetrate deep into complex welding fixtures and tight internal angles that larger water-cooled models cannot access. Despite its agile footprint, it integrates a highly efficient internal water-cooling circuit, ensuring extended consumable life and flawless arc ignition during continuous automated production.
⚙️ Detailed Consumables & Part Number Matrix
| Torch Neck Category | 22° Bent Neck | 45° Bent Neck |
|---|---|---|
| Standard Water-Cooled Torch Neck | 782.0110.1 | 782.0111.1 |
| Torch Neck with Nozzle Sensor | 782.0014.1 | 782.0015.1 |
| Tip Adapter Material & Thread | Binzel Part Number |
|---|---|
| M6 Thread Pure Copper Adapter | 785.5052 |
| Diffuser Type & Technology | Binzel Part Number |
|---|---|
| Standard Composite Diffuser | 962.0657 |
| High-Temp Ceramic-Reinforced Diffuser | 962.1341 |
| Wire Ø (mm) | M6 CuCrZr Contact Tip Part No. |
|---|---|
| Ø 0.8 mm | 140.0054 |
| Ø 0.9 mm | 140.0172 |
| Ø 1.0 mm | 140.0245 |
| Ø 1.2 mm (Standard Heavy-Duty) | 140.0382 |
| Nozzle Function / Form | Interface Outer Ø A | Exit Inner Ø B | Total Length C | Binzel Part Number |
|---|---|---|---|---|
| Recess (-1.0 mm) | 25 mm | 13.0 mm | 48.5 mm | 145.0564 |
| Stick-Out (+3.0 mm Narrow) | 25 mm | 13.0 mm | 44.5 mm | 145.0495 |
| Stick-Out (+3.0 mm Wide) | 25 mm | 15.5 mm | 44.5 mm | 145.0494 |
🔧 Engineering & Maintenance Guide
- Accessing Confined Jigs: The slender design is ideal for complex geometries. When programming robotic paths, ensure water coolant hoses within the coaxial cable assembly are not pinched or over-twisted.
- Narrow Gap Solutions: Pair the W300 with conical narrow gas nozzles and extended contact tips to maximize visibility and joint accessibility in tight V-grooves.
- Neck O-Ring Inspection: Regularly inspect O-rings at the modular neck seating area. A damaged O-ring can leak coolant directly into the shielding gas stream, leading to hydrogen porosity in weld seams.
