In-Depth Technical Analysis: Genuine OTC DAIHEN 100-2547 Ultra-Fast Recovery Diode Module (MMF200ZB040DK1) for CPVE250 Welders

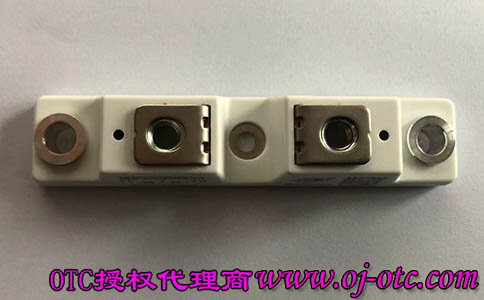

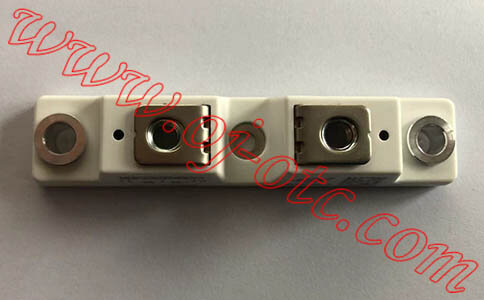

OTC DAIHEN 100-2547 Ultra-Fast Recovery Diode Module (OEM specification code: MMF200ZB040DK1) is the primary secondary rectification component custom-engineered for classic OTC inverter welding power sources, specifically the CPVE250. In high-frequency inverter welding, the secondary rectification circuit converts high-frequency AC transformer output into smooth DC welding current. Standard commercial diodes cannot withstand the rapid switching transients and thermal cycling of arc welding, leading to thermal breakdown, blown fuses, and zero welding output. Engineered in collaboration with MACMIC, the 100-2547 features ultra-fast reverse recovery time (Trr) and high avalanche surge capability, eliminating reverse leakage heating and protecting primary IGBT modules from reverse voltage spikes.

🔍 Custom MACMIC Silicon Architecture & Low Switching Loss Advantages

• OEM Specification Marking MMF200ZB040DK1: Laser-etched with official part code MMF200ZB040DK1, this module is engineered specifically for welding power loads. Unlike generic industrial rectifier modules, its internal semiconductor chips are sized for high thermal junction tolerances, absorbing arc ignition surges without thermal fatigue.
• Ultra-Fast Reverse Recovery Time (Trr): In inverter welding machines operating at tens of kilohertz, diode reverse recovery speed is critical. The 100-2547 achieves minimal Trr, suppressing reverse leakage current during switching transitions. This drastically reduces operating temperature and prevents thermal runaway under continuous high-duty-cycle welding.
• Low Forward Voltage Drop (Vf): Optimized silicon doping lowers forward voltage drop across the diode junction, improving overall power efficiency and reducing cooling heatsink requirements in compact CPVE250 chassis layouts.

🛠 On-Site Module Replacement Guide & Avoiding Thermal Compound Failure and Heatsink Warpage

• 🚨 Critical Maintenance Rule: Apply Uniform Thermal Grease and Torque Screws Evenly! When replacing 100-2547, technicians must clean the aluminum heatsink surface thoroughly using anhydrous alcohol. **Never install a diode module onto a dirty heatsink or without applying premium thermal compound!** Apply a thin, uniform layer of high-conductivity silicone thermal grease across the module baseplate. Secure mounting screws using a torque wrench in a diagonal pattern to OEM torque specifications; uneven torque warps the baseplate, creating air gaps that cause rapid thermal breakdown.
• Inspect RC Snubber Circuits and Transformers: Blown secondary diode modules are frequently caused by degraded RC absorption networks or high-voltage spikes from shorted main transformer windings. Inspect snubber resistors and film capacitors before powering on a replacement diode module.
• Check Primary IGBT Inverter Bridges: If the CPVE250 welder tripped its main circuit breaker when 100-2547 failed, test primary IGBT power modules with a multimeter before reconnecting main power to ensure no cascade short circuits occurred.

• Complete CPVE250 Welding Power Source Spare Parts BOM: Reliable inverter operation requires matching power semiconductors. To procure compatible primary IGBT modules, filter capacitors, and main control PCBs, check our technical catalog for full BOM diagrams to ensure accurate part selection.
