BT3510V MIG/MAG Torch

Genuine Japanese OTC DAIHEN BT3510V Series Ultra-Low Spatter Welding Torches

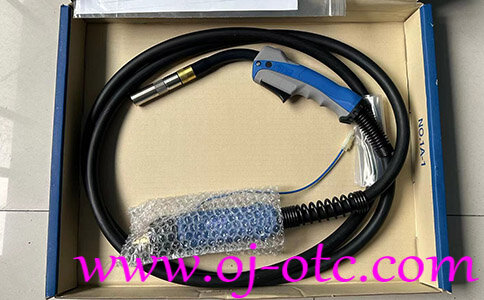

OTC DAIHEN BT3510V Series (including models BT3510V-30 [3-Meter], BT3510V-45 [4.5-Meter], and BT3510V-60 [6-Meter]) represents an authentic Japanese imported air-cooled Gas Metal Arc Welding (GMAW/MIG/MAG) torch line engineered specifically for ultra-low spatter welding processes. Rated for an operating current of 350A, the series pairs perfectly with OTC digital and pulse welding power sources equipped with ultra-low spatter control protocols. Via a dedicated voltage feedback sensing line exiting the rear handle, the torch and power source achieve millisecond precision control over short-circuit waveforms, eradicating weld spatter at the physical source. It is the premier choice for manufacturing facilities demanding spatter-free, zero-grinding high-precision weld appearance.

✨ Key Technical Advantages & Engineering Features

• Voltage Feedback Sensing (Low Spatter Core): The torch handle integrates a high-precision arc voltage sensing interface that feeds real-time arc terminal voltage back to the welding power source microprocessor, establishing a closed-loop CBT-EX ultra-low spatter process.
• Rigid OEM Torch Head Encapsulation: Utilizes a high-insulation, heat-resistant unitized modular torch head (U6196B00), ensuring minimal thermal attenuation during continuous 350A heavy-duty welding shifts.
• High-Purity Laminar Gas Shielding: Equipped with an OEM gas diffuser and precision ceramic insulator, shielding gas is emitted in a uniform laminar flow, isolating atmospheric air to prevent weld pool oxidation and porosity defects.
• Complete Length Specification Coverage: Available in 3.0m, 4.5m, and 6.0m lengths, with internal wire guide conduits and power cable kits impedance-matched by OEM engineers to guarantee smooth wire feeding even across 6-meter spans.

🏭 Typical Industrial Applications & Low-Spatter Scenarios

Renowned for exceptional spatter suppression, the BT3510V series is deployed widely across industries requiring pristine weld aesthetics without post-weld grinding:

• Automotive Body & Chassis Sheet Metal Fabrication: Ideal for high-speed pulse welding on ultra-thin carbon steel, medium plates, and galvanized sheet metal. The spatter-free finish allows welded assemblies to proceed directly to painting or electroplating, eliminating manual grinding labor costs.
• Premium Hardware, Furniture & Enclosure Assembly: Maintains exceptional arc stiffness when welding inside tight corners and internal cavities, producing clean weld beads without spatter adherence.
• Heavy Structural Steel & Long-Seam Fabrication: The 6-meter model (BT3510V-60) provides an expansive operating radius, ideal for long-distance welding across large structural assemblies.

📋 Technical Specifications Matrix

Operating performance across various shielding gases and duty cycles for the BT3510V series equipped with standard 1.2mm precision contact tips is outlined below:

Specification Parameter		Technical Details (BT3510V Series)
Model Specifications & Standard Lengths		BT3510V-30 (3.0m) | BT3510V-45 (4.5m) | BT3510V-60 (6.0m)
Cooling Method / Rated Voltage		Air-Cooled / 95 V (Peak No-Load Voltage Limit)
Rated Duty Cycle (Load Duration Rate)		30%	40%	60%	100%
Rated Welding Current	CO₂ Shielding Gas	–	350 A	280 A	220 A
	MAG / MIG Mixed Gas	250 A	350 A	280 A	220 A
Shielding Gas Flow Rate / Standard Configuration		15 ~ 25 L/min / Factory configured with 1.2mm precision contact tip assembly

🔍 Complete OEM Spare Parts & Consumables Breakdown Catalog

To facilitate routine inspection, maintenance, and bulk consumable sourcing, reference the complete exploded diagram and OEM part number cross-reference table below:



Diagram Item No.	OEM Component Description	OTC DAIHEN Standard Part Number
1	Outer Metal Nozzle (Nozzle)	U4167G01
2	Torch Head Insulator (Insulator)	U4167L00
3	Precision Contact Tip (Contact Tip)	K980C26 (Standard 1.2mm)
4	Contact Tip Adapter / Body (Tip Body)	U4167G03
5	Gas Diffuser / Screen (Gas Diffuser)	U4167G02
6	Curved Swan Neck Torch Body Assembly (Torch Body)	U6196B00
6-1	Torch Body Sealing O-Ring	3574-001
7	Complete Handle Enclosure Kit (Handle Kit)	U6256C00
7-1	Rear Cable Support Handgrip	U6256D00
7-2 / 7-3	Handle Shell Halves (Upper / Lower Shells)	U6196H03 / H6196H04
7-4	Handle End Retaining Ring	U6196H05
8	Rear Torch Body Protective Insulating Cap	U5341G01
9 / 9-1	High-Sensitivity Trigger Switch Assembly / Switch Component	U6190T00 / U6190T01
9-2 / 9-3	Torch Trigger Control Circuit Component	U6190T02 / U6190Q00
10	Coaxial Cable Support Bracket (with Locking Screw)	U6190S00
11	OEM Wire Guide Liner (Matched by Torch Length)	3.0m Model: U4170H02 4.5m Model: U6194L00 6.0m Model: U6195L00
12	Integrated Coaxial Power Cable Assembly (by Length)	3.0m Model: U6249K00 4.5m Model: U6250K00 6.0m Model: U6251K00
13 / 14	Rear Gas-Electric Central Connector Plug Assembly	U4167F03 / U4167E00
14-1 / 15	Rear Plug Sealing O-Ring / All-Metal Rear Locking Nut	3570-125 / U4167G06
16 / 17	Voltage Feedback Sensing Quick-Connect / OEM High-Temp Adhesive	U5365P00 / 100-1570

🛠️ Maintenance Best Practices for Low-Spatter Welding Systems

• Never Modify Voltage Feedback Sensing Lines: Item 16 (U5365P00) feedback connector is dedicated to sampling arc terminal voltage. If the sensing wire is severed or disconnected during cable pulling, the welding power source cannot detect accurate arc feedback, causing the ultra-low spatter CBT-EX loop to fail and multiplying coarse spatter exponentially.
• Keep Gas Diffusers (Gas Screens) Unobstructed: Operating at 350A, Item 5 (U4167G02) gas diffusers accumulate micro-spatter and iron dust over time. Clean gas discharge orifices weekly using a soft wire brush to maintain uniform laminar flow; clogged orifices cause turbulent shielding gas entrainment that leads to weld pool oxidation and porosity.
• Prohibit Sharp Cable Kinking on 6.0m Models (BT3510V-60): Ultra-low spatter welding requires zero variation in wire feeding frictional resistance. Maintain cable coiling radii above 45 centimeters during dragging. Sharp kinks cause wire feeding speed stutter, which disrupts CBT-EX short-circuit waveform synchronization and triggers frequent arc outages.
