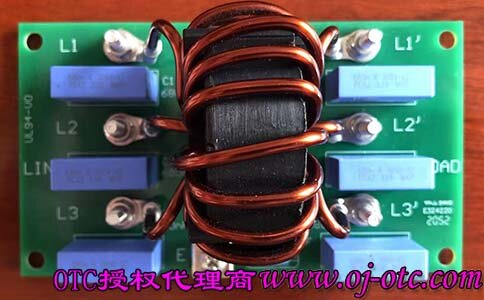

4519-036 Filter

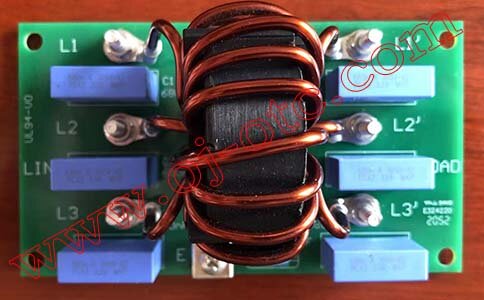

In-Depth Technical Analysis: Genuine OTC DAIHEN 4519-036 Power Supply EMC/EMI Filter for Inverter Welding Machines

OTC DAIHEN 4519-036 Electromagnetic Interference (EMC/EMI) Power Filter is the primary electrical conditioning unit custom-engineered for classic OTC inverter welding power sources. In automated industrial workshops where welding power sources share 380V power grids with robotic controllers, CNC machining centers, and precision sensors, high-frequency switching noise generated by inverter IGBT bridges can conduct back into the power supply lines. This electromagnetic pollution causes unexplainable sensor faults, robot controller crashes, and network communication errors. Installed at the power input stage, the 4519-036 provides bidirectional noise attenuation and surge suppression, protecting workshop equipment from welding emissions while defending internal welder PCBs from external voltage spikes.

🔍 Bidirectional EMC Suppression & High-Surge Safety Capacitor Advantages

• Bidirectional Conducted Noise Suppression: Engineered specifically for OTC inverter power characteristics, the 4519-036 integrates high-saturation common-mode chokes and differential-mode X/Y safety capacitors. It blocks high-frequency inverter switching harmonics from entering the grid while attenuating incoming power line noise before it reaches sensitive control electronics.
• Voltage Spike & Lightning Surge Defense: Industrial power grids experience frequent voltage spikes caused by large inductive load switching. 4519-036 incorporates surge-absorbing varistor networks that clamp transient spikes instantaneously, preventing over-voltage breakdown across main filter capacitors and control PCBs.
• Flame-Retardant Resin Encapsulation: The filter circuit is sealed within a robust metal housing using flame-retardant potting resin. This protects internal components from conductive workshop dust and moisture while providing efficient thermal dissipation during prolonged high-current operation.

🛠 On-Site Filter Replacement Guide & Avoiding Ground Loop Interference and Terminal Arc Burnout

• 🚨 Critical Installation Rule: Ensure Ultra-Low Resistance Earth Grounding! EMI filters rely on low-impedance earth grounding to shunt common-mode noise currents safely. **Never install 4519-036 onto a painted chassis plate without scraping the mounting area down to bare metal!** High ground impedance prevents interference dissipation, rendering the filter ineffective and creating floating chassis voltages that risk operator electric shock and PCB communication errors.
• Inspect Input and Output Terminal Screws: When replacing 4519-036, tighten all power screw terminals to OEM torque specifications. Loose power connections under high input currents create localized arcing and severe heat, melting filter terminals and damaging wiring insulation.
• Check Power Grid Input Phase Balance: Before restoring power to the welding machine, verify that the 380V three-phase supply is balanced within 5%. Severe phase imbalance overloads internal choke windings, leading to premature filter saturation and overheating.

• Complete OTC Welding Power Source Spare Parts BOM: Stable welder performance requires matching power components. To procure compatible diode modules (such as 100-2547), main control PCBs, and contactors, check our technical catalog for full BOM diagrams to ensure accurate part selection.
