Name: 4813-001 Solenoid Valve | OTC Welder Shielding Gas Control Valve
Brand: OTC DAIHEN
SKU: 4813-001

OTC Daihen Genuine Welding Gas Solenoid Valve 4813-001 (Gas Control Valve)

4813-001 is an official OEM genuine gas solenoid valve custom-engineered by OTC Daihen for gas-shielded welding machines (MIG/MAG/TIG). Acting as the master gatekeeper for CO2, argon, or mixed shielding gas, this valve features an industrial pure-copper excitation coil and a corrosion-resistant, high-durability internal sealing spool. It responds in milliseconds to PCB logic commands, ensuring accurate pre-flow gas shielding before arc ignition and post-flow protection during crater solidification. Replacing faulty valves with original 4813-001 components eliminates continuous gas leakage (high gas bills), weld porosity caused by delayed gas flow, and spool sticking.

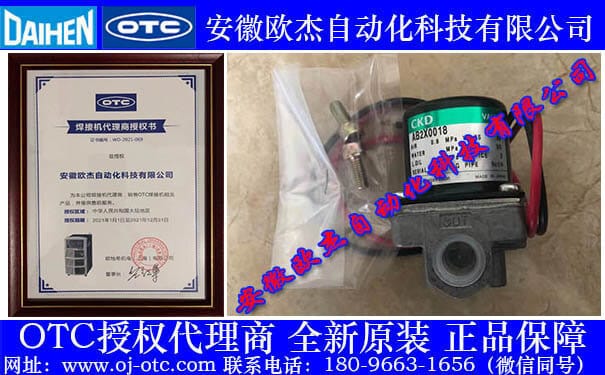

OTC Daihen Genuine Solenoid Valve 4813-001 Front View — Figure 1: Front View of Genuine OTC Welding Shielding Gas Solenoid Valve 4813-001

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Part Number	4813-001
Product Type	Shielding Gas ON/OFF Control Solenoid Valve
Compatible Models	Widely compatible with OTC Gas-Shielded Welding Machine Series (MIG/MAG/TIG)
Material & Processing	Industrial pure-copper excitation coil + wear-resistant sealing spool
Quality Guarantee	100% genuine OEM pneumatic part; millisecond response & leak-free

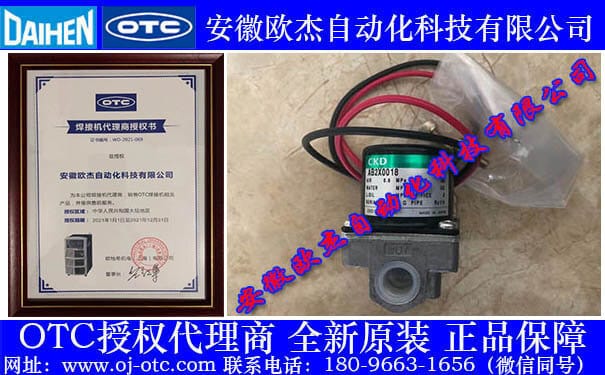

OTC Solenoid Valve 4813-001 Side Fittings — Figure 2: Precision Gas Inlet/Outlet Fittings and Spool Sealing Structure on 4813-001

OTC Solenoid Valve 4813-001 Rating Plate — Figure 3: Close-Up of OEM Electrical Working Parameters and Factory Code on 4813-001

🔧 On-Site Pneumatic Installation & Solenoid Valve Guide (Essential Reading)

Number One Cause of Leaking Valves: When shielding gas continues hissing after welding stops, the valve is rarely worn out—rust, scale, or dust from gas cylinders has jammed the internal sealing gasket! Purge gas hoses before connecting them to new valves, and install an inline gas filter after the regulator to prevent debris from clogging spools.
Never Reverse Inlet and Outlet Ports: Observe directional airflow arrows (IN/OUT) stamped on the valve body. Reversing inlet and outlet tubes allows cylinder gas pressure to force the spool open, causing continuous gas leakage that cannot be shut off electrically.
Coil Burnout Diagnostics: If new solenoid coils burn out repeatedly, test PCB driving voltage with a multimeter. Excessively high driving voltage or mechanically jammed spools overheat and melt excitation coils.
Secure Hose Clamping: Push clear gas hoses fully onto barbed nipples and secure with quality hose clamps or nylon ties. Micro-leaks waste expensive shielding gas and aspirate air into the stream, causing weld porosity.
