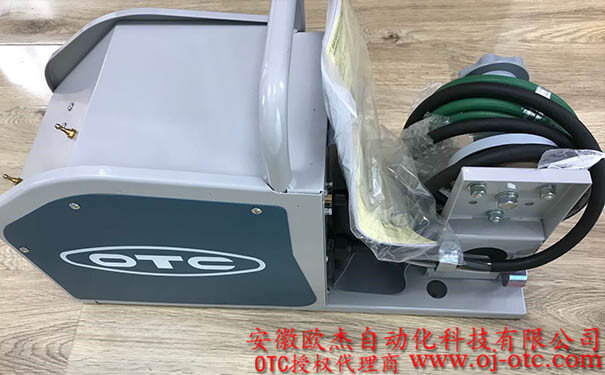

OTC DAIHEN CM-7402 Standard Air-Cooled MIG/MAG Wire Feeder
The OTC DAIHEN CM-7402 is the standard air-cooled wire feeder tailored for OTC’s premier digital and pulse MIG/MAG welding machine series (including DM350/500, DP400/500, and P400/500). Engineered specifically for carbon steel and stainless steel fabrication, it utilizes an optical encoder and digital motor feedback loop to regulate wire feed speed with micro-second precision. Its robust 4-roll drive assembly provides superior traction, eliminating wire slip and ensuring arc length stability across automated and manual welding operations.
⚙️ Core Technical Specifications & Drive Roll Matrix
| Drive Roll Model | Wire Ø (mm) |
|---|---|
| K5439B05 (Factory Standard) | 1.2 / 1.2 mm |
| K5439B09 | 0.6 / 0.8 mm |
| K5439B13 | 0.8 / 0.9-1.0 mm |
| K5439B12 | 0.9-1.0 / 1.2 mm |
| K5439B04 | 1.2 / 1.4 mm |
| K5439B11 | 1.2 / 1.6 mm |
| K5439B06 | 1.4 / 1.4 mm |
| K5439B01 | 1.4 / 1.6 mm |
| K5439B07 | 1.6 / 1.6 mm |
| Welding Current Range | Recommended Cable Cross-Section |
|---|---|
| ≤ 200 A | 38 mm² |
| 200 A < Welding Current ≤ 350 A | 60 mm² |
| 350 A < Welding Current ≤ 500 A | 80 mm² |
🔧 Engineering & Operational Guide
- Digital Feedback Calibration: Because the CM-7402 relies on optical encoder feedback, ensure the internal motor sensor connection remains sealed against moisture and magnetic dust to preserve speed accuracy.
- Cable Assembly Matching: Always pair this feeder with OTC original power and control cables rated for your machine’s max amperage (e.g., 70 mm² for 400A, 95 mm² for 500A) to prevent voltage drop.
- Drive Roll Tension: Adjust the top pressure arms equally on both inlet and outlet drive rolls to maintain balanced, linear pushing force along the wire column.
