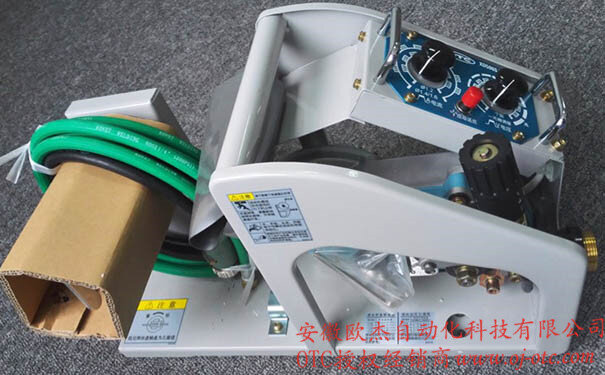

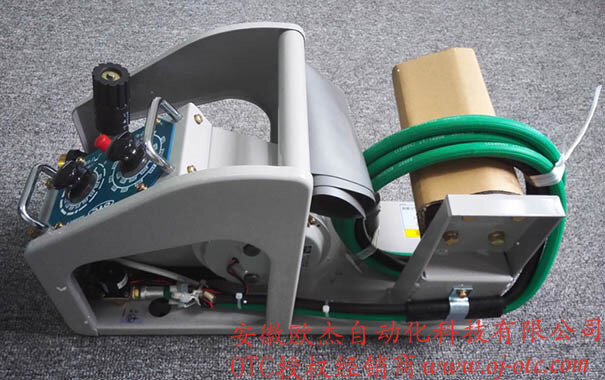

OTC DAIHEN CM8202 Integrated Remote Control Wire Feeder

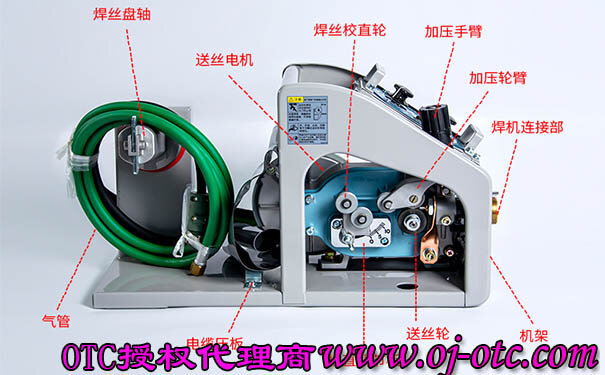

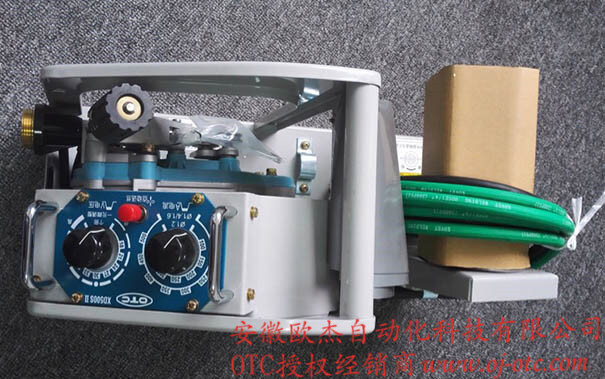

The OTC DAIHEN CM8202 is an advanced wire feeder equipped with an integrated remote control panel, engineered specifically for the OTC XD350SII and XD500SII welding platforms. Designed to improve shipyard and large structural workshop ergonomics, it eliminates the need for separate wired remote control pendants. Operators can adjust welding current, arc voltage, and inching speeds directly from the robust feeder faceplate. Featuring OTC’s proven 4-roll drive assembly, it guarantees smooth wire propulsion through extended interconnection cables.
⚙️ Core Technical Specifications & Drive Roll Matrix
| Specification Parameter | Specification Details |
|---|---|
| Model | CM8202 |
| Compatible Power Source | XD350S / XD500S |
| Wire Type | Solid / Flux-Cored Wire |
| Wire Diameters | 0.8 / 1.0 / 1.2 / 1.4 / 1.6 mm |
| Wire Feed Speed Range | 2.2 ~ 22 m/min |
| Wire Spool Dimensions | Max. 25 kg / Shaft Ø 50 mm |
| Net Weight | Approx. 12 kg |
🔧 Engineering & Operational Guide
- Potentiometer Protection: While the adjustment dials are industrial-grade, protect the feeder faceplate from direct impacts or heavy spatter buildup by using a clear protective flip-cover.
- Inching Function Usage: Always use the dedicated ‘Wire Inch’ button on the feeder when feeding new wire through the torch assembly; do not pull the torch trigger, as this electrifies the wire and wastes shielding gas.
- Voltage Sensing Care: When operating with long interconnection cables, ensure the voltage sensing lead is connected cleanly to the workpiece to maintain accurate closed-loop arc voltage regulation.
