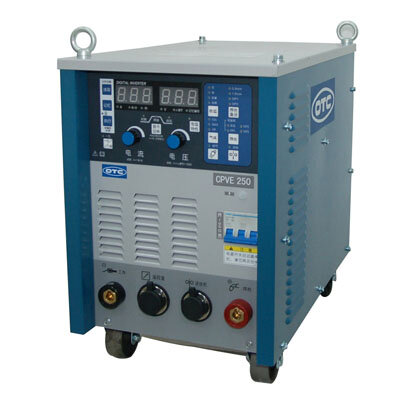

CPVE250 IGBT Inverter Controlled Welder

OTC DAIHEN CPVE250 Full-Digital IGBT Inverter Thin-Plate CO₂/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN CPVE250 (Official Model: CPVE-250) is a full-digital IGBT inverter welding machine dominating “thin-plate welding” sectors such as automotive components, motorcycle frames, and metal furniture. Housing OTC’s newly optimized low-spatter waveform control algorithms within a compact 43kg chassis, this equipment overcomes the industry challenge of low-current arc instability, achieving superior ignition success rates and exceptionally smooth, low-heat-input arcs. Its standard digital soft-touch panel and 30-group parameter memory significantly boost assembly line efficiency and quality consistency.

🌟 Core Digital Advantages & Thin-Plate Process Selling Points

• Thin-Plate High-Quality Welding Specialization: The greatest challenges in automotive sheet metal and furniture tube welding are “burn-through” and “excessive spatter.” The CPVE250 features deep inverter-level optimization for low-current zones (30A-200A), producing an exceptionally soft arc with precise heat input control. This ensures clean, flat weld formation on 0.8mm or thinner sheets without burn-through while suppressing spatter to an absolute minimum.
• 30-Group Parameter Memory Library: Stores up to 30 sets of customized welding parameters. Engineers can pre-program optimal voltage and current settings for common thin-wall tubing and sheet thicknesses. Channels 1 to 10 support instant recall via the handheld remote control box, enabling operators to switch process parameters instantly without returning to the main power source.
• Flawless Ignition & Arc Characteristic Fine-Tuning: Arc ignition is prone to spatter and wire stubbing. The CPVE250 incorporates an advanced digital ignition energy compensation algorithm for clean, instantaneous starts. The front-panel “arc characteristic setting” allows stepless adjustment of arc softness and stiffness, perfectly adapting to flat, vertical, and complex joint welding positions.
• Error-Proof Lock & Digital Interface: Dustproof and waterproof digital soft-touch membrane panels significantly extend operational lifespan. The integrated “key lock protection” allows supervisors to lock validated welding specifications, completely preventing line operators from arbitrarily tampering with parameters and causing hidden batch quality defects.

📋 CPVE250 Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 250A Thin-Plate Welder Field Maintenance & Troubleshooting Guide

• Thermal Limits for 60% Rated Duty Cycle: The CPVE250 is engineered specifically for thin-plate and low-current applications (tens to two hundred amperes). While its peak output reaches 300A, its rated duty cycle above 250A is 60%. Using this machine for continuous heavy seam welding on medium-to-thick plates at 300A is strictly prohibited! Overloading the machine will trigger thermal shutdown protection and significantly shorten IGBT operational lifespan.
• Wire Feeder Pressure Adjustment for Thin Wire: Thin-plate welding typically utilizes fine 0.8mm or 1.0mm welding wire with lower column strength. If you experience wire feed hesitation or arc stuttering, never forcefully over-tighten the pressure arm knob on the CM-6201 wire feeder! Excessive pressure crushes fine wire into a flattened shape that jams inside the contact tip. Instead, remove the feed roll, clean copper scale from the V-grooves using a wire brush, and replace the contact tip with the correct bore size.
• Protecting Soft-Touch Panels in Grinding Environments: The digital soft-touch membrane panel provides excellent water and dust resistance. However, operators in automotive sheet metal and furniture shops often wear gloves covered in hot grinding sparks or sharp metal burrs. Instruct operators never to press the control panel with sharp objects or scorching-hot gloves, as this can burn through the protective film, allow dust ingress, and cause key failure.
