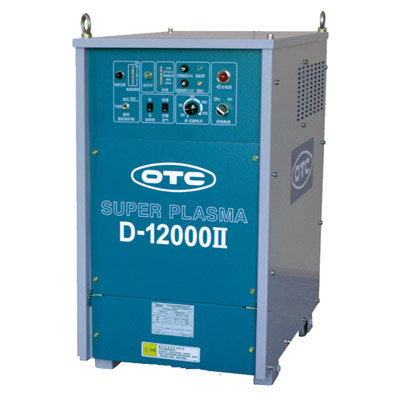

OTC DAIHEN D12000 Heavy-Duty Water-Cooled Plasma Cutting System
The OTC DAIHEN D12000 (Power Source Model: TRC-122) is an industrial heavyweight air plasma cutting system engineered for extreme continuous duty metal cutting. Delivering a powerful 120 Amperes at a 100% continuous duty cycle, it is built to slice through thick carbon steel, stainless steel, and aluminum plates (severance cutting up to 60 mm). To sustain this immense thermal output, the D12000 includes the standalone CU-102 water cooling unit, which actively circulates coolant directly through the plasma torch electrode and nozzle. This liquid-cooled architecture extends consumable life by up to 500% compared to air-cooled models, making it the premier choice for automated CNC cutting tables and heavy shipyard dismantling.
⚙️ Core Technical Specifications & Performance Matrix
| Specification Parameter | Unit | OEM Specification Data | |
|---|---|---|---|
| Power Source Model | – | TRC-122 (includes CU-102 Water Cooling Unit) | |
| Input Voltage & Frequency | V, Hz | 3-Phase, 380V±10%, 50/60 Hz | |
| Rated Output Current | A | 120 | |
| Output Current Range | A | 30 ～ 120 | |
| Rated Duty Cycle | % | 100% (Heavy-Duty Continuous) | |
| Dimensions (W×D×H) | mm | 460 × 755 × 820 | |
| Total Net Weight | kg | 160 | |
| Compatible Water-Cooled Torches (Optional per Application) |
Handheld Short Handle Torch | – | CTW(M)(L)-1201 |
| Handheld Long Handle Torch (High-Temp Radiation Protection) | – | CTZW(M)(L)-1201 | |
| Automated Straight Torch (for CNC/Carriage) | – | CTPW(M)(L)-1201 | |
🔧 Engineering & Operational Guide
- Coolant Circulation Monitoring: Never initiate the plasma arc without verifying water coolant flow from the CU-102 cooling unit. A flow restriction will vaporize the internal torch electrode within seconds of arc ignition.
- Air Pressure & Flow Rate: At 120A continuous output, high air consumption is required to eject heavy molten dross from thick-plate kerfs. Maintain compressor supply pressure at no less than 0.6 MPa (6.0 bar) during active cutting.
- Automated CNC Piercing: When integrated with a CNC cutting carriage or robot, program an automatic torch height control (THC) pierce retraction to lift the torch to 8–10 mm during initial arc punch, protecting the water-cooled nozzle from upward dross splatter.
