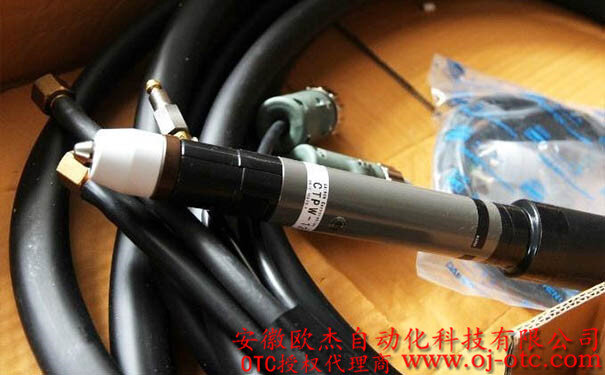

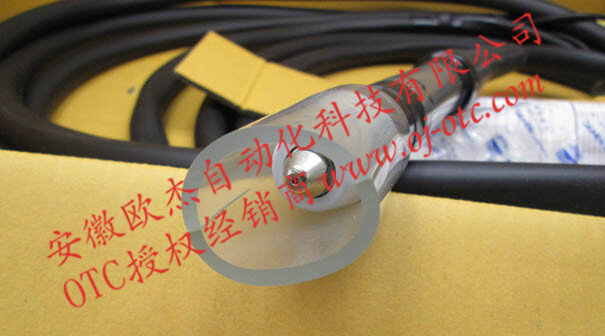

Original OTC DAIHEN 120A Straight-Handle Automated Machine Plasma Cutting Torch CTPW-1201 Series
CTPW-1201 / CTPWM-1201 / CTPWL-1201 series is a premium line of genuine Japanese-imported straight-handle (machine torch / pencil type) plasma cutting torches custom-engineered by OTC DAIHEN for its heavy-duty 120A plasma cutting machine, the D12000. Unlike manual curved-handle torches, the CTPW series features an ultra-rigid, perfectly straight cylindrical body architecture specifically designed for precision clamping on CNC cutting beds, gantry cutting machines, portable carriages, and cutting robots. It stably carries up to 120A of cutting current to achieve high-speed, deep-penetration automated sheet metal profiling. To accommodate expansive workshop gantry spans, the series offers heavy-duty, drag-chain resistant cable assemblies in 10m, 20m, and up to 30m lengths—serving as the standard thermal firepower for heavy structural steel profiling and automated mass production lines.
✨ Core Technical Advantages of CTPW-1201 Series
⚙️ Custom-Engineered for Automation: Standard Machine Clamping Profile
The CTPW torch body utilizes a standard-outer-diameter high-strength insulating shell. Eliminating manual trigger interference, it allows CNC cutting machines, pipe intersection profiling machines, and portable tractor fixtures to clamp the torch securely. This guarantees zero deflection during high-speed cutting, ensuring strict cut perpendicularity.
⚡ 120A Extreme Arc Compression & High-Speed Cutting
Built to harness the massive power of the D12000 cutting machine. Precision-machined internal gas swirl rings and nozzle orifice tolerances generate a highly concentrated, rigid high-temperature plasma arc column at 120A, effortlessly severing medium and thick plates with dross-free, clean cut surfaces.
📏 30-Meter Drag-Chain Resistant Cable (Ideal for Gantry Systems)
To satisfy the expansive movement requirements of CNC gantry cutting machines, the series offers the CTPWL-1201 with a 30-meter ultra-long cable assembly. Encased in an abrasion- and flex-resistant outer sheath, the cable withstands millions of reciprocating bending cycles inside track drag chains without compromising gas or electrical signal transmission.
📋 Technical Specifications & Model Matrix
| Specification Attribute | Detailed Parameter / Corresponding Model |
|---|---|
| Rated Cutting Current / Compatible Machine | 120 A / OTC DAIHEN D12000 Plasma Cutting Machine |
| Torch Profile / Application | Cylindrical Straight Handle (Machine Torch) / CNC Beds & Automation |
| 🔹 10 m Standard Model (Approx. 9.5 kg) | CTPW-1201 |
| 🔹 20 m Extended Model (Approx. 9.5 kg) | CTPWM-1201 |
| 🔹 30 m Ultra-Long Model (Approx. 14.0 kg) | CTPWL-1201 |
Note: For detailed part numbers of copper electrodes, nozzles, and swirl rings, please contact our technical support team for the complete exploded diagram manual.
🛠️ Automated Plasma Torch Maintenance & Troubleshooting Guide (Essential Reading)
- Devastating Impact of Moisture in Compressed Air: 120A heavy-duty plasma cutting demands ultra-dry compressed air. If air compressor refrigerated dryers fail, moisture and oil enter the high-temperature arc directly. Moisture triggers violent internal arc explosions, carving deep cavities into brand-new electrodes or blowing out nozzles within minutes! Over 90% of premature consumable failures on automated lines are caused by wet air supplies.
- Hidden Conductor Fatigue in Drag Chains: When utilizing 20m or 30m straight-handle torches on gantry cutting machines, cables undergo millions of reciprocating bending cycles inside track drag chains. If twisted during installation, internal arc control wires can suffer fatigue fractures (manifesting as normal power supply status but failure to initiate an arc). Ensure cables are laid perfectly straight with adequate bending slack inside drag chains.
- Torch Crushing from Incorrect Clamping: The CTPW cylindrical outer shell is made of insulating material. When mounting the torch onto CNC fixture holders, you must clamp strictly on the designated reinforced clamping zone! Clamping in the wrong position or overtightening will crack the insulating barrel or crush internal copper gas tubes, causing restricted airflow and severe arc deflection.
- High-Voltage Flashover from Loose Consumables: Automated continuous cutting generates significant mechanical vibration. If electrodes or outer ceramic shield cups are not tightened securely with a dedicated wrench during consumable replacement, microscopic gaps remain. At 120A high-voltage ignition, arcing occurs within these gaps, melting and destroying the entire torch head instantly!
📞 Genuine OEM Parts · Global Shipping
Anhui Oujie Automation Technology Co., Ltd. is an authorized OTC DAIHEN distributor. We guarantee 100% brand-new, genuine OTC DAIHEN CTPW-1201 automated straight-handle torch assemblies and durable OEM consumables, firmly rejecting inferior aftermarket parts prone to arc explosions!
✅ Fast global delivery with free expert technical guidance on automated drag-chain wiring and compressed air moisture inspection.
