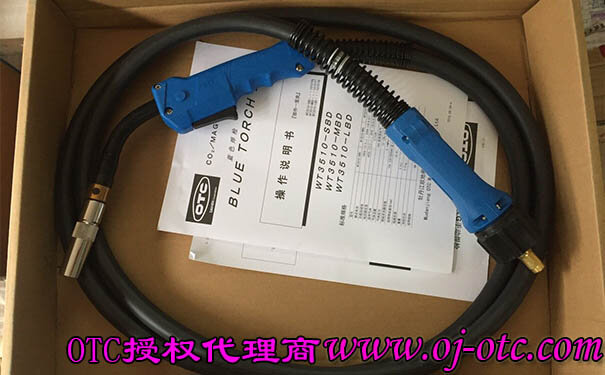

WT3510 MIG/MAG Welding Torch

Genuine Japanese OTC DAIHEN WT3510 Series Manual MIG/MAG Welding Torches

OTC DAIHEN WT3510 Series represents a premier line of authentic Japanese imported air-cooled Gas Metal Arc Welding (GMAW/MIG/MAG) torches engineered specifically for medium-to-thick plate heavy-current manual welding. Delivering up to 350A of robust welding current at a 40% duty cycle, this series excels across CO₂ and mixed gas (MAG/MIG) welding processes. To satisfy diverse workstation operating reach requirements, the series is categorized into three dedicated length specifications: WT3510SBD (3-Meter), WT3510MBD (4.5-Meter), and WT3510LBD (6-Meter). Despite its heavy-current capacity, the series retains OTC signature lightweight ergonomics, pairing a 360° freely rotating modular swan neck with highly flexible coaxial power cables to provide operator comfort during continuous, high-intensity welding shifts.

✨ Key Technical Advantages & Engineering Features

• Precision Length Matching: Available in 3m (SBD), 4.5m (MBD), and 6m (LBD) lengths, matching operational requirements from compact manufacturing cells to expansive structural steel assembly bays.
• 360° Omnidirectional Rotating Swan Neck: The modular swan neck rotates 360 degrees continuously without tool adjustment. Welders can orient the nozzle to accommodate complex joint geometry, maintaining ergonomic wrist postures inside cramped structural cavities.
• Lightweight Handling Under Heavy Current: Formulated from heat-resistant polymer composite sheathing, the air-cooled coaxial cable provides efficient thermal dissipation for 350A currents while reducing overall torch weight (the 3-meter model weighs only 3.0kg), eliminating heavy dragging fatigue.
• Upgraded All-Metal Fasteners: Rear connector locking nuts mating with wire feeders are upgraded to machined steel/brass, resisting thread stripping and mechanical fracturing caused by dragging heavy power cables across workshop floors.

🏭 Typical Heavy Manufacturing Applications

Leveraging a 350A current rating and exceptional handling flexibility, the WT3510 series serves as standard equipment across demanding metal fabrication industries:

• Heavy Structural Steel & Bridge Construction: Excels at continuous heavy-current fillet welds, root passes, and capping passes on medium-to-thick carbon steel plates.
• Shipbuilding & Heavy Machinery Fabrication: Delivers deep weld penetration and high deposition rates during assembly of excavators, wheel loaders, and maritime hull structures.
• Commercial Vehicles & Trailer Manufacturing: Utilizing the 360° rotating swan neck, welders execute all-position welds across chassis frames, trailer beds, and complex tubular相贯线 joints effortlessly.

📋 Technical Specifications & Current Load Matrix

Rated current capacities across various duty cycles (load duration rates) for WT3510 series torches equipped with standard 1.2mm precision contact tips are detailed below:

🔍 Exploded Views & Consumables Quick-Reference

To facilitate rapid routine maintenance and procurement of front-end wear parts (contact tips, insulating covers, gas diffusers, nozzles, and wire guide liners), explore our comprehensive exploded diagrams and OEM part number catalogs:

🔍 OTC Daihen WT3510SBD Welding Torch Parts & Consumables Quick-Reference Catalog

🛠️ Maintenance Best Practices for 350A MIG/MAG Torches

• Adhere Strictly to 40% Duty Cycle Limits: Operating as an air-cooled torch under heavy 350A thermal loads, the rated duty cycle is 40%. Allow adequate cooling intervals during continuous deep-penetration welding on thick plates; never operate beyond duty cycle limits, preventing thermal destruction of internal power cable sheathing and insulating shrouds.
• Maintain Smooth Cable Routing: The heavy-gauge coaxial cable requires generous bending radii during movement. When utilizing the WT3510LBD (6-Meter model), prevent sharp kinks or tight coiling, which generate internal friction against the wire guide liner, accelerating wire feeder motor wear and causing wire feeding stutter.
• Inspect Contact Tips & Gas Diffusers Periodically: High-current welding generates intense arc heat and spatter. Spray OEM anti-spatter fluid frequently and clean nozzle interiors. If contact tip bores wear into oval shapes or tip mounting threads loosen, replace consumables immediately to avoid arcing short circuits.
