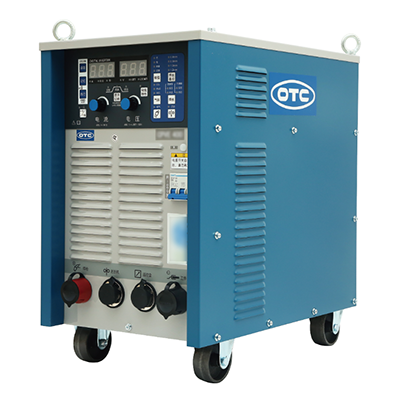

CPVF500 IGBT Inverter Controlled Welder

OTC DAIHEN CPVF500 Full-Digital IGBT Inverter CO₂/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN CPVF500 is a full-digital IGBT inverter MIG/MAG welding machine engineered specifically for continuous, high-intensity heavy industrial manufacturing. Its greatest technical breakthrough lies in an outstanding 100% rated duty cycle, enabling 24-hour uninterrupted deep-penetration welding on thick plates even at the peak output of 500A. Benefiting from OTC’s proprietary full-digital waveform control technology, the CPVF500 delivers immense power while maintaining an exceptionally stable arc with minimal spatter. Furthermore, the equipment innovatively integrates a “Manual Metal Arc (MMA)” welding mode and supports memory storage for up to 30 welding conditions, making it an all-round welding workstation combining heavy-duty endurance with digital intelligence.

🌟 Core Digital Advantages & Heavy-Duty Process Selling Points

• 100% Extreme Duty Cycle: Tailored for harsh industrial environments such as heavy steel structure fabrication and shipbuilding that demand prolonged, continuous seam welding. At 500A full-load output, it completely eliminates the bottleneck of conventional welders (typically 60% duty cycle) being forced to shut down for thermal dissipation, achieving an exponential leap in production efficiency.
• Full-Digital Synergic Control & 30-Group Process Library: Integrates an advanced synergic voltage setting function where arc voltage automatically matches the welding current. It simultaneously stores 30 sets of different welding parameters (10 of which can be instantly recalled directly via the handheld remote control box), paired with a dual panel/password lock to eradicate blind parameter tampering by unauthorized shop-floor personnel.
• Arc Softness Fine-Tuning & Soft Arc Mode: Provides a digital arc characteristic adjustment knob, allowing welders to customize arc rigidity and softness according to welding positions (flat, vertical, overhead). For 1.2mm solid low-carbon steel wire under CO2 shielding gas, an exclusive “Soft Arc Mode” is added, significantly improving edge wetting and weld bead aesthetics.
• Multi-Modal & Redundant Safety Protections: Masterful in MIG/MAG welding while integrating an independent MMA mode for true multi-process capability. The system comes standard with comprehensive passive safety mechanisms, including torch switch anti-accidental trigger protection and an automatic gas shut-off function after gas-check timeouts, safeguarding workshop gas safety and equipment lifespan.

📋 CPVF500 Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical and physical parameter configuration table, rigorously restructured and unit-decoupled (strictly adhering to industrial factory specifications):

🔧 100% Duty Cycle Full-Digital Welding Machine Field Maintenance & Troubleshooting Guide

• Torch Cable Thermal Overload Warning for 100% Duty Cycle Operation: Although the CPVF500 power source supports an incredible 100% duty cycle (24/7 non-stop operation), the standard factory air-cooled torch WT5000-SBD typically has a rated duty cycle of only 60% at 500A. If your manufacturing process involves continuous, automated straight-seam welding of ultra-long H-beams at 500A, an air-cooled torch will burn out due to severe thermal overload. For such extreme duty conditions, we strongly advise upgrading to an OTC genuine heavy-duty water-cooled torch (such as the WTCAW series) paired with a dedicated recirculating water cooler.
• Workpiece Grounding Requirements for the “Constant Penetration Function”: The CPVF500 incorporates an advanced digital constant penetration control feature (automatically fine-tuning current to maintain consistent penetration when torch height fluctuates slightly). The feedback for this function relies entirely on accurate loop voltage sensing. You must ensure that the workpiece contact area gripped by the grounding clamp (BKPT-7002 earth cable) is completely free of heavy rust, scale, and insulating paint. If poor grounding causes a high voltage drop, the motherboard’s smart penetration compensation algorithm will fail, leading to erratic current fluctuations during welding.
• Smart Gas Valve Protection After Gas-Check Timeout: When an operator presses the “Gas Check” button on the remote box to verify shielding gas flow and forgets to turn it off, the equipment will automatically shut off its internal solenoid valve after 2 minutes to prevent depleting the gas cylinder. If you encounter a situation where “gas flowed normally yesterday but suddenly stopped today,” check the panel status first; this is typically the system’s safety protection mechanism triggering rather than an equipment malfunction.
