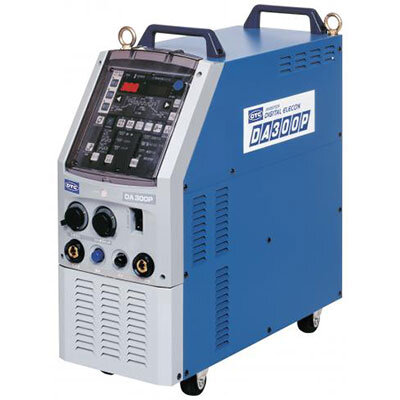

DA300P AC/DC TIG & MMA Welder

OTC DAIHEN DA300P AC/DC TIG & MMA Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN DA300P is a celebrated model in lightweight industrial AC/DC TIG welding. Within a compact 45kg chassis, it integrates four core operating modes: DC TIG, AC TIG, AC/DC Hybrid TIG (MIX TIG), and Manual Metal Arc (MMA) welding. Its primary process breakthrough lies in stepless AC frequency modulation and arc concentration control, allowing microscopic regulation of thermal input. This transforms the DA300P into an indispensable tool in bicycle/e-bike aluminum frame fabrication, automotive lightweight thin-sheet assembly, and precision instrument manufacturing where preventing burn-through on thin fillet and butt joints is critical.

🌟 Core Technical Heritage & Classic Process Selling Points

• Pioneering Torch Switch Current Control: Welders adjust output current on the fly directly via the torch trigger without interrupting the welding arc or turning around to reach the power source panel, optimizing handling ergonomics for variable-section workpieces.
• Stepless AC Frequency Modulation: When welding ultra-thin aluminum or magnesium alloys, operators adjust AC frequency to control arc cone expansion and constriction. High-frequency AC concentrates arc density, solving arc wander and root penetration failure in thin-sheet internal fillet joints.
• AC/DC Hybrid TIG (MIX TIG) Mode: Alternates between AC output (shattering surface oxide films) and DC output (deepening penetration), combining cathodic cleaning with deep weld pool formation to achieve flawless fish-scale beads even on assemblies with varying thicknesses.
• Multi-Mode AC Arc Characteristics: Features three selectable AC waveform output profiles—”Hard,” “Standard,” and “Soft”—to suppress high-frequency acoustic noise while tailoring thermal input to base metal thickness.

🏭 Classic Industrial Applications & Process Scope

• Two-Wheeled Vehicles & Sports Equipment: High-quality manual and semi-automatic TIG welding for aluminum alloy bicycle frames, motorcycle exhaust pipes, and shock absorbers.
• Precision Pressure Vessels & Piping: Single-sided welding with double-sided bead formation on thin-wall stainless steel fittings and sanitary food/pharmaceutical vessels with high NDT qualification rates.
• Automotive Lightweight Chassis: Spatter-free, soot-free AC/DC pulse joint welding for aluminum alloy subframes and suspension control arms.

📋 DA300P Core Technical Specifications Historical Archives

Below is a detailed four-column electrical and physical parameter matrix covering the machine’s complex AC/DC multi-mode array, rigorously unit-decoupled (adhering to factory archives):

🔧 DA300P Legacy Aluminum Welder Maintenance & Troubleshooting Guide

• Thermal Management for 40% Rated Duty Cycle: Engineered primarily for portability and thin-sheet precision welding, the DA300P is rated at a 40% duty cycle at its 300A limit. If forced to execute continuous high-current seam welding on thick aluminum plates for over several minutes, internal inverter modules will trigger thermal shutdown protection. In hot summer workshops, if thermal alarms occur frequently, lower welding current or install external auxiliary cooling fans pointing at the chassis.
• Critical Threshold for Air-to-Water Cooled Torch Switching: For continuous AC aluminum welding above 180A–200A, you must abandon air-cooled AWD-26 torches in favor of AWD-18 water-cooled torches connected to a recirculating water cooler! Tungsten electrode thermal loads are severe during AC welding; operating air-cooled torches without coolant flow melts copper neck components and burns out expensive control cables carrying torch switch current adjustment wiring.
• AC Aluminum Tungsten Tip Preparation Rule: During AC TIG welding of aluminum alloys, cathodic bombardment naturally balls the tungsten electrode tip into a hemisphere. Never grind pure tungsten or ceriated tungsten electrodes into sharp needle points as done in DC stainless steel welding! Overly sharp tungsten tips fracture and shatter under high AC currents (tungsten inclusion), contaminating otherwise pure aluminum weld beads.
