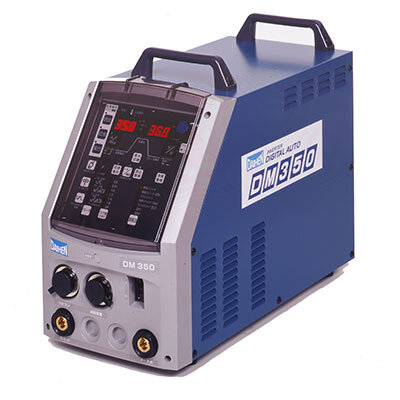

DM350 Welder

OTC DAIHEN DM350 Full-Digital 80kHz IGBT Inverter Dedicated Robotic Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN DM350 is a full-digital inverter MIG/MAG welding machine custom-engineered for industrial robots and high-end automated machinery. Within an ultra-lightweight 30kg compact chassis lies an 80kHz ultra-high-frequency IGBT soft-switching inverter. Working in tandem with innovative “digital electronic reactor control” and an optical encoder closed-loop wire feeder, the DM350 eliminates industry bottlenecks such as arc drift and ignition instability during high-speed automated runs. It serves as an efficient heart for automotive parts, motorcycle frame, and hardware pipe assembly lines executing “machine-replacing-human” upgrades.

🌟 Core Automation Innovations & Process Selling Points

• 80kHz High-Speed Inverter & Digital Reactor: Standard welders operate around 20kHz, whereas the DM350 achieves an 80kHz ultra-high frequency, quadrupling arc response speed to grid fluctuations and droplet transfer! An integrated digital electronic reactor allows stepless micro-fine-tuning of arc softness and stiffness across the entire current range. During high-speed welding (e.g., 1.5m/min), arc voltage remains rock-solid, reducing edge undercutting defect rates to near zero.
• CAN High-Speed Bus Seamless Communication: As an authentic automation power source, it abandons legacy analog I/O wiring in favor of CAN bus digital communication. Achieving microsecond data handshaking with OTC robotic arms and external PLCs, it expands workstation collaborative capabilities, elevating ignition success rates and crater-filling fullness exponentially.
• 4-Roll Constant-Speed Feeder with Encoder Feedback: Robotic cables undergo severe bending during complex arm maneuvers, causing sudden feeding resistance spikes. The DM350 comes standard with the CM-7401 4-roll drive wire feeder equipped with optical encoder feedback. Monitoring motor RPM tens of thousands of times per second and instantaneously compensating torque, it ensures wire feeding speed remains rock-solid regardless of mechanical arm posture.
• Ultra-Lightweight 30kg Compact Host: For automation cells where floor space is at a premium, the DM350 measures only 250×640×430 mm. High power density allows effortless integration on top of robot control cabinets or within compact automated machinery.

📋 DM350 Core Technical Specifications & Automation Configuration Matrix

Below is the detailed electrical parameter table and original automation configuration matrix, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 Dedicated Robotic Digital Welder Field Integration & Guide

• Cycle Time Warning for 60% Duty Cycle in Automated Lines: Remember the DM350 is rated at a 60% duty cycle. While robots operate tirelessly, if your production line requires continuous, non-stop long-seam welding at 350A, never allow robots to weld continuously for more than 6 minutes! Program a mandatory 4-minute idle/cooling period. If processes demand 100% full-load continuous welding, upgrade immediately to 400R or 500A heavy-duty power sources to prevent thermal shutdown alarms on the 30kg host.
• Electromagnetic Shielding Rule for CAN & Encoder Cables: DM350 robotic synergy relies heavily on CAN communication lines and microvolt encoder feedback from the CM-7401 wire feeder. In cable bridge layouts, communication and encoder feedback lines must utilize shielded twisted-pair wiring separated from thick welding power cables! Never bundle them parallel over long distances; electromagnetic radiation from high-current arc ignition causes “Feeder Error” alarms or erratic wire stuttering.
• Mandatory Dust Cleaning for High Power Density Inverters: Packing 350A output into a 30kg chassis requires highly compact internal cooling ducts. In automotive stamping/welding workshops, you must blow out motherboard and IGBT cooling fins every two weeks using dry compressed air below 0.15MPa. Metallic dust accumulation across narrow pin spacing easily triggers 80kHz high-frequency creepage short circuits, destroying the mainboard.
