XD500SII Thyristor Welder

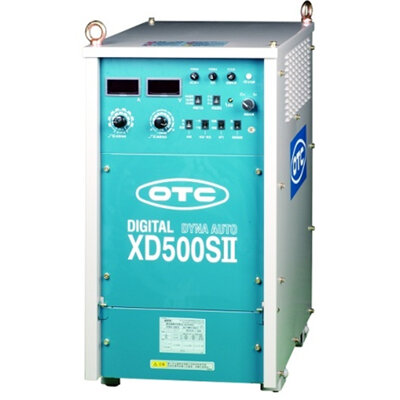

OTC DAIHEN XD500SII Microcomputer-Controlled Thyristor CO₂/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN XD500SII (Official Model: CPXDS-500II) is a heavy-duty 500A-class MIG/MAG welding machine that seamlessly merges the “extreme rugged durability of traditional thyristor (SCR) architectures” with the “precision digital control of microcomputer processing.” Serving as an armored power source in heavy automotive manufacturing, shipbuilding, and structural steel engineering, it boasts an imposing 169kg solid chassis and an overbuilt pure copper main transformer. Governed by an internal microcomputer chip, the XD500SII resolves the rough parameter tuning common to conventional thyristor machines, achieving synergic smart adjustment and constant penetration control—making it the premier choice for severely dusty, heavy-duty industrial environments.

🌟 Core Heavy-Industrial Advantages & Microcomputer Smart Control Selling Points

• Microcomputer-Controlled Thyristor (Smart Armored Core): Perfectly unites the physical resilience of thyristor architectures—such as surge resistance, dust immunity, and ultra-long service life—with the precision of microcomputer digital control. Even during input grid voltage fluctuations, the internal microcomputer rapidly adjusts the thyristor conduction angle to maintain absolute stability in welding current and voltage.
• Synergic Adjustment & Constant Penetration Technology: Abandons the cumbersome two-knob blind tuning of traditional thyristor equipment. Welders simply set the desired current, and the microcomputer automatically matches the optimal arc voltage. Its exclusive “Constant Penetration Control” automatically compensates current when torch contact-tip-to-work distance (CTWD) changes due to hand fatigue or vibration, guaranteeing completely consistent deep penetration on heavy plates.
• Integrated Remote Box & Wire Feeder Design: Engineered for large structural fabrication where working areas span vast distances, the remote control panel is integrated directly onto the wire feeder. When welders operate at high altitudes or inside ship hulls dozens of meters away from the power source, they can precisely control all welding parameters directly at the wire feeder without running back and forth.
• Overcurrent Safety Protection & Current-Limiting Programs: Features highly agile protection circuitry that instantaneously cuts output during sudden short circuits. For factories enforcing rigorous quality control, the machine supports optional “Current-Limiting Programs” to lock the maximum current output threshold, preventing operators from unauthorized current boosting that causes coarse grain structures and degraded heat-affected zone (HAZ) mechanical properties.

📋 XD500SII (CPXDS-500II) Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and original matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 169kg Behemoth Thyristor Power Source Field Maintenance & Troubleshooting Guide

• Electrical Wiring Rule for 31.5kVA Massive Input Capacity: The XD500SII is a true heavy industrial power consumer, drawing a rated input capacity of up to 31.5kVA. When performing 3-phase 380V installation in the workshop, incoming power supply cables must utilize national standard pure copper wiring, and the circuit breaker capacity must never be lower than 60A! If electrical switchgear rating is insufficient or cable cross-sections are too small, the instantaneous high current surge during 500A full-load arc ignition will easily trigger workshop tripping or cause input power cables to overheat and catch fire.
• Multi-Core Cable Protection for the Integrated Remote Wire Feeder: This equipment integrates the remote control panel directly onto the top of the wire feeder. This requires the multi-core control cable (the control section within BKPT-7002) connecting the main power source to the wire feeder to handle all signal transmissions. When dragging cables across shipbuilding or structural steel job sites, never allow heavy steel plates to crush or forklifts to run over this cable! Severing even a single internal core wire will result in failures such as “Inability to strike arc” or “Synergic adjustment failure with erratic current jumping.”
• Cooling Duct Cleaning Rule for Thyristor Modules: While thyristor (SCR) modules are significantly more rugged and resistant to high-voltage surges than IGBT modules, they generate substantial operational heat. The bottom of the machine houses a powerful cooling fan forcing airflow across huge rectifier bridge cooling aluminum fins. You must blow out internal dust every six months using dry compressed air! If iron powder intermixed with oil sludge completely clogs the gaps between cooling aluminum fins, thyristors will suffer thermal breakdown and explode due to trapped heat.
