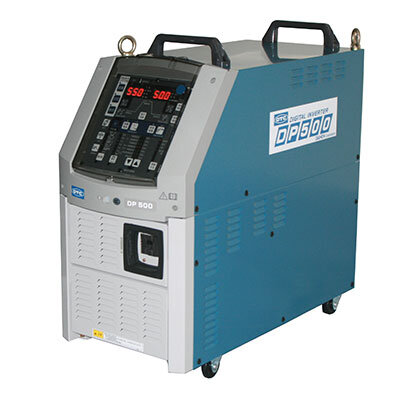

DP400 / DP500 Welder

OTC DAIHEN DP Series (400/500) Full-Digital DC Pulse CO₂/MIG/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN DP Series (DP400 / DP500) was once the dominant full-digital pulse MIG/MAG welding flagship power source in metal fabrication. This series is equipped with an industry-rare 80kHz ultra-high-frequency IGBT soft-switching inverter, granting the welding arc exceptionally high dynamic response speed. To resolve the industry pain point of wire popping during the arc ignition phase of high-current pulse welding machines, the DP Series pioneered capacitor-discharge enhanced arc starting technology, achieving 100% instantaneous stable arc ignition. Its standard 4-roll encoder-feedback wire feeding and intelligent waveform controller allow it to achieve flawless, high-quality welds across carbon steel, stainless steel, aluminum alloys, and galvanized sheets.

🌟 Core Digital Heritage & Versatile Process Advantages

• Capacitor-Discharge Enhanced Arc Ignition (100% Arc Stability): At the microsecond instant of arc striking contact, internal high-voltage capacitors instantaneously release massive energy to break through surface oxide layers and impurities on the workpiece, forcefully establishing the initial arc. This completely eliminates “gun pushing,” “wire stubbing,” and “spatter burnback” during ignition, resulting in extremely smooth and clean arc starts.
• 80kHz Soft-Switching & Intelligent Waveform Control: An inverter frequency of up to 80kHz elevates current waveform control precision to unprecedented heights. Whether executing precision thin-plate spot welding at low currents or continuous seam welding at high speeds, the arc maintains excellent stiffness and an exceptionally low spatter rate.
• 4-Roll Drive & Optical Encoder Wire Speed Closed Loop: Configured as standard with a 4-roll wire feeder featuring an optical encoder. The control board samples encoder rotational speed in real time and conducts high-frequency comparisons with set values to automatically compensate motor torque. This grants total immunity to wire feeding resistance fluctuations caused by torch cable twisting or contact tip wear.
• Dual-Pulse Control & Specialized Optional Software: The system features built-in standard dual-pulse (low-frequency/high-frequency alternating) functionality, automatically producing aesthetically pleasing fish-scale weld appearances. Furthermore, for specialized fabrication requirements, the machine supports optional “Pure Argon Stainless Steel Welding Software,” mastering high-demand clean-grade stainless steel welding applications.

📋 DP400 / DP500 Core Technical Specifications & Dual-Model Configuration Matrix

The two models in this series maintain a rigorous proportional relationship in capacity distribution and original factory accessory configurations. Below is the strictly decoupled electrical and physical parameter comparison table (in accordance with factory historical archives):

🔧 Full-Digital Pulse MIG/MAG Welding Machine On-Site Maintenance & Arc Starting Guide

• Grounding Rule for Capacitor-Discharge Enhanced Arc Ignition: The DP Series’ proud “100% instant arc ignition” relies heavily on peak current instantaneously released by internal high-voltage capacitors. If the workpiece grounding clamp contact area has thick rust-preventive paint, heavy scale, or grease, the high-voltage arc cannot penetrate the insulation to form a conductive circuit. It is strongly recommended to grind the grounding clamp attachment point to bare metal; otherwise, not only will severe “wire popping” spatter occur during ignition, but prolonged poor striking will easily damage the motherboard’s high-voltage discharge module.
• Dust Vulnerability of the 80kHz Ultra-High-Frequency Inverter: The equipment incorporates 80kHz ultra-high-frequency IGBT modules, boasting exceptional control precision while demanding higher workshop environmental cleanliness. Once metallic dust (especially fine iron powder generated by grinding) is drawn into the chassis, it easily causes high-frequency creepage between cooling fins and circuit board pins in the rear air duct. Maintenance personnel must open the casing every quarter and blow out dust thoroughly using oil-free, dry compressed air at 0.15MPa or below.
• Gas Purity Requirements for Pure Argon Stainless Steel Optional Software: If your equipment is activated with “Pure Argon Stainless Steel Welding Software” for medical or food-grade pipe processing, ensure the shielding gas source utilizes high-purity argon exceeding 99.999%. Mixing in CO2 is strictly prohibited, as it will render specific digital waveforms completely ineffective, causing weld discoloration and loss of the characteristic silver-white luster and intergranular corrosion resistance of pure argon welding.
