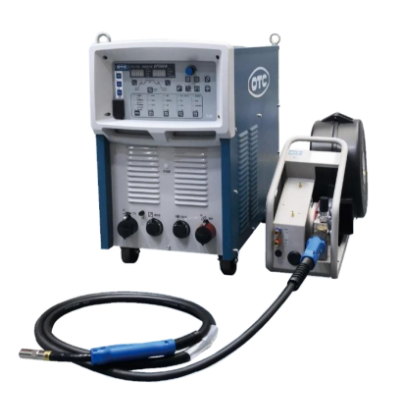

EP500A Double Pulse MIG Welder

OTC DAIHEN EP500A (Welbee Architecture) Dedicated Aluminum Double Pulse MIG Welding Machine In-Depth Technical Analysis

The OTC DAIHEN EP500A is a new-generation full-digital “dedicated aluminum” double pulse MIG shielding gas welding power source developed by OTC for high-end aluminum alloy processing. This equipment incorporates a custom-developed “Smart Core (ASIC)” based on the Welbee architecture, featuring nanosecond (ns) ultra-high-frequency sampling rates. Leveraging formidable low-level computing power, the EP500A elevates aluminum alloy pulse waveform control to peak precision. It delivers exceptional burn-through resistance on thin aluminum sheets while achieving virtually spatter-free performance in thick-plate deep penetration welding. Its exclusive “aluminum double pulse technology” automatically forms aesthetically flawless fish-scale weld seams, making it a premier arc welding equipment for high-speed rail aluminum carriages, new energy battery trays, and high-precision aluminum formwork manufacturing.

🌟 Core Digital Advantages & Aluminum-Specific Process Selling Points

• Welbee Nanosecond Control & Custom Waveforms: Conventional control chips struggle to capture the highly complex droplet dynamics of aluminum alloy welding. The EP500A’s Smart Core utilizes nanosecond-level current/voltage sampling paired with OTC’s exclusive aluminum-optimized pulse waveforms. This ensures silky-smooth droplet transfer, suppressing the violent spatter typically associated with aluminum MIG welding from the root.
• Automatic Double Pulse “Fish-Scale” Bead Molding: By automatically alternating rhythmically between low-frequency and high-frequency pulse currents (double pulse technology), the welder exerts cyclic agitation and cooling control over the molten pool. Welders can achieve regular, brilliant white fish-scale weld seams comparable to high-end TIG welding during continuous straight-line pulling without intentional torch weaving.
• 100-Group Process Library & Full-Chain Traceability: The front panel stores up to 100 sets of welding specifications. Using the built-in USB port, engineers can clone welding parameters across all shop power sources for batch consistency, as well as export output waveforms and error histories to visualize and trace welding defects.
• Constant Penetration & Smart Eco-Loop: Tailored for the rapid thermal conductivity of aluminum alloys, built-in constant penetration control forcefully maintains uniform root penetration even if arc length fluctuates due to hand trembling. It also features smart gas valves and fan sleep mechanisms, automatically shutting off shielding gas and hibernating cooling fans when welding stops for ultimate energy efficiency.

🏭 Typical High-End Aluminum Processing & Automation Integration Scenarios

Available in both trolley-integrated and separated architectures, the EP500A utilizes its robust 500A output to serve across high-end aluminum fabrication sites:

• New Energy & Automotive Lightweighting: Automated robotic high-speed, high-frequency pulse collaborative welding of aluminum alloy battery pack trays, crash beams, and all-aluminum vehicle frames.
• Rail Transit & Marine Shipbuilding: High-penetration, low-porosity continuous welding on medium-to-thick plates for high-speed train aluminum side wall seams and aluminum yacht decks.
• Architectural Formwork & Precision Hardware: Defect-free high-speed straight seam welding of high-precision aluminum formwork, where double pulse molding eliminates post-weld grinding entirely.

📋 EP500A Official Core Technical Specifications & Standard Configuration Matrix

This equipment exhibits distinct output characteristics across DC and pulse operating modes. Below is the detailed physical and electrical parameter matrix, rigorously unit-decoupled (adhering to factory calibrations):

🔧 Welbee Full-Digital Double Pulse Aluminum Welding Guide & Calibration

• Dynamic Wire Feeding Coupling Rule for Double Pulse “Fish-Scale” Beads: The EP500A achieves its automatic fish-scale bead formation through precise dynamic synchronization: fast feeding during strong pulse cycles and slow feeding during weak pulse cycles. In aluminum alloy processing, any mechanical feeding hesitation will destroy the bead appearance! You must use U-groove pressure rolls (to prevent crushing soft aluminum wire), ensure torch cables have no sharp bends, and install dedicated low-resistance Teflon carbon-core wire liners.
• USB Data Backup & Error Traceability Logic: As a high-end production line model, this equipment features a USB port. When a line welder experiences issues like “sudden arc spatter increase” or “rising porosity rates,” never arbitrarily adjust panel parameters! Quality engineers should immediately insert a USB drive to export the [Error History], analyze waveform logs to determine whether grid voltage fluctuations, unstable shielding gas flow, or poor ground contact caused the issue, and clone the validated 100-group process parameters across other units for standardized factory management.
• Mandatory Interlock Management for 500A Heavy Water-Cooling Systems: Because this machine is frequently paired with WTAW5000 heavy-duty water-cooled welding torches (supporting 500A continuous DC full load), when connecting an external cooling water tank, you must wire the water flow alarm control line into the welder mainboard. Under high-heat aluminum welding conditions, if coolant circulation stops, expensive genuine water-cooled power cables will burn through and leak within two minutes. Activating the smart interlock instantly shuts down the welding arc the moment coolant pressure is lost.
