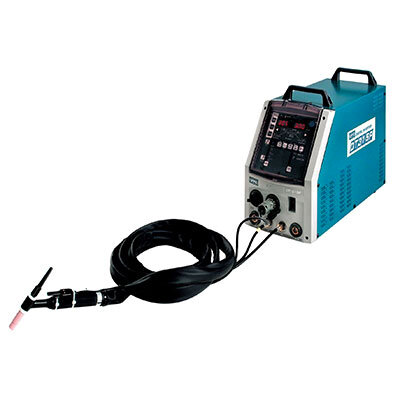

DT315P Inverter DC Pulse TIG Welder

OTC DAIHEN DT315P Full-Digital Inverter DC Pulse TIG & MMA Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN DT315P (Official Power Source Model: DT-315P) is a full-digital DC TIG welding machine custom-engineered for high-precision metal joining and mobile high-demand field operations. Pioneering an 80kHz ultra-high IGBT soft-switching inverter frequency, this equipment achieves nanosecond-level arc shaping and exceptional directional arc concentration. Within its 30kg ultra-lightweight chassis lies robust dual-power adaptability—operating seamlessly on standard workshop 3-phase 380V grids while switching automatically to single-phase 380V power when needed. Equipped with dual High-Frequency (HF) and interference-free Lift arc starting modes, the DT315P satisfies both continuous penetration demands on thick-wall piping and zero-EMI requirements in cleanroom microelectronics facilities.

🌟 Core Technical Advantages & Full-Digital Precision Selling Points

• 80kHz Inverter Frequency & Arc Stability: Far surpassing the 20kHz–40kHz frequency limits of standard inverters, 80kHz soft-switching technology eliminates DC TIG output current ripple. From a micro-arc of 4A up to 315A heavy output, arc directional stiffness is exceptional, drastically minimizing edge undercutting defects on precision joints.
• Dual HF / Lift Arc Starting (Zero EMI Mode): When operating inside cleanrooms crowded with precision medical instrumentation or multi-axis CNC machine tools, operators can engage Lift Start (contact ignition) mode with a single button press. Striking an arc without high-frequency, high-voltage pulses completely eliminates EMI risks that could crash sensitive communication motherboards.
• 100-Group Memory & Physical Data Lock: An integrated high-capacity industrial memory chip allows engineers to save up to 100 sets of validated pulse duty cycle and current curves tailored for various stainless steel and titanium pipe fittings. A physical front-panel lock prevents line operators from accidental parameter tampering.
• Long-Cable Voltage Boosting Technology: Relying on digital closed-loop feedback, even when site infrastructure or power construction layouts require extending welding cables over 50 meters, low-level algorithms automatically compensate line voltage drops to ensure terminal arc quality remains uncompromised.

🏭 Typical Precision Manufacturing & Confined Space Applications

Weighing only 30kg and featuring single/three-phase adaptability, the DT315P serves across high-end processing assembly lines:

• Aerospace & Specialized Boilers: NDT-grade single-sided welding with double-sided bead formation (pulsed TIG root pass) for stainless steel piping, nickel-based alloys, and titanium fittings.
• Semiconductor Vacuum Cavities & Clean Piping: Distortion-free, undercut-free precision pulse repair welding on ultra-thin metal structural components.
• Power Construction & Plant Infrastructure: Leveraging single-phase 380V adaptability to execute continuous, high-intensity seam welding from temporary power grids or suspended scaffolding baskets.

📋 DT315P Official Core Specifications Single/Three-Phase Matrix

This equipment supports single/three-phase voltage inputs and TIG/MMA operating modes. Below is the detailed five-column parameter matrix, rigorously unit-decoupled (adhering to factory archives):

🔧 80kHz Digital Inverter Welder Maintenance & Environmental Guide

• Wiring Discipline for Single/Three-Phase Switching (Critical): The DT315P features robust single/three-phase auto-adaptation. When relocating the machine from a workshop 3-phase 380V grid to field single-phase 380V power (typically wired across two live conductors), you must configure internal motherboard jumper pins per the manual instructions! Connecting single-phase high current without adjusting jumper jumpers causes digital detection circuits to trigger phase-loss faults or explode input rectifier bridge modules.
• Protecting 80kHz Inverters from Grinding Dust: Internal IGBT modules operate at an 80kHz high-frequency switching rate, generating intense electrostatic fields around high-voltage capacitor banks. In grinding bays filled with flying metallic sparks, airborne ultra-fine iron dust is readily pulled onto SMD component electrodes. Maintenance personnel must enforce a monthly low-pressure blow-out schedule using dry, oil-free compressed air (≤0.15MPa) to clear carbon and iron dust from cooling ducts.
• Low-Frequency DC Pulse Parameter Tuning: When executing root passes on stainless steel pipes requiring single-sided welding with double-sided bead formation, engage Pulse TIG mode with pulse frequency adjusted between 1Hz and 4Hz. Set background current between 15A and 25A (to maintain arc straightness without burn-through) and peak current between 70A and 110A depending on wall thickness. This low-frequency rhythm crystallizes the puddle uniformly; welders synchronize wire feeding with the pulse flashing rhythm (one dip per bright pulse) to achieve flawless, X-ray-grade weld seams.
