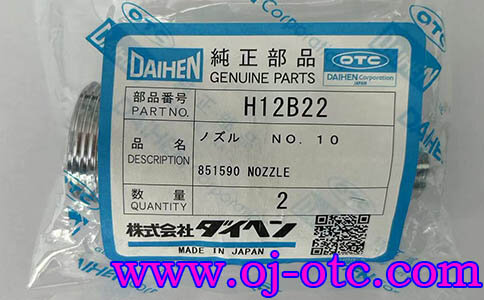

H12B22 Metal Nozzle

In-Depth Technical Analysis: Genuine OTC DAIHEN H21B22 (H12B22) No. 10 Heavy-Duty Metal Shielding Nozzle for AW-12 Water-Cooled TIG Torches

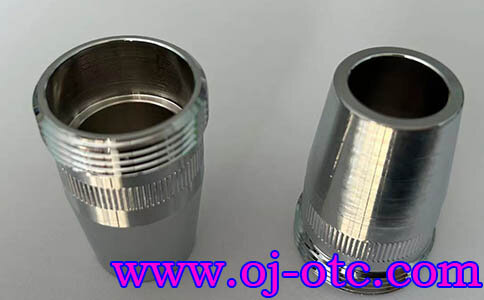

OTC DAIHEN H21B22 Heavy-Duty Metal Gas Shielding Nozzle (widely known in production shops as the “No. 10 metal nozzle” or “No. 10 impact-proof nozzle“) is the primary gas-directing consumable installed on the front end of high-power AW-12 automated water-cooled TIG welding torches. In automated robotic cells performing high-precision orbital welding on stainless steel pipes or lightweight aluminum EV battery trays, arc stability and gas purity directly determine radiographic inspection pass rates. When working in confined fixture spaces, ceramic nozzles often shatter from mechanical collisions or thermal stress. Engineered from heat-resistant alloy steel, the H21B22 delivers rugged structural rigidity that eliminates nozzle breakage and repeated maintenance shutdowns.

🔍 No. 10 Focused Gas Flow & Chrome-Plated Alloy Steel Advantages

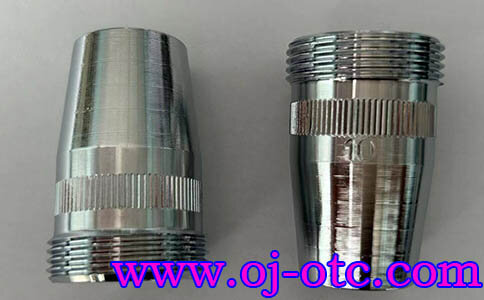

• No. 10 Focused Laminar Gas Compression: The nozzle housing is stamped with specification size 10. In AC/DC pulse TIG welding, the No. 10 orifice provides an optimal beam-compression effect. Compared to larger No. 12 nozzles, the No. 10 bore concentrates argon gas into a stiff, penetrating laminar gas curtain that protects small-to-medium weld pools from oxidation without turbulence.
• High-Strength Alloy Body with Chrome Anti-Spatter Plating: Forged from OEM heat-resistant alloy steel, the nozzle withstands mechanical friction and collisions against welding jigs during complex 6-axis robotic wrist rotations. Its polished chrome-plated finish prevents molten spatter from bonding to the outer wall, allowing quick mechanical wiping during routine cell maintenance.
• CNC-Machined Threads for 100% Concentric Mating: Internal mounting threads are precision-cut on Japanese CNC machines to mate perfectly with the AW-12 water-cooled torch body. This ensures 100% concentricity, eliminating lateral gas leakage or negative-pressure air suction at the thread interface to maintain laminar flow purity.

🛠 On-Site Replacement Guide & Preventing HF Arcing and Thread Seizure

• 🚨 Critical Electrical Protection Rule: Prevent Metal Nozzle Contact with Live Torch Parts! Because alloy nozzles are electrically conductive, they must remain insulated from live torch components by an OEM insulator ring (such as KE3001). **Before installing H21B22, electricians must verify that the insulator ring is free from cracks, fractures, or conductive carbon dust buildup!** Damaged insulators can cause high-frequency arc ignition voltage to arc from the metal nozzle wall instead of the tungsten electrode tip, damaging the nozzle and workpiece surface.
• Thread Seizure Prevention: Extreme thermal cycling between the metal nozzle and copper torch body can cause thread binding over time. **Never remove a nozzle by force while the torch body is hot!** Allow the water-cooling system to circulate until the torch cools, then remove it smoothly using an OEM nozzle wrench. Clean threads thoroughly with a brass wire brush before installing a replacement nozzle.
• Tungsten Electrode Stick-Out Calibration: The No. 10 focused gas curtain requires precise tungsten alignment. When used with OEM gas lenses, we recommend keeping tungsten electrode stick-out between 3mm and 5mm. Excessive stick-out extends beyond the laminar shielding zone, causing weld porosity and rapid tungsten oxidation.

• Complete AW-12 Water-Cooled Torch Spare Parts BOM: Reliable nozzle performance depends heavily on the condition of torch insulators and gas diffusers. To procure matching KE3001 insulating rings, collets, and collet bodies, check our technical catalog for full BOM diagrams to ensure accurate part selection.
