U2969K03 Torch Locking Nut

Original OTC DAIHEN U2969K03 Water-Cooled Torch Locking Nut

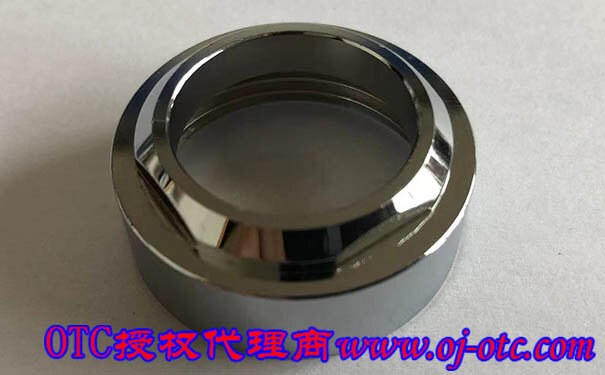

OTC DAIHEN U2969K03 Torch Nut (also known as locking retaining cap) is a critical consumable fastener for sustaining high-strength, continuous robotic welding quality. Precision-machined from specialized high-temperature alloy steel by OTC DAIHEN in Japan, this hardware component secures core internal consumables inside the torch head. It guarantees that contact tips, insulators, and shielding nozzles maintain absolute mechanical rigidity under extreme thermal cycling and automated vibration, ensuring efficient welding current transfer and stable laminar shielding gas coverage.

🔧 Exploded Diagram Position & Torch Compatibility

As illustrated in the official OTC DAIHEN exploded diagram above, the U2969K03 locking nut corresponds to Item No. 4. It is custom-engineered for the high-power RTW5000H water-cooled welding torch while maintaining downward structural compatibility with select RTW5000S torch assemblies. Precision thread engagement prevents accidental component loosening during rapid robotic articulation and acts as the primary mechanical barrier maintaining absolute contact tip concentricity (slight contact tip deviation causes arc wandering and severe weld spatter).

🌟 Core Technical Advantages & Replacement Guidelines

• Rigorous High-Precision Threading: Forged in Japan with ultra-tight machining tolerances, maintaining exceptional thread smoothness and clamping force even during frequent contact tip replacement cycles without thread stripping or seizing.
• Superior Thermal & Deformation Resistance: Operating continuously within the intense thermal radiation zone of 500A water-cooled arcs, inferior aftermarket nuts distort rapidly due to thermal expansion and contraction. The U2969K03 utilizes proprietary heat-resistant alloy steel to maintain structural integrity over extended service shifts.
• Maintenance & Replacement Tip: Although a rugged metal fastener, long-term exposure to high-temperature spatter adhesion and thermal baking eventually induces physical thread wear. When replacing contact tips, if you experience abnormal threading resistance or detect slight mechanical play after tightening, replace the U2969K03 nut immediately to prevent permanently damaging the torch gooseneck threads.
