In-Depth Technical Analysis: Genuine OTC DAIHEN H21B23 (H12B23) No. 12 Heavy-Duty Metal Shielding Nozzle for AW-12 Water-Cooled TIG Torches

OTC DAIHEN H21B23 Heavy-Duty Metal Gas Shielding Nozzle (widely referred to in production workshops as the “No. 12 metal nozzle” or “steel jacket“) is the frontline gas-directing consumable custom-engineered for classic OTC high-power AW-12 water-cooled TIG welding torches. In automated heavy manufacturing sectors such as aerospace aluminum structural welding, nuclear pressure vessel fabrication, and heavy military flange continuous TIG welding, torch nozzles endure intense thermal radiation from multi-hundred-ampere arcs. When operating in tight fixture spaces, conventional alumina ceramic nozzles frequently crack due to thermal shock or accidental mechanical collision. Forged from high-strength heat-resistant alloy steel, the H21B23 provides indestructible physical rigidity and produces an exceptionally stable laminar gas shield, eliminating nozzle breakage and production line stoppages.

🔍 Heat-Resistant Alloy Steel & Laminar Aerodynamic Flow Advantages

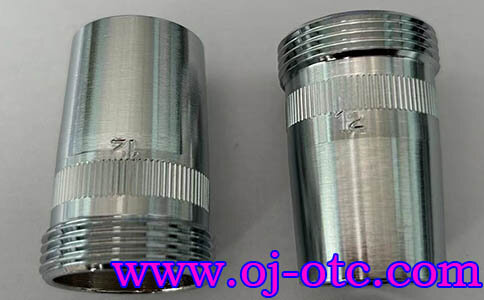

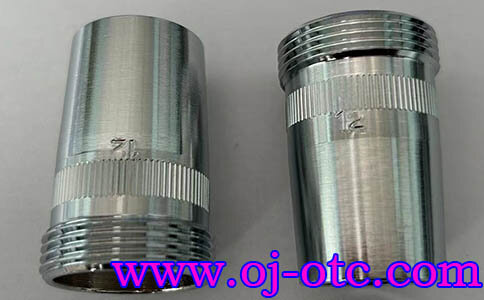

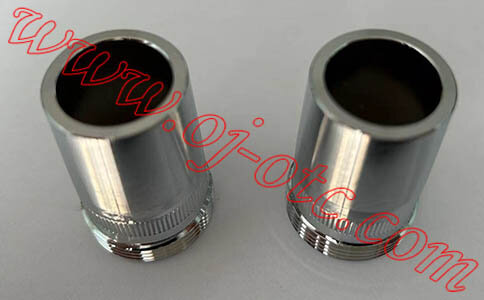

• Impact-Resistant Alloy Body with Anti-Spatter Chrome Coating: As shown in the side profile, the H21B23 is forged from OEM heat-resistant alloy steel. During robotic joint searching or tight fixture clearances, the metal nozzle withstands accidental scratching and collisions without cracking, shielding internal tungsten electrodes and gas diffusers. Furthermore, its exterior features a dense chrome-plated anti-oxidation coating that prevents molten spatter from adhering to the surface, allowing easy removal with a wire brush and keeping the torch front lightweight and clean.
• No. 12 Large-Bore Laminar Gas Curtain: The rear of the nozzle is stamped with the specification code 12, denoting a wide shielding gas coverage area for TIG welding applications. It generates a broad, high-density flexible laminar argon curtain that fully envelops large weld pools and tungsten electrode tips during high-current AC/DC pulse welding, preventing atmospheric contamination that causes weld porosity or oxidation.
• Precision Thread Alignment for AW-12 Water-Cooled Torches: The internal mounting threads are machined on Japanese CNC lathes to micro-meter tolerances, ensuring 100% concentric alignment with the copper torch body and insulating rings of the OTC AW-12 torch. This prevents lateral gas leakage at the threaded connection and concentrates argon flow directly toward the welding zone.

🛠 On-Site Installation Guide & Avoiding HF Arcing and Insulation Short Circuits

• 🚨 Critical Short-Circuit Rule: Ensure Insulating Rings and Torches are Undamaged! Because metal nozzles are electrically conductive, they must be isolated from live high-voltage torch components using an OEM insulating ring (such as KE3001). **Before installing H21B23, maintenance personnel must inspect the base insulator for cracks or carbon tracking!** If the insulator is degraded, high-frequency arc ignition voltage (reaching tens of thousands of volts) can bypass the tungsten tip and arc directly from the metal nozzle edge to the workpiece. This causes ignition failures and can damage the workpiece surface.
• Thread Seizure Prevention & Gentle Tightening: Differences in thermal expansion coefficients between metal nozzles and copper torch bodies can cause thread binding after high-temperature cycling. Never use brute force to remove a tightened nozzle while hot; wait until the torch cools and use an OEM nozzle wrench. Before installing a new nozzle, blow compressed air across threads to remove carbon debris and hand-tighten securely without over-torquing.
• Correct Application of Anti-Spatter Agents: Although H21B23 has an anti-spatter chrome coating, in extreme high-duty-cycle welding we recommend applying a thin layer of water-based anti-spatter fluid or nozzle gel to the inner wall every 4 hours. Note: **never let anti-spatter gel contaminate the tungsten electrode tip!** Contaminated electrodes release impurities during ignition, causing weld porosity and discoloration.

• Complete AW-12 Water-Cooled Torch Spare Parts BOM: Reliable nozzle performance depends heavily on the condition of torch insulators and gas diffusers. To procure matching KE3001 insulating rings, collets, and collet bodies, check our technical catalog for full BOM diagrams to ensure accurate part selection.
