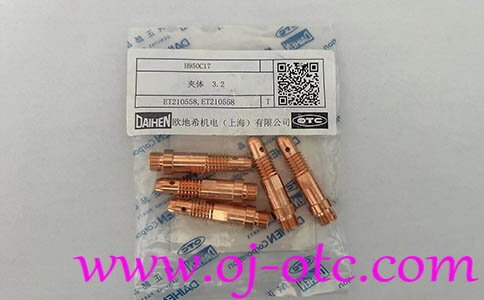

H950C17 3.2mm Collet Body

In-Depth Technical Analysis: Genuine OTC DAIHEN H950C17 3.2mm High-Conductivity Copper Collet Body for Heavy-Duty TIG Torches

OTC DAIHEN H950C17 High-Conductivity Copper Collet Body (3.2mm) is the essential front-end clamping consumable engineered for classic OTC heavy-duty water-cooled and gas-cooled TIG welding torches. In automated aluminum, stainless steel, and aerospace structural TIG welding, 3.2mm large-diameter tungsten electrodes are selected for continuous high-current deep penetration welding. Standard commercial brass or low-grade copper collet bodies lose their temper, soften, and oxidize under severe thermal radiation, causing poor electrical contact, tungsten slipping, and arc instability. Manufactured in Japan from high-purity heat-resistant copper, H950C17 provides maximum electrical conductivity and clamping elasticity, ensuring stable electrode centering and straight laminar shielding gas flow.

🔍 3.2mm Precision Clamping & High-Purity Japanese Copper Advantages

• High-Current 3.2mm Tungsten Electrode Capacity: Designed specifically for 3.2mm tungsten electrodes, H950C17 provides an expanded cross-sectional conduction area that carries high AC/DC pulse welding currents without overheating. Its robust clamping force prevents tungsten electrodes from slipping or shifting during multi-angle robotic welding trajectories.
• High-Purity Heat-Resistant Copper Alloy: Forged from OEM high-purity copper, H950C17 resists thermal annealing. Even after continuous high-duty-cycle welding at several hundred degrees Celsius, the collet body retains its mechanical elasticity without softening, bending, or turning black from oxidation.
• Precision CNC Axial Slitting: Symmetrical clamping slots are machined on Japanese CNC wire-cutting systems, ensuring uniform radial compression across the tungsten electrode when tightened into the torch head. Concentric clamping keeps the electrode tip centered along the torch axis, preventing shielding gas turbulence and arc deflection.

🛠 On-Site Collet Replacement Guide & Avoiding Tungsten Slippage and Torch Burnout

• 🚨 Critical Maintenance Rule: Never Over-Tighten Collets onto Mismatched Tungsten Electrodes! When installing H950C17, technicians must verify that the electrode diameter is exactly 3.2mm. **Never insert undersized 2.4mm electrodes into a 3.2mm collet body and force the back cap tight!** Brute-force over-tightening deforms the copper clamping jaws permanently, ruining collet concentricity and causing high-contact resistance that burns out the torch head. Always match collet body size exactly to tungsten diameter.
• Keep Collet Threads and Tapers Clean: Check the tapered clamping face and external threads of H950C17 before assembly. Carbon deposits or oxidation on the taper increase contact resistance by up to 50%, causing localized overheating. Clean mating surfaces with anhydrous alcohol and a soft brush.
• Check TIG Torch Back Cap O-Ring Seals: Ensure that the rear back cap O-ring is intact when tightening the collet body. Atmospheric air leaking past a damaged back cap seal will oxidize H950C17 and contaminate the weld pool.

• Complete OTC TIG Torch Front-End Consumables BOM: Stable TIG arc ignition requires matching front-end hardware. To procure compatible collets, gas lenses, ceramic nozzles, and back caps, check our technical catalog for full BOM diagrams to ensure accurate part selection.
