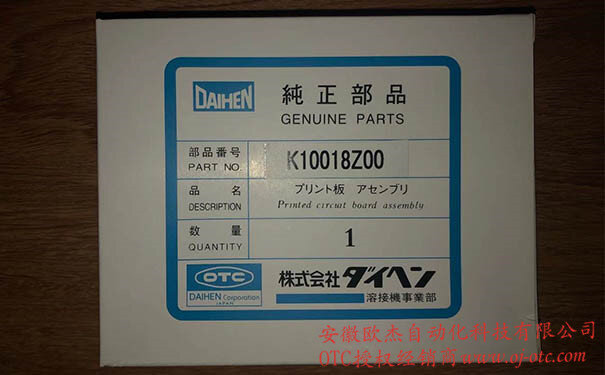

OTC Daihen Genuine Main Control PCB Board P7862W00 (Upgraded to K10018Z00)
P7862W00 (officially upgraded by OTC Daihen to K10018Z00) is an official OEM genuine main control circuit board engineered for classic OTC MIG/MAG gas-shielded welding machines. Acting as the central computing brain of the power source, it regulates welding voltage/current waveforms, wire feeder motor timing, and full-time safety protection (overcurrent, overvoltage, thermal monitoring). Please note: Legacy model P7862W00 is discontinued; OTC Daihen has released the advanced K10018Z00 as the official drop-in replacement. Both boards are 100% identical in mounting dimensions, connector definitions, and underlying control logic, allowing seamless plug-and-play substitution. Replacing an aged or faulty board with a genuine upgraded K10018Z00 eliminates hard arc starting, parameter jumping, and communication freezes.
⚙️ Technical Specifications
| Specification Attribute | Detailed Parameter |
|---|---|
| OEM Part Number | K10018Z00 (Official direct replacement for legacy P7862W00) |
| Product Type | Welding Machine Main Control PCB Board |
| Compatible Models | OTC MIG/MAG Gas-Shielded Welding Machine Series (Refer to equipment BOM manual) |
| Core Function | Waveform parameter regulation, wire feed timing, full-time protective safety logic |
| Quality Guarantee | 100% genuine brand-new OEM upgraded part; zero refurbished boards |
🔧 On-Site Installation & Upgrade Replacement Guide (Essential Reading)
- Seamless Model Substitution: Technicians need not worry when legacy P7862W00 is unavailable. K10018Z00 is the official OEM upgraded iteration. Its onboard firmware and ribbon cable connectors match the old board exactly. Simply swap boards without wiring modifications or secondary calibration.
- High-Voltage Capacitor Discharging: After disconnecting physical AC input power, main filtering capacitors inside the welder retain lethal high voltage. Wait 10 minutes and verify with a DC multimeter that bus voltage has dropped to 0V before removing the old PCB, preventing residual voltage from destroying core ICs.
- Strict ESD Antistatic Discipline: K10018Z00 contains sensitive microprocessors and SMT logic chips. Always wear a grounded ESD wrist strap when unpacking and installing the card, and never touch exposed connector pins or IC packages with ungrounded hands.
- External Short-Circuit Diagnostics: If the original P7862W00 burned out, inspect external wire feeder cables and torch trigger wires for insulation breakdown or chassis grounding before installing K10018Z00. If 380V/220V power penetrates 24V signal lines, the replacement PCB will burn out instantly upon power-up.
