K970B83 Wire Liner

In-Depth Technical Analysis: Genuine OTC DAIHEN K970B83 Low-Friction 1.6mm Wire Liner for WTCAW5002 Robotic Water-Cooled Torches

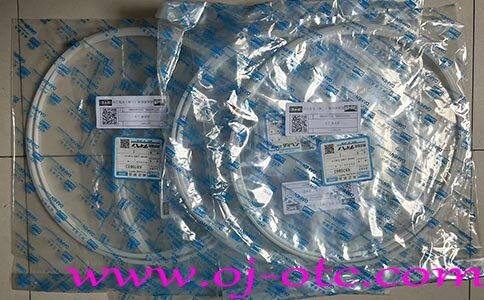

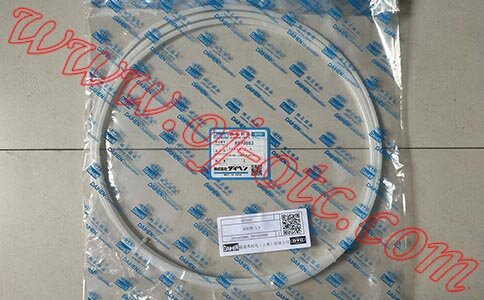

OTC DAIHEN K970B83 Spring Steel Wire Liner is the dedicated internal conduit engineered for classic OTC heavy-duty WTCAW5002 robotic water-cooled welding torches. In heavy structural steel and thick-plate automated MIG/MAG welding, 1.6mm solid welding wire is the primary specification used to achieve deep penetration and high deposition rates. However, rigid 1.6mm solid wire generates significant radial friction as it travels through multi-meter torch conduits and gooseneck curves. Using aftermarket liners with inaccurate internal bore tolerances can cause wire feeder motor stalling, gear slippage, or drive PCB burnout. Manufactured in Japan from spiral-wound high-carbon spring steel with an internal dry film lubricant, the K970B83 provides a smooth, low-resistance feeding channel that eliminates wire chatter, erratic arc behavior, and burnbacks.

🔍 Precision 1.6mm Bore Constraint & Self-Lubricating High-Carbon Steel Advantages

• Precision-Calibrated 1.6mm Bore Tolerances: Selecting a wire liner is not a matter of “bigger is better.” An oversized internal bore allows rigid 1.6mm wire to snake and buckle within the conduit, triggering erratic pulsing during robotic wrist rotations. Conversely, an undersized bore causes severe mechanical binding. K970B83 features tightly controlled inner diameter tolerances that support 1.6mm wire without binding or buckling, keeping wire exit alignment straight at the contact tip.
• High-Carbon Spring Steel with Dry-Film Lubrication: Engineered to withstand copper-plated wire friction, K970B83 is wound from premium Japanese high-carbon spring steel wire for superior lateral compressive strength. Its interior undergoes proprietary factory dry-film lubrication treatment to minimize drag, lowering motor load and preventing wire copper coating from scraping off and clogging the torch head.
• Concentric Alignment with WTCAW5002 Torch Housings: The liner tail is fitted with an OEM brass positioning nut and O-ring seal to mate concentrically with the rear block of WTCAW5002 water-cooled torches. This prevents shielding gas (argon/CO2 mixtures) from leaking or drawing in atmospheric air at the connection point.

🛠 On-Site Replacement Guide & Preventing Cutting Burrs and Dust Clogging

• 🚨 Critical Maintenance Rule: Use Dedicated Wire Cutters and Remove Internal Burrs! When trimming K970B83 to fit robotic cable assemblies, technicians often use standard wire pliers or angle grinders. **This is a major cause of wire feeding failures!** Crushing the liner during cutting collapses the spiral spring steel inward, forming sharp internal burrs that peel copper plating off 1.6mm wire as it passes through. Copper shavings will clog the contact tip within minutes or jam the feeder. Always cut liners with an abrasive cutting wheel and deburr the inner edge smooth with a needle file.
• Mandatory Compressed Air Purging During Spool Changes: Even genuine low-friction K970B83 liners accumulate metallic dust after feeding dozens of 1.6mm wire spools. Electricians **must purge the liner with clean, dry compressed air from the feeder end every time a wire spool is replaced**. This simple blow-out procedure clears accumulated metal dust and significantly extends liner service life.
• Gooseneck Curvature & Axial Alignment: Although K970B83 has excellent lateral flexibility, gooseneck bends in WTCAW5002 torches represent the highest friction zone. When installing a liner, ensure it sits firmly against the front gas diffuser seat without twisting stress.

• Complete WTCAW5002 Robotic Water-Cooled Torch BOM: Optimal wire feeding relies on the entire consumable chain. To procure matching 1.6mm contact tips, insulating collets, and water-cooled nozzles, check our technical catalog for full BOM diagrams to ensure accurate part selection.
