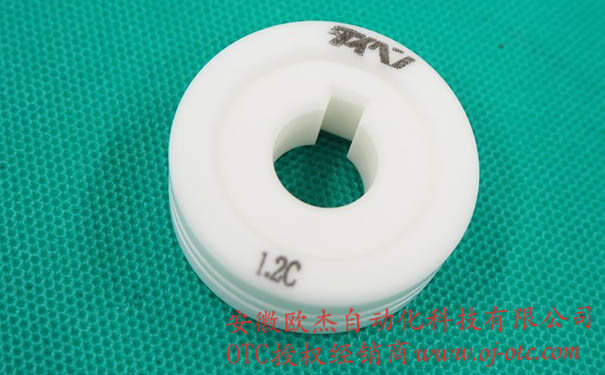

K970E24 Ceramic Wire Feed Roll

In-Depth Technical Analysis: Genuine OTC DAIHEN K970E24 Wear-Resistant Industrial Ceramic Wire Feed Roll for MIG/MAG Wire Feeders

OTC DAIHEN K970E24 Ultra-Wear-Resistant Industrial Ceramic Wire Feed Roll is the specialized wire drive roller custom-engineered for classic OTC MIG/MAG wire feeder assemblies handling high-hardness specialty wires. When feeding rigid stainless steel welding wire, hard alloy wire, or tubular flux-cored wire, conventional steel drive rollers suffer from severe abrasive wear, groove widening, or surface galling. Furthermore, steel rollers can crush thin-walled flux-cored wires or shave metallic particles off hard stainless wires, clogging liners and contact tips. Sintered from high-hardness, self-lubricating industrial ceramic, K970E24 provides exceptional groove wear resistance, positive non-marring wire grip, and extended operational life in heavy industrial welding lines.

🔍 Industrial Ceramic Sintering & Non-Marring Wire Propulsion Advantages

• High-Hardness Ceramic Specialist for Stainless Wire: Engineered from OEM refractory ceramic with a surface hardness far exceeding hardened alloy steel, K970E24 resists abrasive wear from rigid stainless steel and specialty alloy wires. Its groove geometry remains constant across thousands of hours of B2B industrial operation without widening or flattening.
• Gentle Propulsion for Flux-Cored Wires: Tubular flux-cored wire has a thin outer metal sheath that is easily crushed by standard steel V-groove rollers. K970E24 ceramic grooves provide smooth, uniform frictional grip that propels tubular wire without collapsing its cross-section or causing internal flux powder leakage.
• Self-Lubricating & Anti-Adhesion Properties: Industrial ceramic possesses natural self-lubricating characteristics that prevent cold welding or metal particle adhesion. Stainless steel or copper micro-shavings will not fuse to the ceramic groove, keeping the feeding channel clean and preventing contact tip clogging.

🛠 On-Site Roller Replacement Guide & Avoiding Ceramic Cracking and Wire Slippage

• 🚨 Critical Maintenance Rule: Never Strike Ceramic Rollers or Overtighten Retaining Nuts! Industrial ceramic offers supreme hardness and wear resistance but requires proper mechanical handling. **Never use steel hammers or wrenches to strike K970E24 onto drive shafts, and avoid excessive clamping torque on retaining nuts!** Impact force or uneven mounting torque can chip or shatter the sintered ceramic body. Slide the roller smoothly over the drive shaft keyway and tighten retaining nuts by hand or to OEM torque guidelines.
• Align Roller Grooves Exactly with Wire Guide Tubes: Verify that the ceramic roller groove aligns concentrically with inlet and outlet wire guide tubes. Misaligned guide tubes create lateral stress against the ceramic groove edge, causing edge chipping and wire feeding pulsation.
• Set Moderate Pressure Arm Clamping Tension: Ceramic rollers provide high natural friction. Set pressure arm spring tension just high enough to prevent wire slippage during a gloved hand-resistance check; excessive clamping pressure is unnecessary and stresses the wire feeder motor armature.

• Complete OTC Wire Feeder Drive Assembly Spare Parts BOM: Smooth wire feeding relies on the entire feeder drive mechanism. To procure compatible pressure rolls (such as K5439C00), wire guide tubes, pressure arms, wire liners, and feeder gearboxes, check our technical catalog for full BOM diagrams to ensure accurate part selection.
