L24260F00 / L23400F00 Robot Sequence Board

Original OTC DAIHEN L24260F00 / L23400F00 Robot Controller Sequence Board (UM415B)

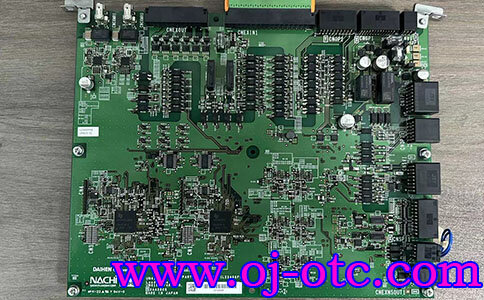

OTC DAIHEN L24260F00 (Legacy Model L23400F00 / PCB Silk-Screen UM415B) serves as the central logic control hub inside OTC DAIHEN FD19 series industrial robot control cabinets. As a dedicated OEM sequence timing board, it manages system timing logic distribution, core safety circuit monitoring, and critical external I/O signal processing. This logic board is vital for executing precise motion commands, maintaining safety interlocks, and guaranteeing instantaneous emergency stop protection across automated robotic welding cells.

⚠️ OEM Upgrade Notification: The legacy L23400F00 has been officially upgraded by OTC DAIHEN to the L24260F00. Both models are 100% compatible and interchangeable in physical dimensions, mounting points, and underlying pinout definitions, allowing direct, tool-free replacement without system software modification.

🌟 Core Technical Advantages & Safety Features

• Precision Sequence Relay Logic: Ensures uninterrupted, zero-latency robot motion execution, eliminating mechanical interference or system error halts caused by timing misalignment.
• High-Integrity Safety Interlock Loops: Integrated high-reliability safety relay logic architecture forcibly cuts servo power within milliseconds upon receiving emergency stop signals, protecting personnel and tooling.
• Physical Poka-Yoke Euro-Connectors: The rear of the PCB features high-density European-style DIN connectors that dock directly into the FD19 controller backplane, ensuring error-free installation.

📋 Technical Specifications & Compatibility Matrix

🔧 Sequence Board Replacement & Maintenance Guidelines

• ESD Protection & Power Isolation: Before removing or inserting PCBs, completely isolate the main power supply to the control cabinet and discharge servo capacitor residual voltage. Maintenance personnel must wear grounded ESD wriststraps.
• Inspect External Short Circuits: If the original board suffered electrical burn-out, use a multimeter to verify that external safety gates, sensors, and I/O wiring do not have ground faults or short circuits before installing the replacement board.
• Reject Refurbished & Jumpered PCBs: Avoid second-hand or repaired boards utilizing unauthorized jumper wires. Insist on 100% brand-new, genuine OTC DAIHEN OEM sequence boards to prevent sudden production downtime and safety hazards.
