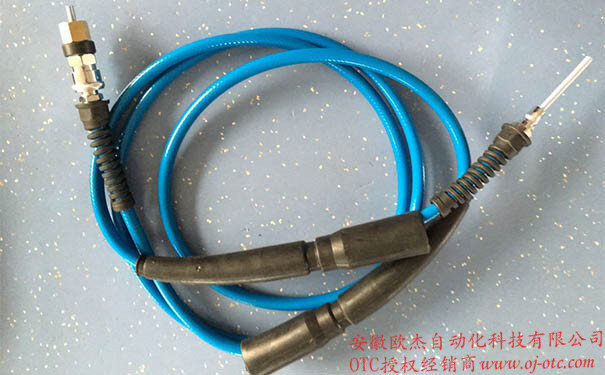

L10597D00 3m Wire Guide Conduit

OTC DAIHEN Genuine Robot Wire Guide Conduit L10597D00 (3m Extended Type) In-Depth Analysis

OTC DAIHEN L10597D00 Robot 3-Meter Extended Wire Guide Conduit (central external wire feeding liner) is a critical flexible transmission assembly connecting rack-mounted wire feeders to the inlet of robotic welding torches in automated Gas Metal Arc Welding (MIG/MAG/$ ext{CO}_2$) systems. Compared to the compact 1.5-meter conduit, the 3-meter physical length is engineered specifically for medium-span robotic workstations, cells incorporating external 7th-axis linear travel tracks, or workpiece positioners requiring extensive manipulator reach. As an authentic Japanese imported consumable, it provides the essential hardware foundation guaranteeing stable arc ignition and smooth wire feeding during high-deposition welding operations.

🌟 Low-Resistance Internal Architecture & Dual-Layer Protection

As illustrated in the solid copper quick-release connector close-up above, the L10597D00 incorporates proprietary Japanese OEM fluid and frictional engineering technologies to ensure that wire feeding resistance over a 3-meter span remains well within strict operational safety margins.

• Precision Low-Friction Smooth Lumen: Over a 3-meter trajectory, wire feeding friction multiplies rapidly due to gravity and conduit curvature. The internal lumen of L10597D00 utilizes an OEM specialized wear-resistant polymer lining with an ultra-low friction coefficient. This allows solid or flux-cored welding wire (such as 1.2 / 1.4 / 1.6mm diameters) to glide effortlessly at high feeding speeds of 18-28 meters per minute, eliminating arc stutter, voltage fluctuations, and coarse spatter caused by wire micro-vibration.
• Heavy-Duty Thickened PUR Outer Sheath: The outer protective layer is fabricated from custom high-rigidity polyurethane (PUR) elastomeric polymer. When subjected to continuous exposure to workshop cutting fluids, weak alkaline emulsions, and hot weld spatter, the sheath resists embrittlement, cracking, or thermal melting. This multi-layer composite construction ensures exceptional flex-fatigue life during continuous, multi-axis manipulator twisting. Explore related OEM wire guide lengths in this series: ▪️ Long-Reach 5m Wire Guide: OTC Genuine 5m Wire Guide L10597E00 Technical Display
  ▪️ Compact Standard 1.5m Wire Guide: OTC Genuine 1.5m Wire Guide L10597B00 Technical Display

🔧 Field Routing & Troubleshooting Guide for 3m Conduits

• Establish Mandatory Reverse Air-Blowing Protocols: Over a 3-meter path, utilizing inferior welding wire with poor copper plating generates significant quantities of copper and iron micro-shavings. **As these hard metallic shavings accumulate inside the lumen, feeding resistance escalates rapidly until the control cabinet triggers repetitive “Wire Feeder Overload (Err 4020)” alarms.** Maintenance protocol: disconnect the conduit at both ends every two weeks and apply high-pressure compressed air from the torch end toward the wire feeder end to purge metallic shavings completely.
• Strictly Prohibit Bending Radii Under 250mm: A 3-meter conduit provides ample routing length. When inserting into robot dress packs or suspending above axes 3 and 4, **technicians must maintain generous, natural flowing loops**. Never cinch the conduit into sharp angles using cable ties for visual neatness. Localized sharp bends create high-friction thermal hot spots that wear through the lining within weeks and cause arc ignition stuttering and incomplete penetration faults.
• Inspect Quick-Connect O-Rings to Prevent Gas Leaks: When docking the 3-meter conduit with the torch rear receptacle, verify that OEM rubber sealing O-rings are intact. Loose connections allow air entrainment into the shielding gas stream, diluting shielding gas and causing porosity defects on critical weld seams.

• Expedited Worldwide Consumable Dispatch: For automated manufacturing plants experiencing sudden conduit rupture or wire feeding halts, Anhui Oujie Automation provides rapid international courier dispatch directly from stock to ensure uninterrupted production.
• Complimentary Process Tuning Support: Procurement clients receive online engineering diagnosis from welding specialists to assist with wire feeding pressure alignment and automated reamer station blowing parameter setup.
