L11608B02 Insulating Flange

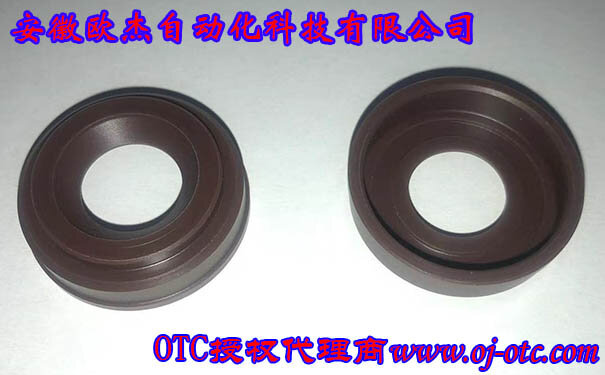

Original OTC DAIHEN L11608B02 Robot Wrist Insulating Flange

OTC DAIHEN L11608B02 Insulating Flange serves as an indispensable electrical safety barrier in automated robotic welding systems. This high-precision replacement component installs directly between Robot Axis 6 (the wrist mounting flange) and external heavy-duty welding torches or collision sensors. Its foundational mission is to establish an absolute physical high-impedance isolation layer when hundreds of amperes of welding current (DC/AC) discharge at the torch tip. It prevents 100% of reverse electrical loop current from traveling back through the mechanical arm body, acting as a silent guardian that prevents electrical burn-outs across intelligent control cabinets and high-value mechanical arm assemblies.

🔍 Secondary Loop Hazards & Insulating Flange Core Protection Principles

• Eradicating Electrical Bearing Corrosion: Without installing the L11608B02 flange—or when relying on degraded counterfeit flanges—welding current seeks the path of least electrical resistance when workpiece grounding is compromised, traveling directly through precision robotic reduction gears and joint bearings. This triggers instantaneous electrical erosion (fluting and pitting) across bearing steel balls, accelerating mechanical wear that causes robotic arm vibration, abnormal gear noise, and total reduction gear failure.
• Safeguarding Absolute Servo Encoders: Reverse current loops also discharge directly into Axis 5 and Axis 6 motor absolute value encoders via grounding lines, erasing factory zero-point calibration data or instantly destroying servo amplifier logic boards. The genuine L11608B02 flange utilizes high-density, heavy-duty insulating polymer composites with outstanding dielectric strength to physically sever this destructive reverse electrical path.
• Rigorous Mechanical Geometric Tolerances: As the primary mechanical hub articulating the welding torch, flange precision requirements are extreme. Genuine Japanese OTC DAIHEN manufacturing standards maintain rigorous mechanical flatness and hole concentricity, guaranteeing that TCP (Tool Center Point) alignment never deviates due to structural flex during rapid, continuous 3D robotic wrist flipping.

🔧 Field Inspection & Surface Carbonization Arcing Prevention Guide

• Prevent Spatter from Forming Conductive Bridges: Welding cells generate high volumes of molten metal spatter. Over extended operating shifts, fine iron and copper dust accumulate along the exposed step edges of the L11608B02 flange. If left uncleaned, this metallic dust forms a continuous conductive bridge across both sides of the flange disk, completely bypassing its electrical isolation properties. We recommend cleaning the flange circumference thoroughly during routine maintenance using stiff bristle brushes and dry compressed air.
• Immediate Replacement of Carbonized Flanges: If accidental spatter short-circuiting or high-voltage arcing occurs, the outer circumference of the polymer flange can get scorched, leaving a black carbonized track. Because carbon is electrically conductive, these tracks cause recurrent controller grounding alarms. Never force continued operation; dismantle and install a brand-new L11608B02 immediately to prevent expanding electrical faults.
• Strict Fastener Insulation Protocols: Mounting bolts attaching the flange assembly require dedicated OEM insulating bushings and washers. Always tighten bolts uniformly in a cross-pattern to official OTC DAIHEN torque specifications. Never omit insulating bushings during assembly, as exposed bolts will immediately act as new electrical leakage conductors.
