L21730X00 Robot Controller Circuit Board

Original OTC DAIHEN L21730X00 Robot Controller Circuit Board (UM351D)

OTC DAIHEN L21730X00 Printed Circuit Board is a high-precision electronic assembly serving as the central control, signal relay, and communication architecture within industrial robot controllers. Imported directly from Japan, this premium electronic hardware governs underlying motion calculation commands across all robotic axes and manages high-speed external I/O signal exchanges. Its electrical response accuracy and superior anti-interference performance form the foundational core required to maintain continuous, high-density, heavy-duty welding operations without unscheduled error halts.

🔍 Identifier Clarification: DAIHEN, UM351D, and NACHI Technical Background

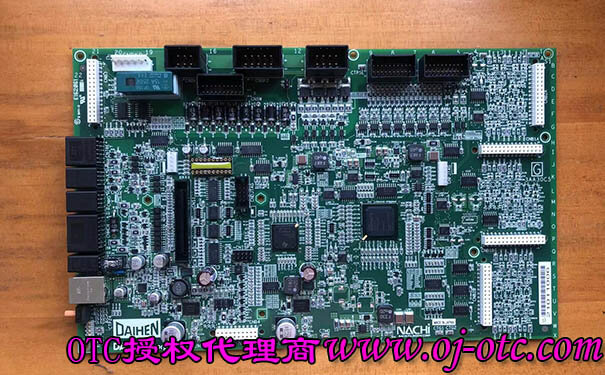

As shown in the close-up above, the PCB surface features unique silk-screen identifiers, displaying DAIHEN corporation UM351D, PART NO. L21730X / L21730X05, alongside the official NACHI (Nachi-Fujikoshi) brand logo. This multi-branding originates from historic hardware sharing and technical OEM collaboration between Japanese robotic manufacturers.
⚠️ Procurement & Replacement Alert: Although physical boards display NACHI branding and maintenance manuals may reference internal version L21730X05 or circuit code UM351D, the official standardized ordering part number in the OTC DAIHEN spare parts database is universally designated as L21730X00. Whether installed in OTC DAIHEN controllers or compatible NACHI systems, these variations are 100% physically, electrically, and firmware interchangeable for direct, drop-in replacement.

🌟 Core Technical Advantages & Multi-Layer Protection

• High-Density Multi-Layer PCB Layout: Manufactured using top-tier multi-layer PCB routing with embedded core signal channels. This structure provides robust shielding against electromagnetic interference (EMI) generated by high-frequency arc initiation, alternating magnetic fields, and high-power servo drives, guaranteeing pure pulse transmission.
• Long-Life Industrial Components: Populated with high-temperature, high-voltage resistant capacitors, logic ICs, and optocoupler isolation modules. It easily withstands the enclosed, dust-prone, and elevated thermal conditions inside welding control boxes without component thermal degradation.
• High-Speed Optoelectronic Fault Isolation: Features responsive optoelectronic isolation circuits across external connector loops. In the event of external short circuits or grounding faults, it instantaneously interrupts the localized protective circuit, physically preventing voltage surges from reaching CPU control layers.

🔧 Field Replacement & ESD Prevention Guidelines

• Mandatory ESD (Electrostatic Discharge) Precautions: The L21730X00 contains highly sensitive integrated circuits. Before unpacking and handling the PCB, maintenance technicians must wear a grounded ESD wriststrap or discharge bodily static against a grounded metal surface. Never touch chip pins or edge connectors with bare hands, as static discharge can cause permanent IC micro-fractures that result in startup boot failures.
• Complete Power Isolation Before Assembly: Always disconnect main factory input power to the control box and allow several minutes for capacitor discharge before unplugging wiring harnesses. When reconnecting aviation connectors and sockets, verify harness labels and ensure mechanical locking clasps are fully engaged to prevent electrical arcing from poor contact.
